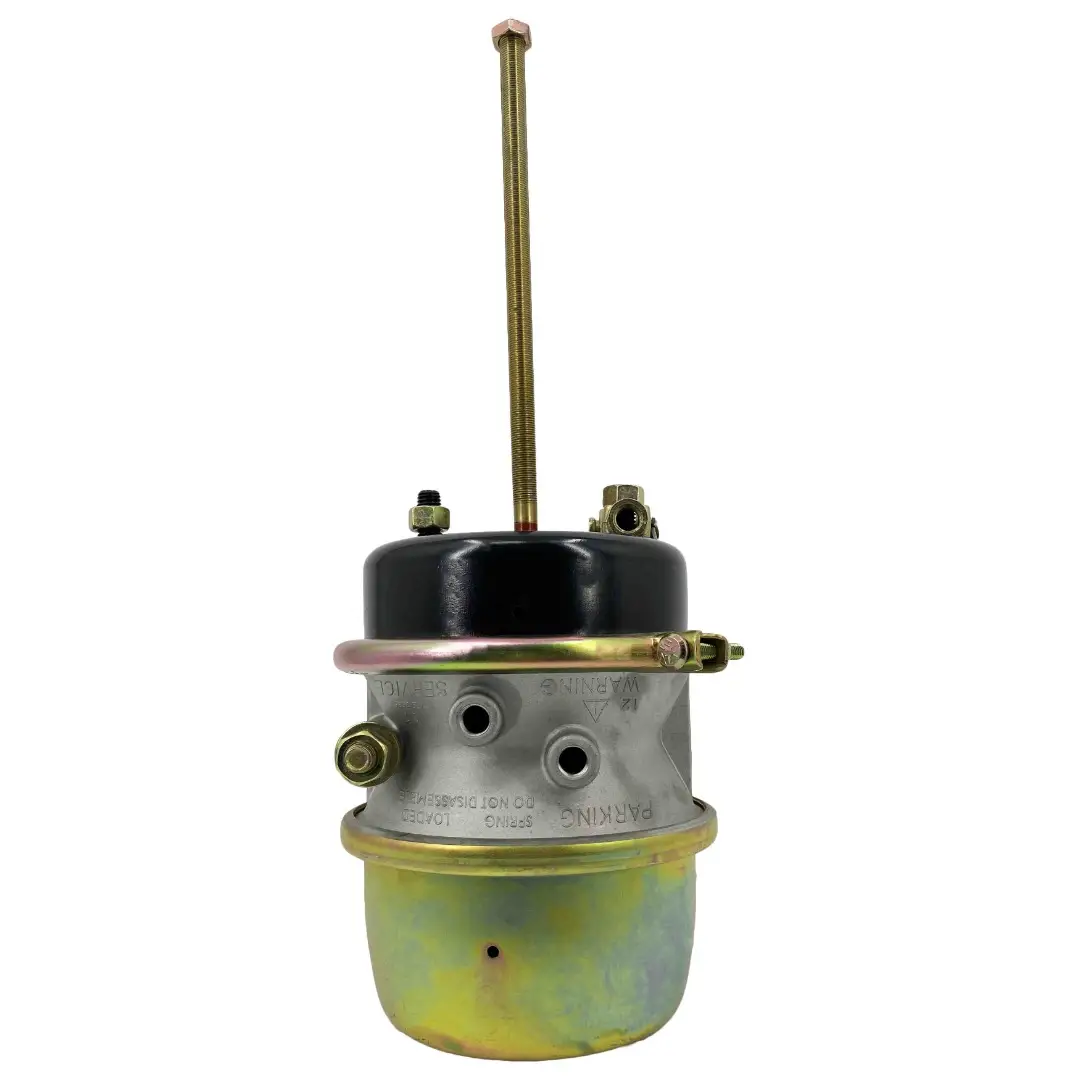

Air Brake Chamber Replaces 800833

Air Brake Chamber Replaces 800833

Description : Air Brake Chamber Type 3636

Part Number : TR3636C (inactive)

Click to see price
N/A
Bendix: 800833
Euclid\Meritor: E-BC3636C
Haldex: GC3636, 3636001, 53636001, MA15479
Actuator Type Size: 3636
Stroke Type: Standard
Available Stroke: 3", 76mm
Length from mounting bracket to end of Spring Housing: 10-11/16", 272mm
Length of Piggyback: 8", 203mm
Dimension at rolled Spring Housing flange: 9-1/8", 231mm
Dimension at Service Clampband: 11-5/16", 286mm
Pushrod Length from face of Service Housing: 9"
Weight: 26.0 lbs. , 11.8 kg.
