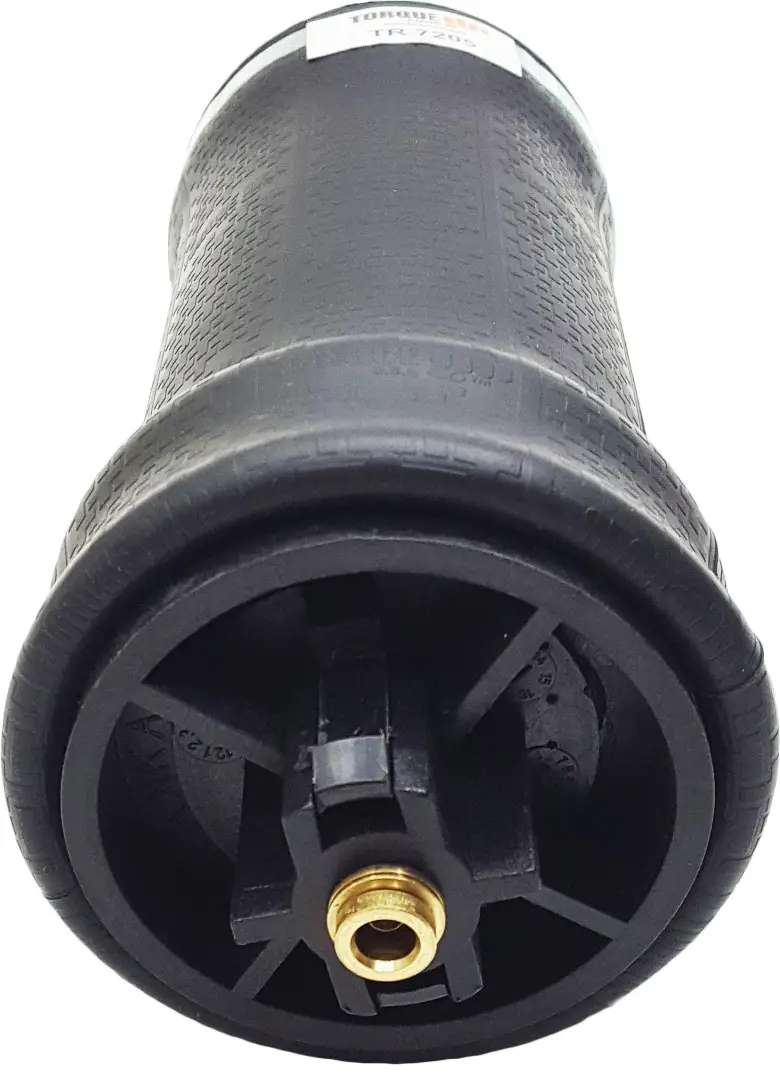

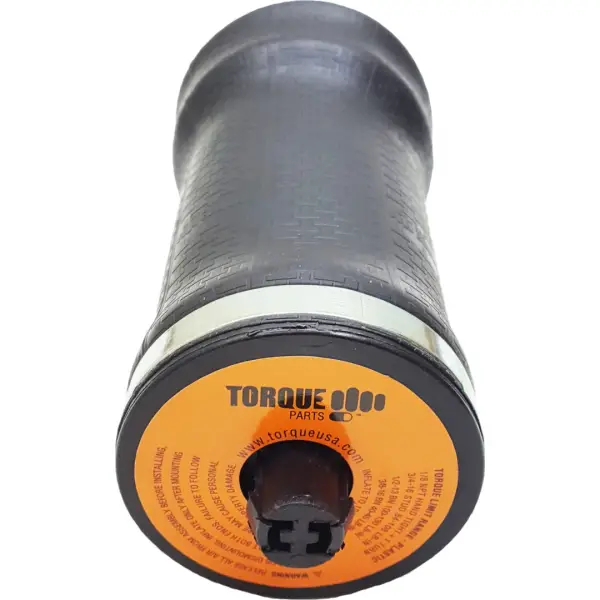

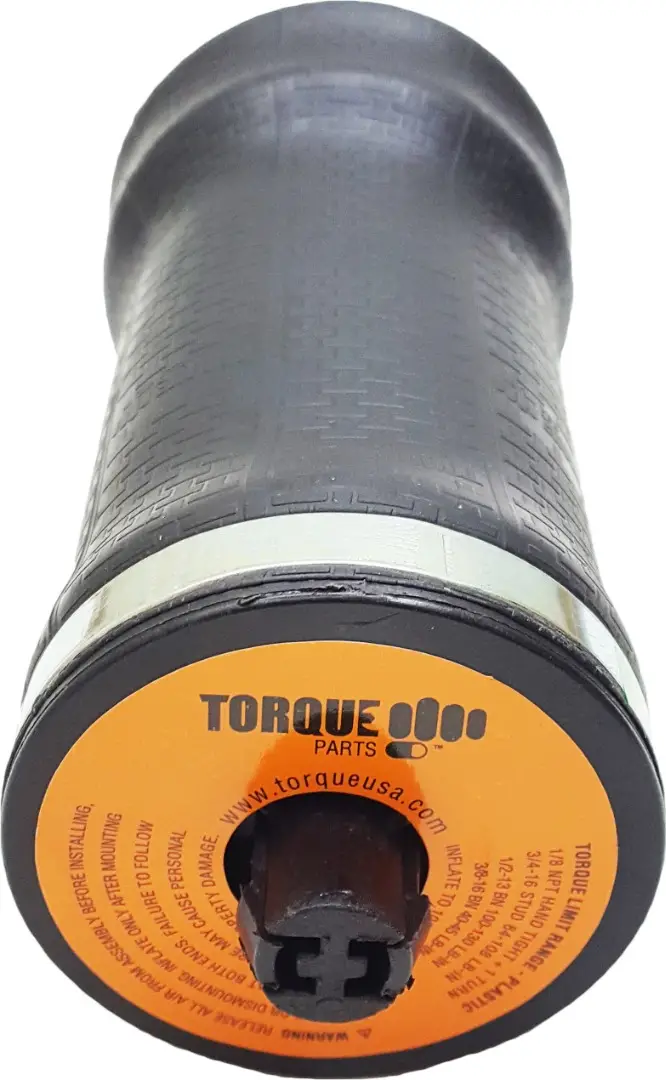

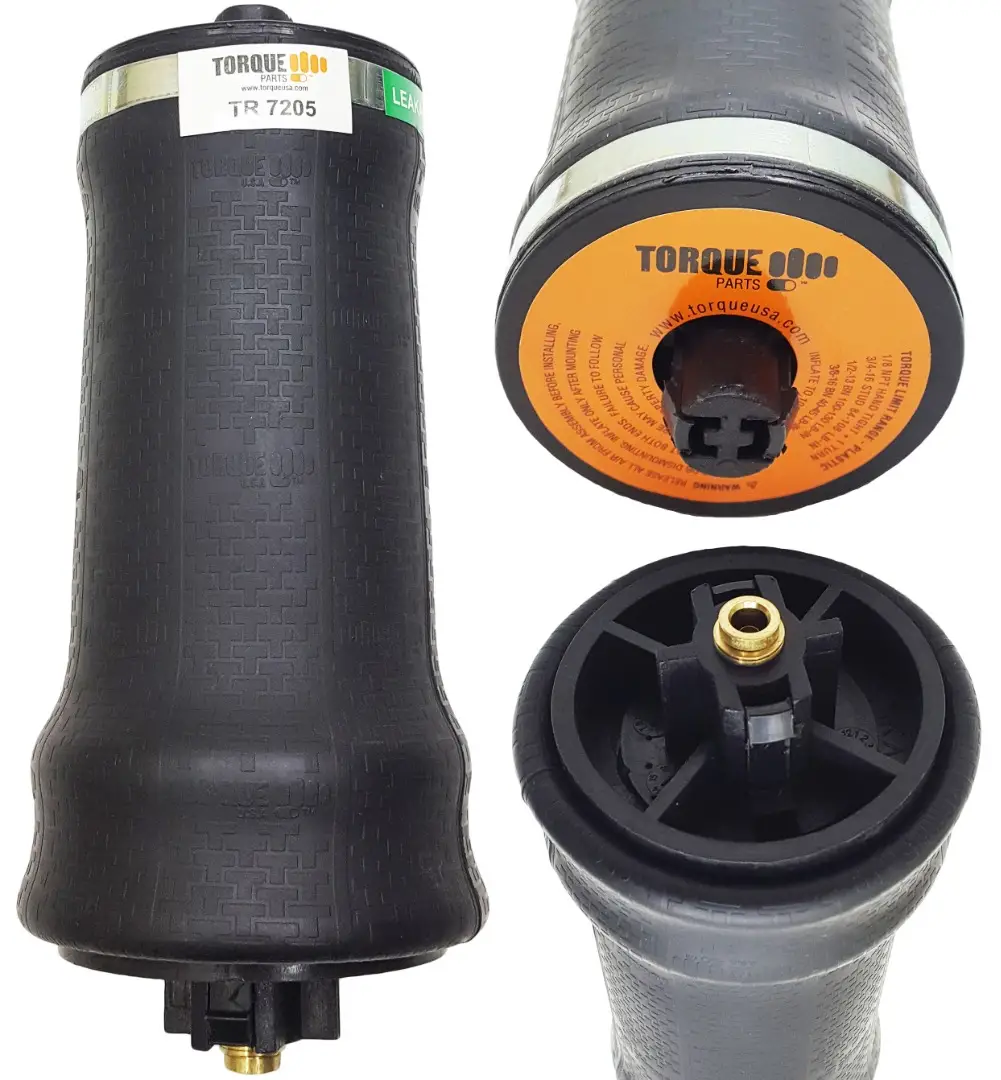

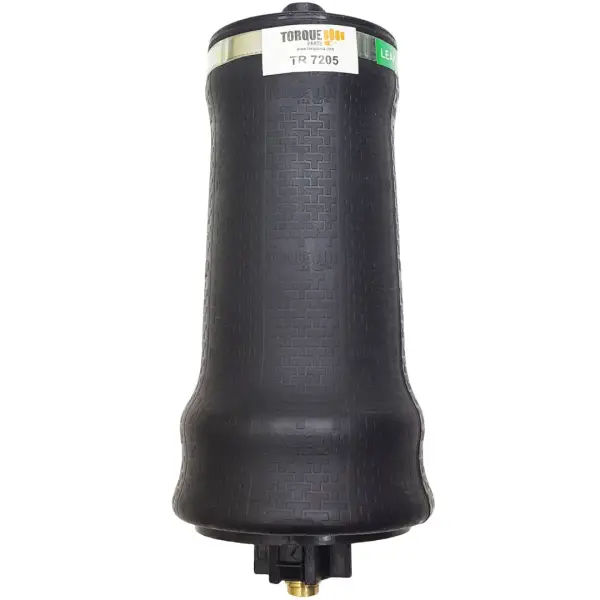

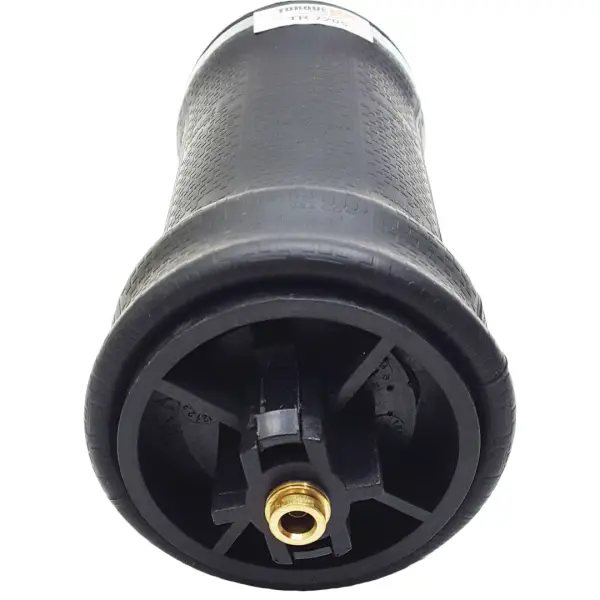

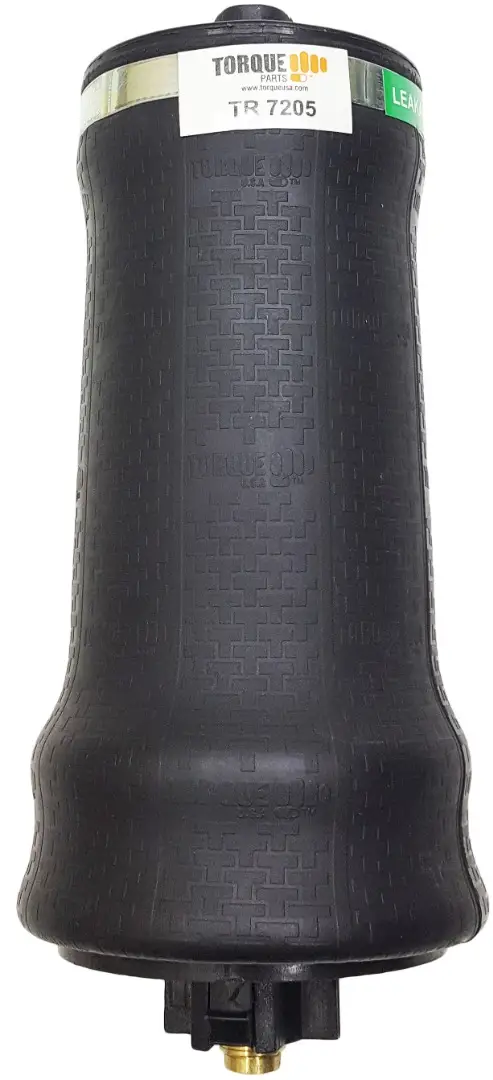

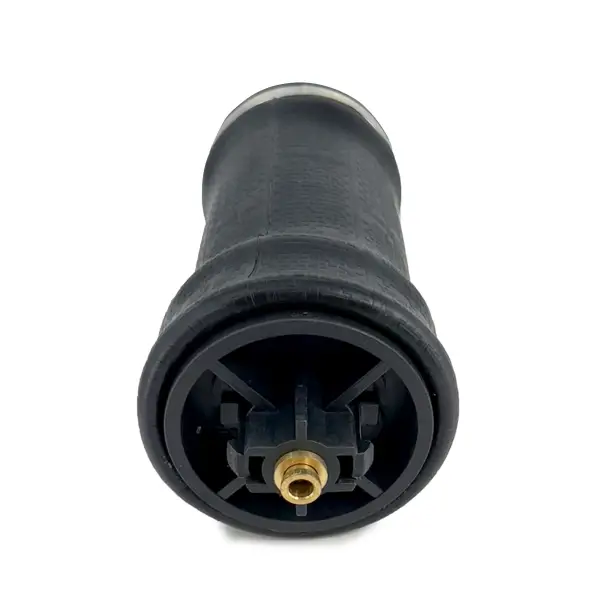

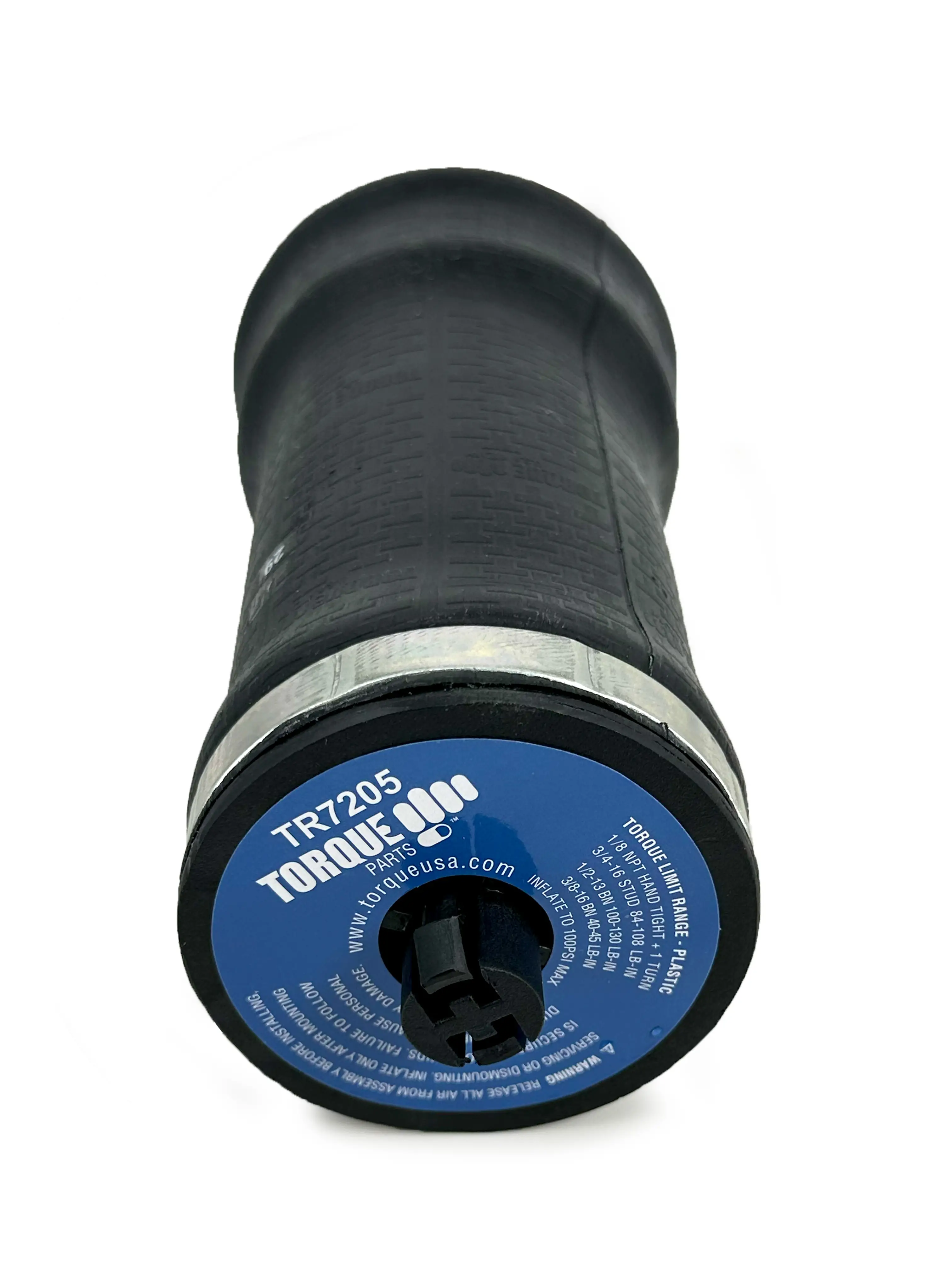

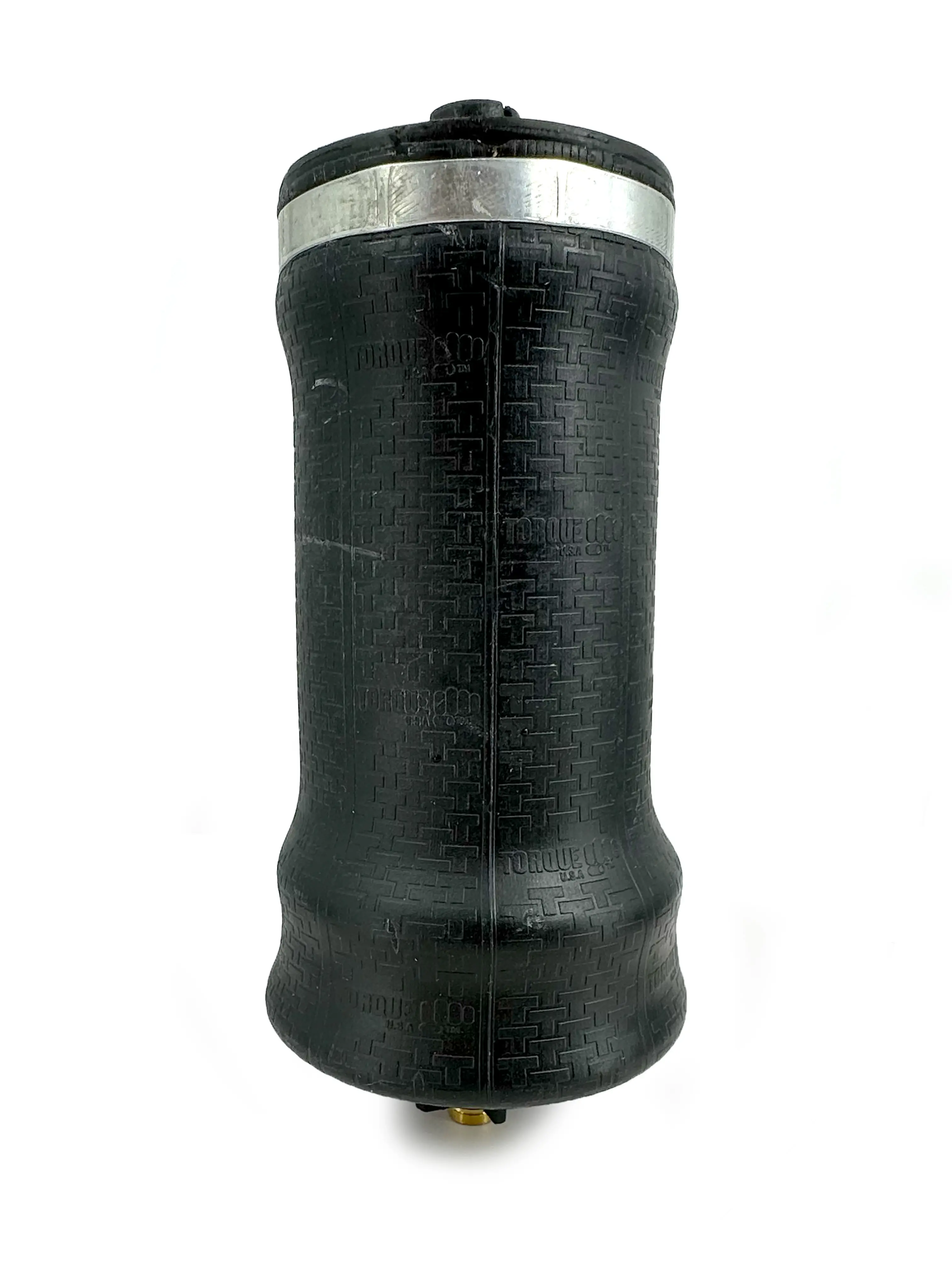

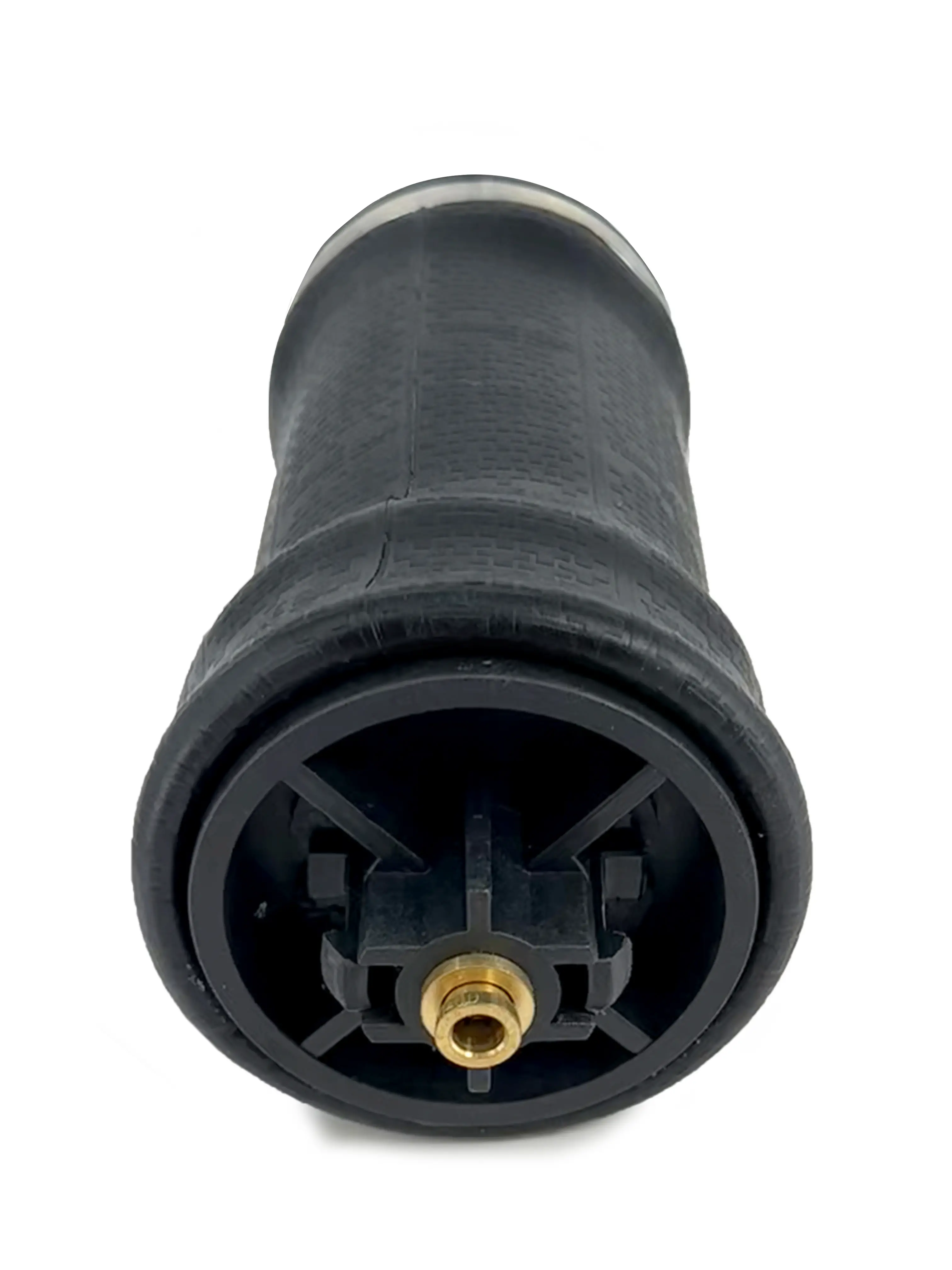

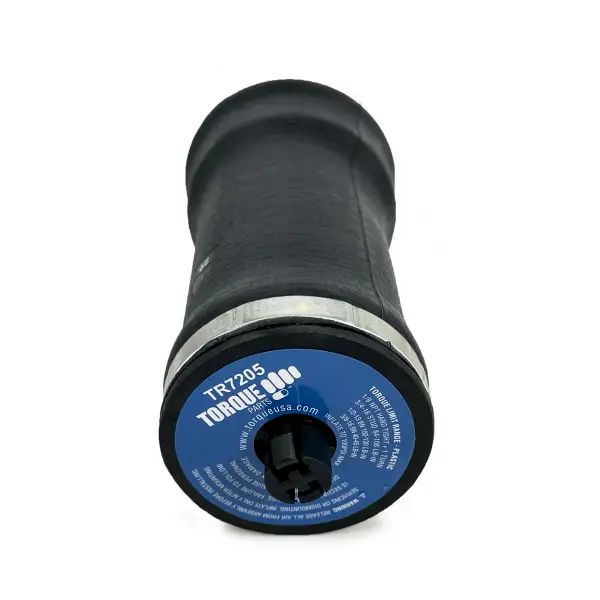

Cabin Air Spring for Freightliner Replaces 184-0977-000, 7205

Description : Cabin Air Spring for Freightliner Trucks

Part Number : TR7205

Cabin Air Spring for Freightliner Replaces 184-0977-000, 7205

Click to see price

Cabin Air Spring for Freightliner/Western Star Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70-7205
Sampa	500.909-01
Alliance	ABP N32 027205
Contitech	67638, SC31Y205, SC31-Y205
Firestone	7203, 7205, W023587205, W02-358-7205, W023777205, W02-377-7205
Freightliner	1840977000, 1852651000, 1873178000, 18-73178-000, 660033406, 66003-3406
Goodyear	1S5175, 1S5-175
Volvo	660033406

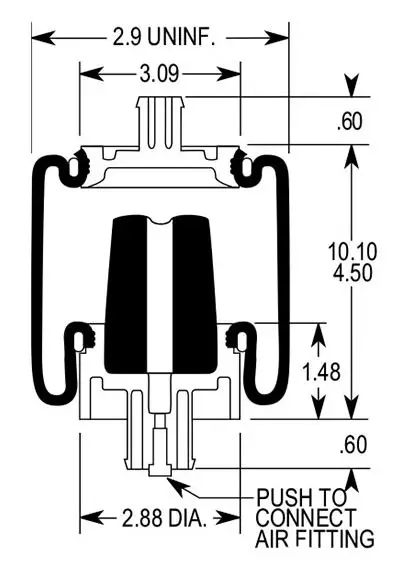

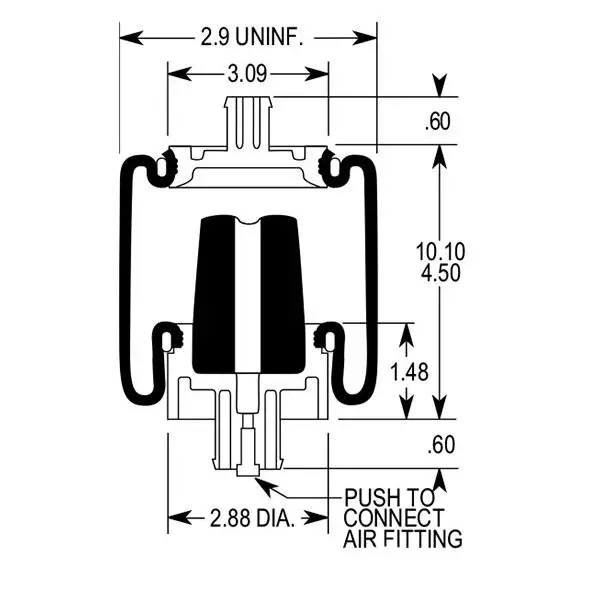

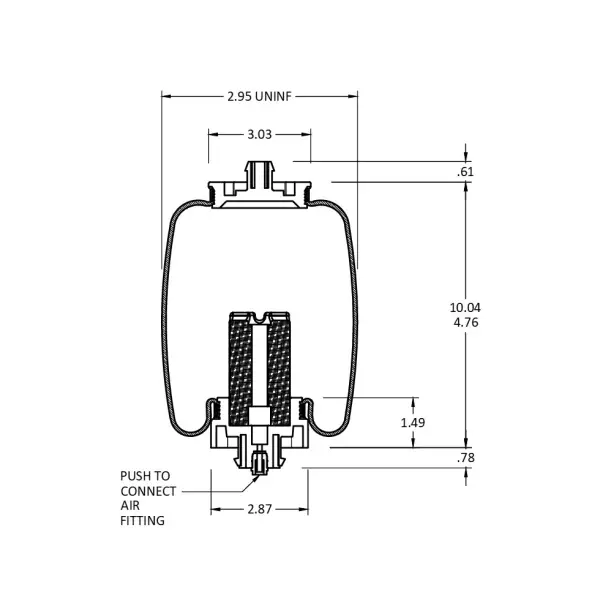

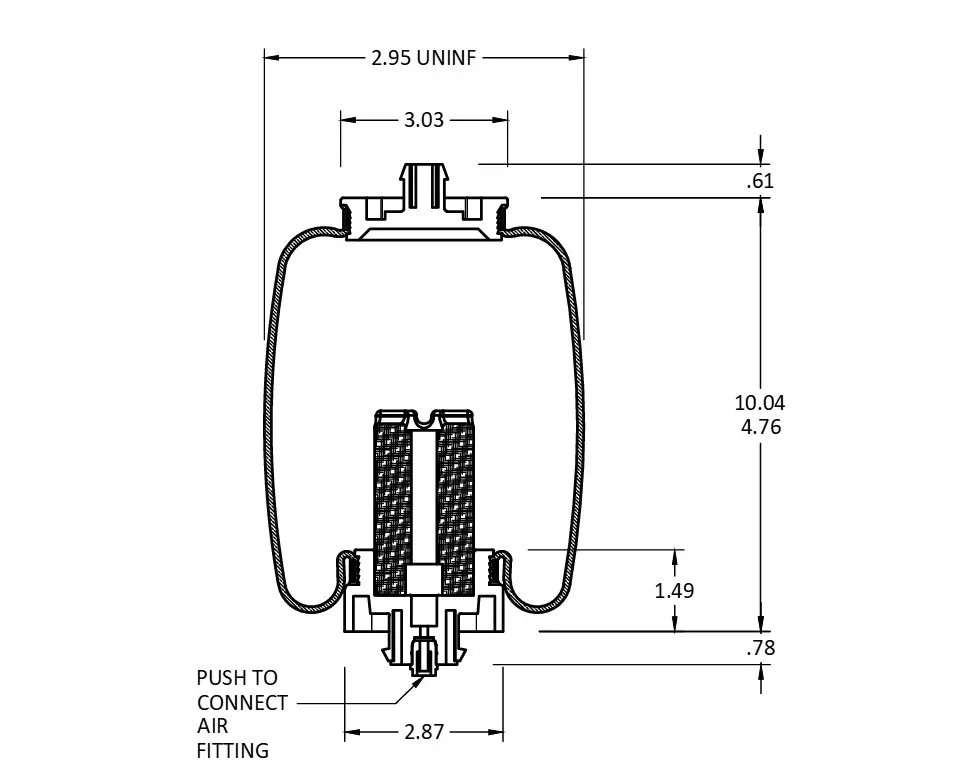

Locating Pin Height	0.61-0.78"
Air Inlet	Push-to-connect air fitting
Design Height	8.5-10.2"
Piston Diameter	2.87"
Minimum Jounce Height	4.76"
Extended Height	10.04"
Compressed Height	4.76"
Weight	1.23 lbs
