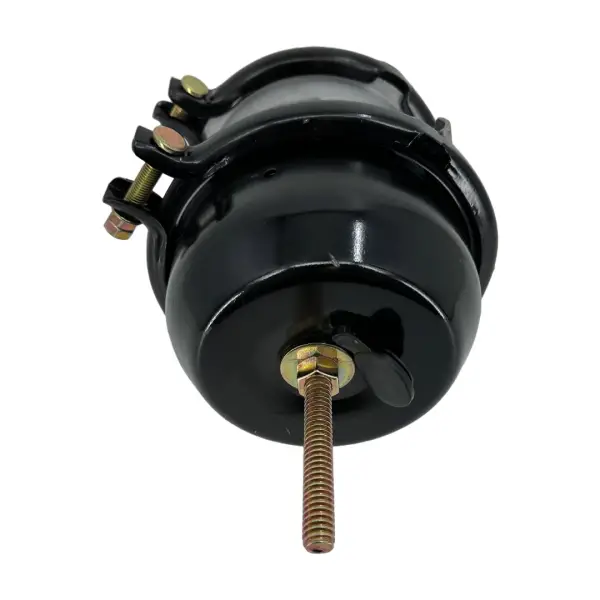

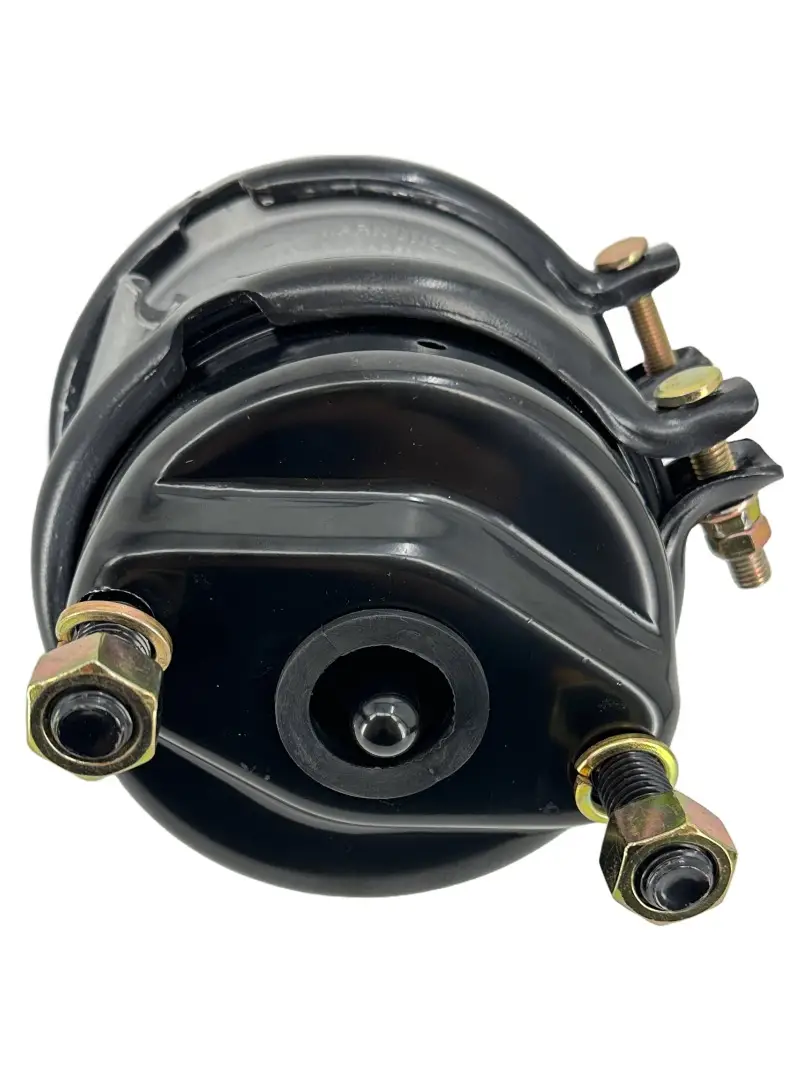

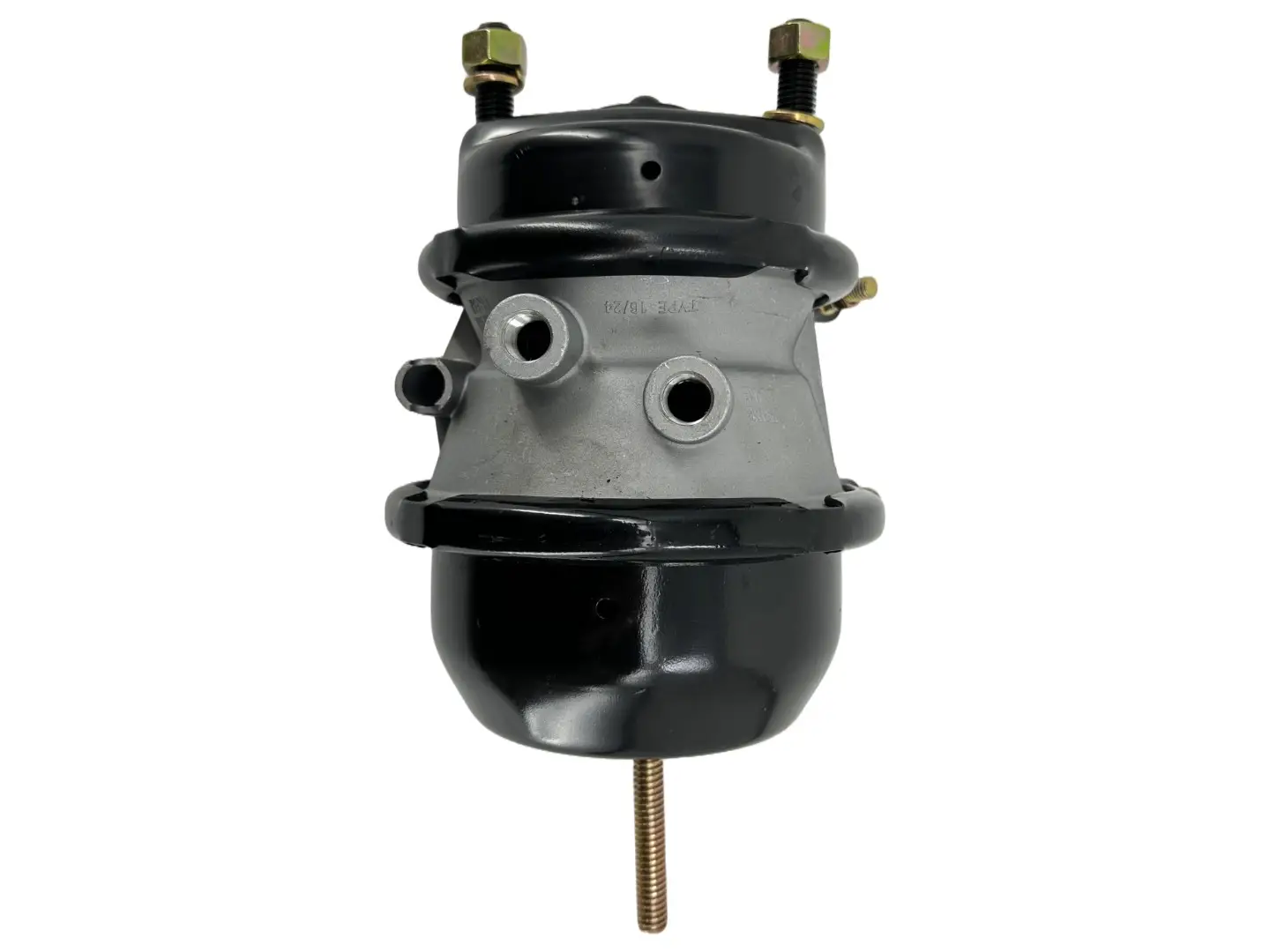

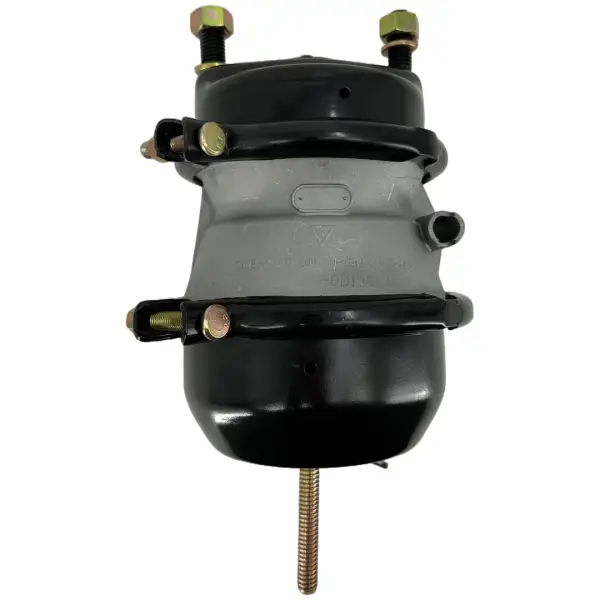

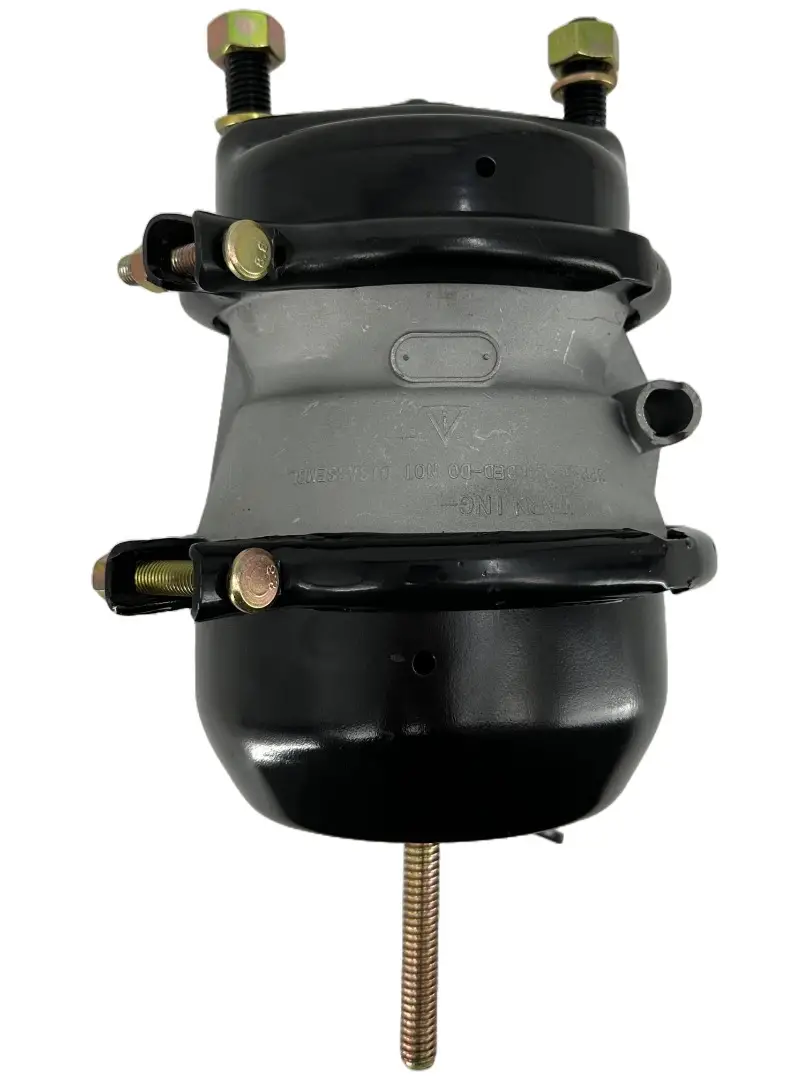

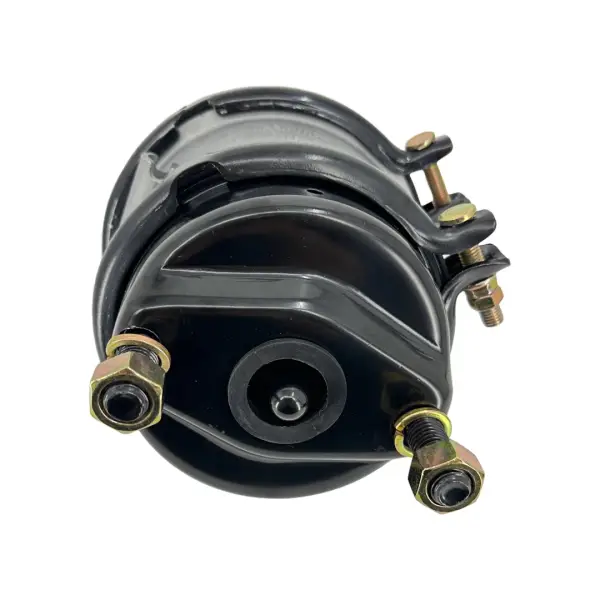

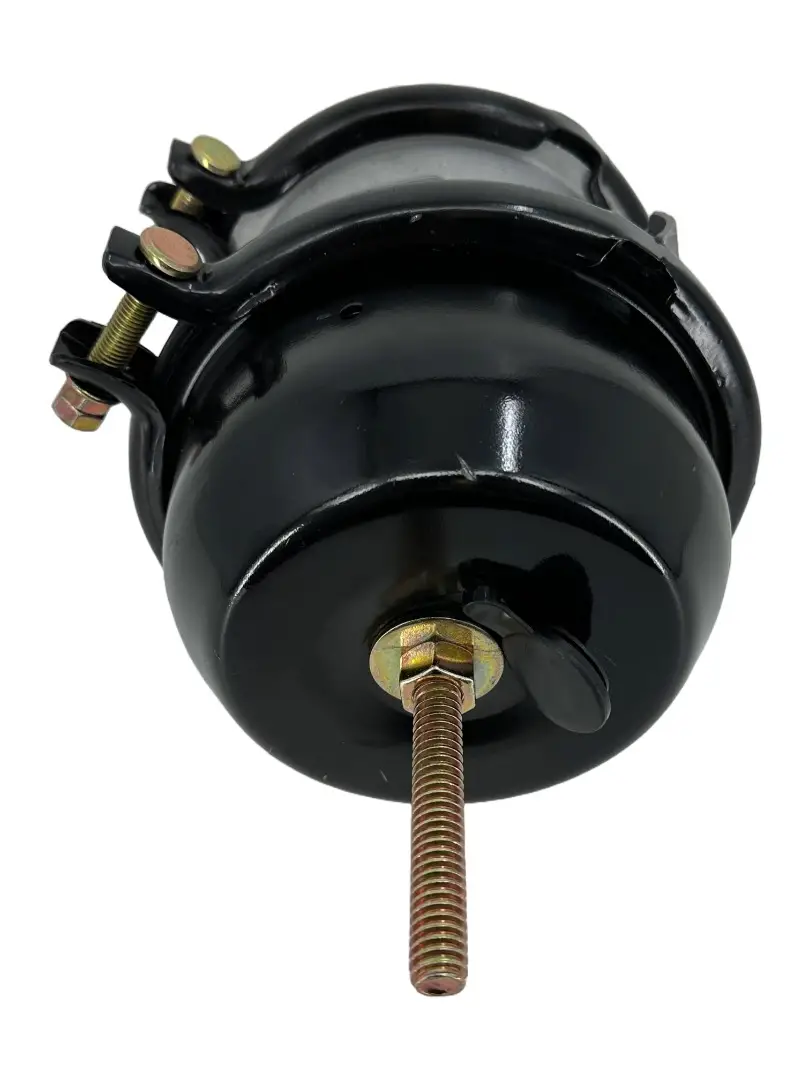

Disc Brake Chamber 16/24 DD Replaces K042457

Description : Disc Brake Chamber 16/24 for Caliper Brakes Truck Trailer

Part Number : TR1624C

Disc Brake Chamber 16/24 DD Replaces K042457
Disc Brake Chamber 16/24 DD Replaces K042457
Disc Brake Chamber 16/24 DD Replaces K042457
Disc Brake Chamber 16/24 DD Replaces K042457
Click to see price

Disc Brake Chamber 16/24 for Caliper Brakes Truck Trailer

  Bendix:   K042457
  Automann:   179.SB1624DB
  Haldex:   GC1624D





Chamber Style:   Double Diaphragm
Service Chamber Joint Type:   Single Clamp Band
Stud Thread Size:   M16 x 1.5-6g
Stud Spacing:   4.75 IN (120.7 MM)
Mounting Stud Length:   1.72 IN (43.7 MM)
Stroke:   2.25 IN (57.2 MM)
Push Rod Thread / Style:   Spherical End
Push Rod Length [MM]:   15
Service Port:   3/8-18 NPTF
Parking Port:   3/8-18 NPTF
Port Angle:   270 °
Clamp Angle:   90 °
Maximum Operating Temperature:   176  °F (80  °C)
Minimum Operating Temperature: -40  °F ( -40  °C)
