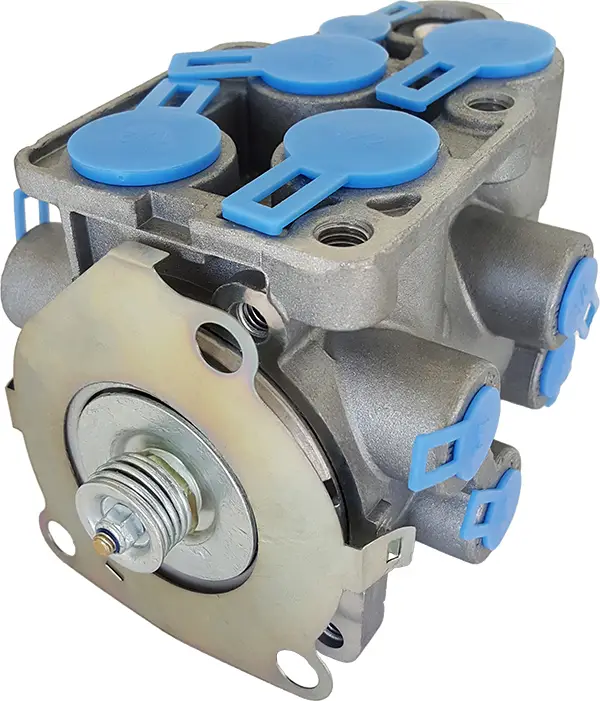

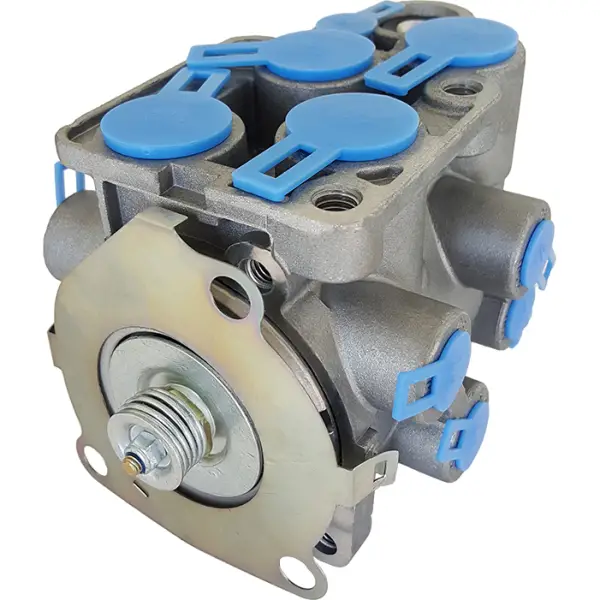

E-7 Dual Circuit Foot Control Valve
- Firewall mounted.
- Suspended pedal foot valve.
- Two separate supply and delivery circuits.
- Used in dual or split air brake systems.
- Firewall mounted.
- Suspended pedal foot valve.
- Two separate supply and delivery circuits.
- Used in dual or split air brake systems.
| Bendix: | 288383N, 287291, 288383X, 288383 |
| Bendix\Haldex: | 288383, 288383X, 288383RX |
| IHC: | 3254899R91, 479024C91, 492833C91 |
| Supply Ports: | 4 @ 1/4" |
| Delivery Ports: | 4 @ 1/4" |
| Exhaust Ports: | Diaphragm |
| Supply Ports on Mounting Side: | 1 @ 1/8" , 2 @ 1/2" |
| Delivery Ports on Mounting Side: | 2 @ 1/2" |
| Approximate Weight: | 3.7 lbs. |
| Longest Side | 7.48 in. |
| Median Side | 4.72 in. |
| Shortest Side | 4.53 in. |
| Weight | 3.56 lbs. |
