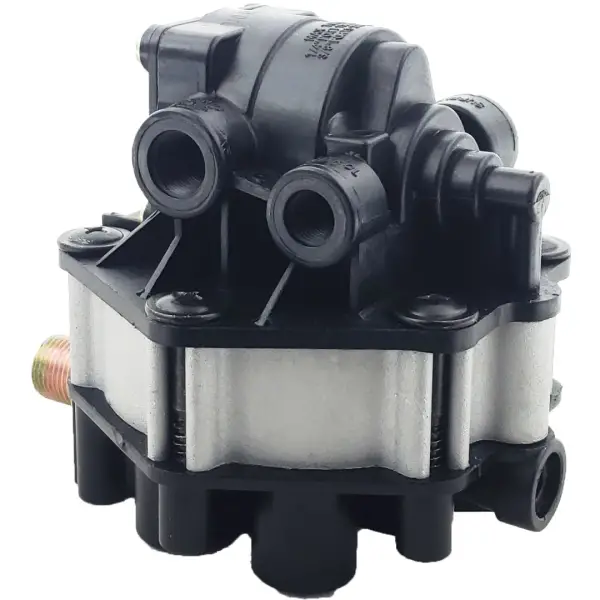

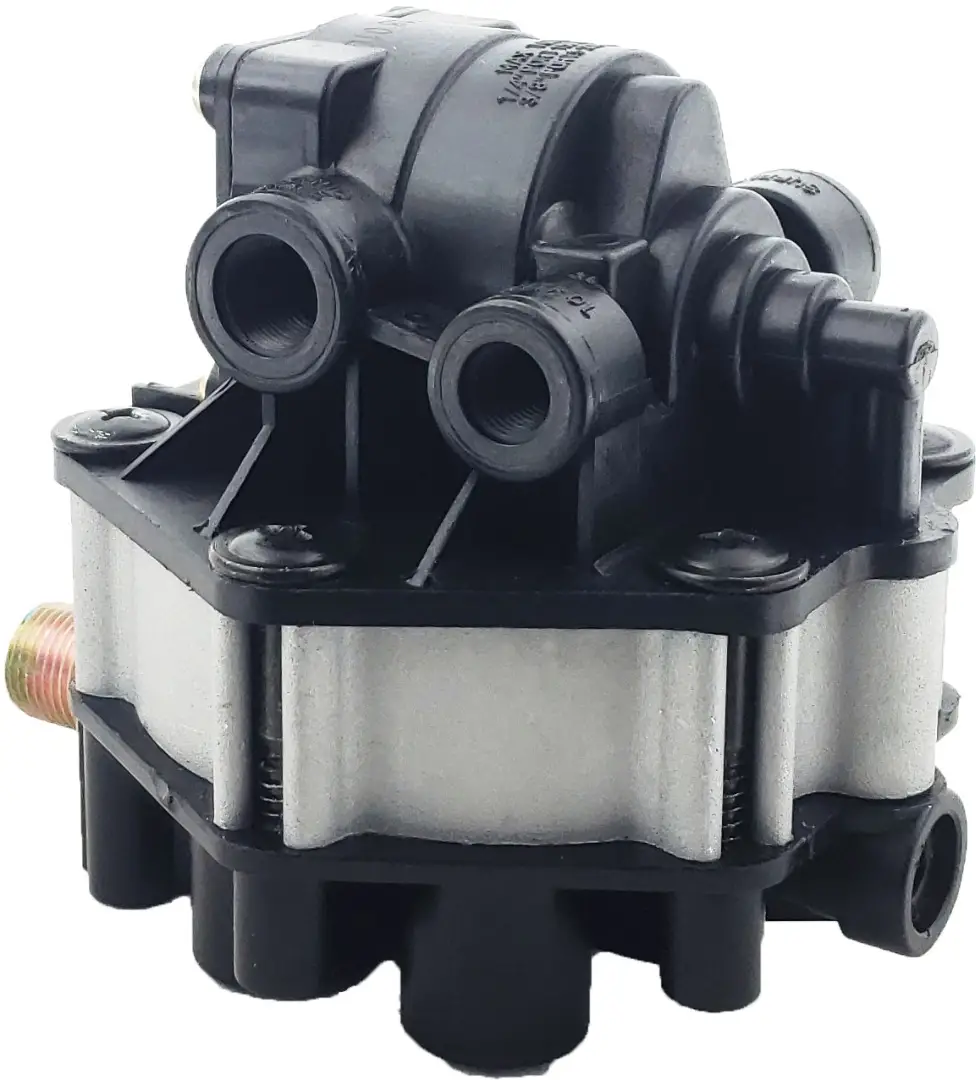

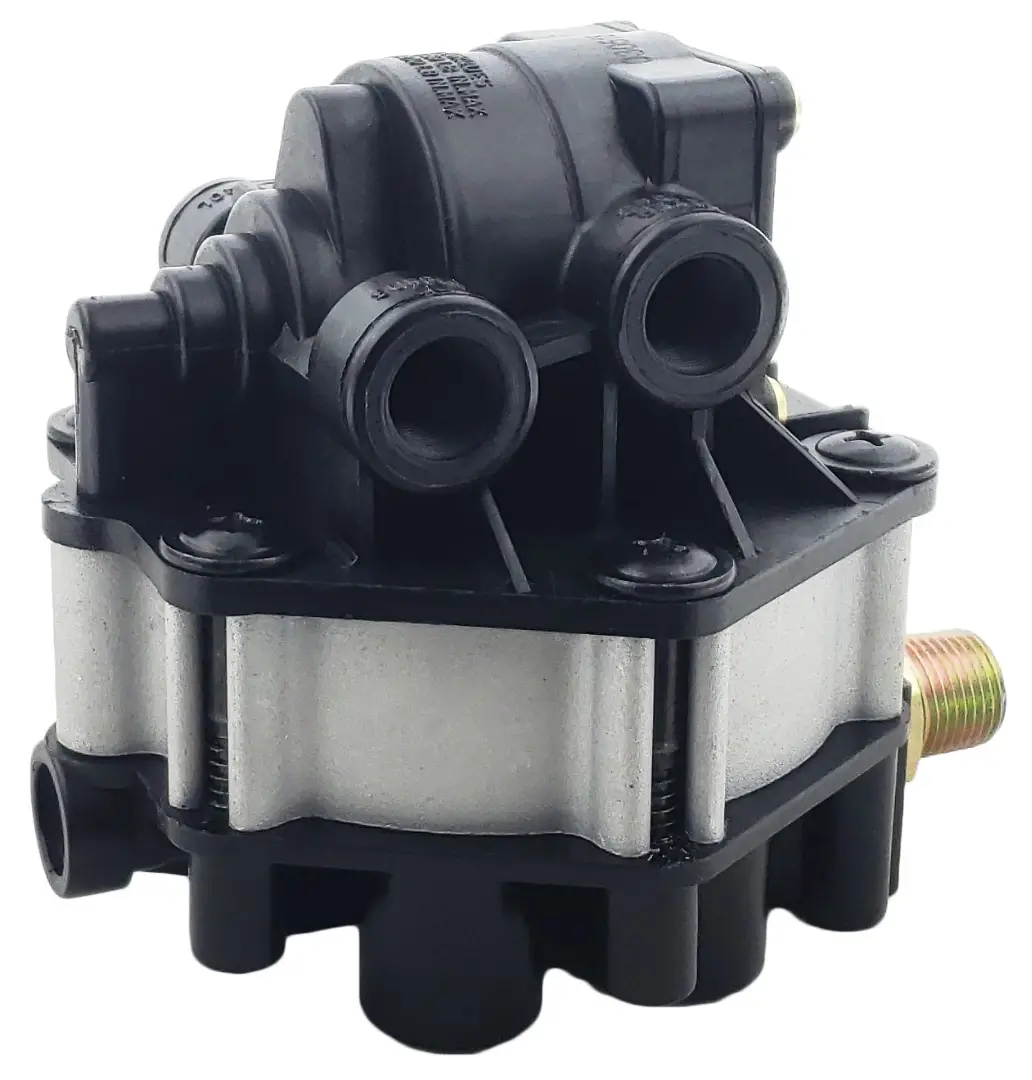

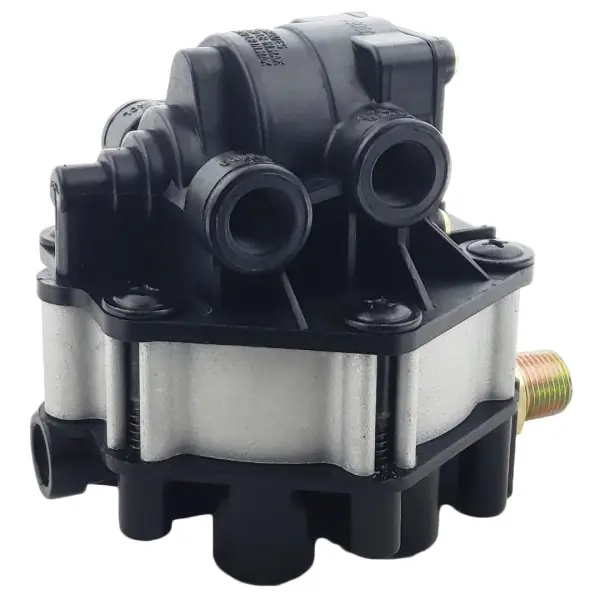

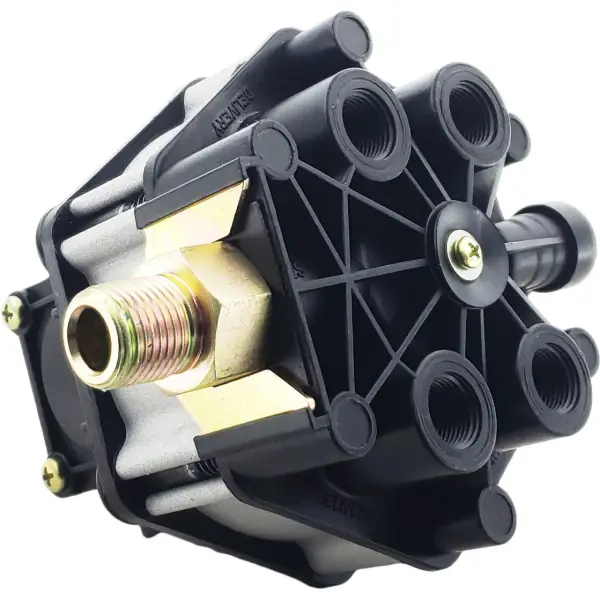

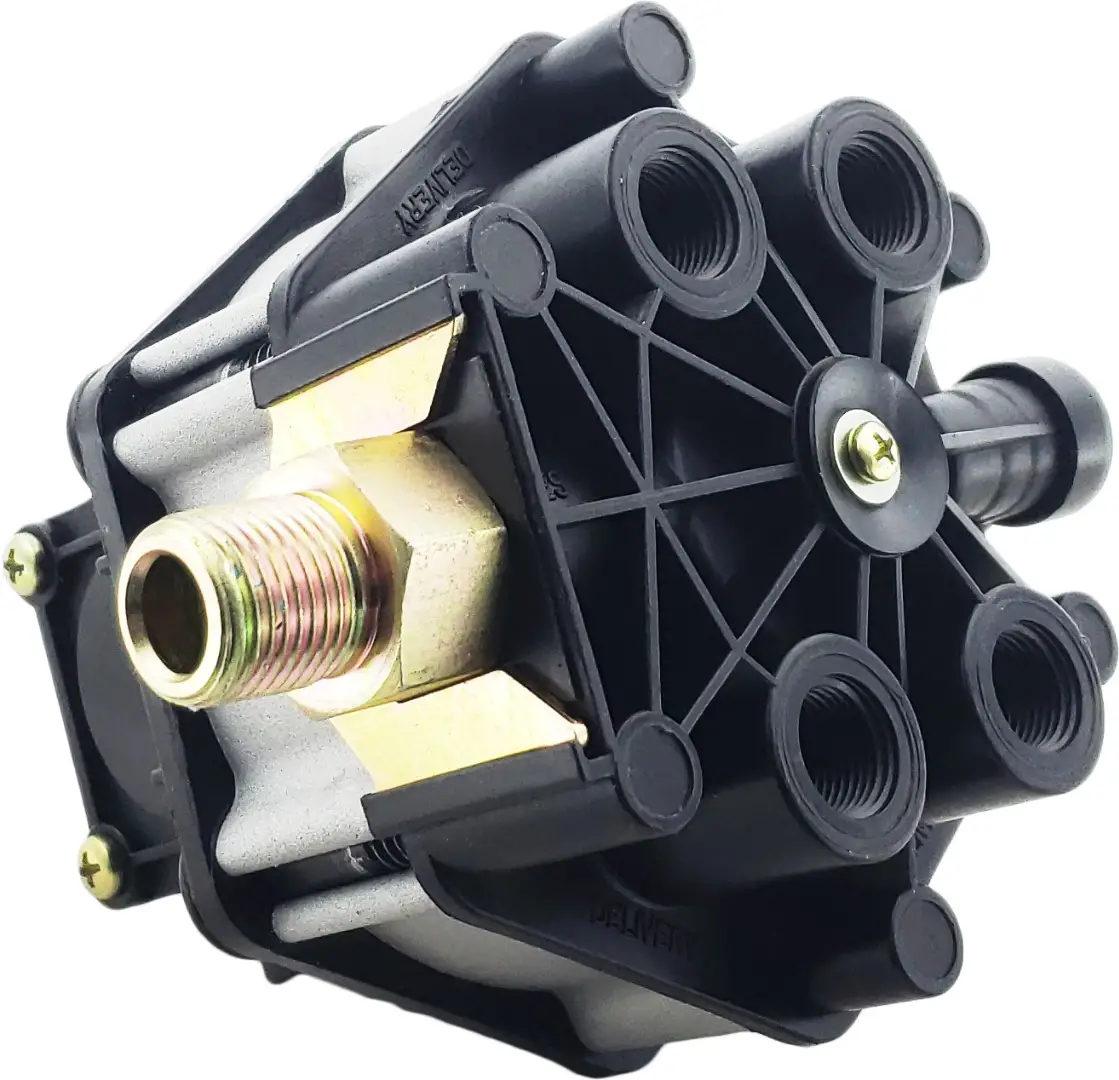

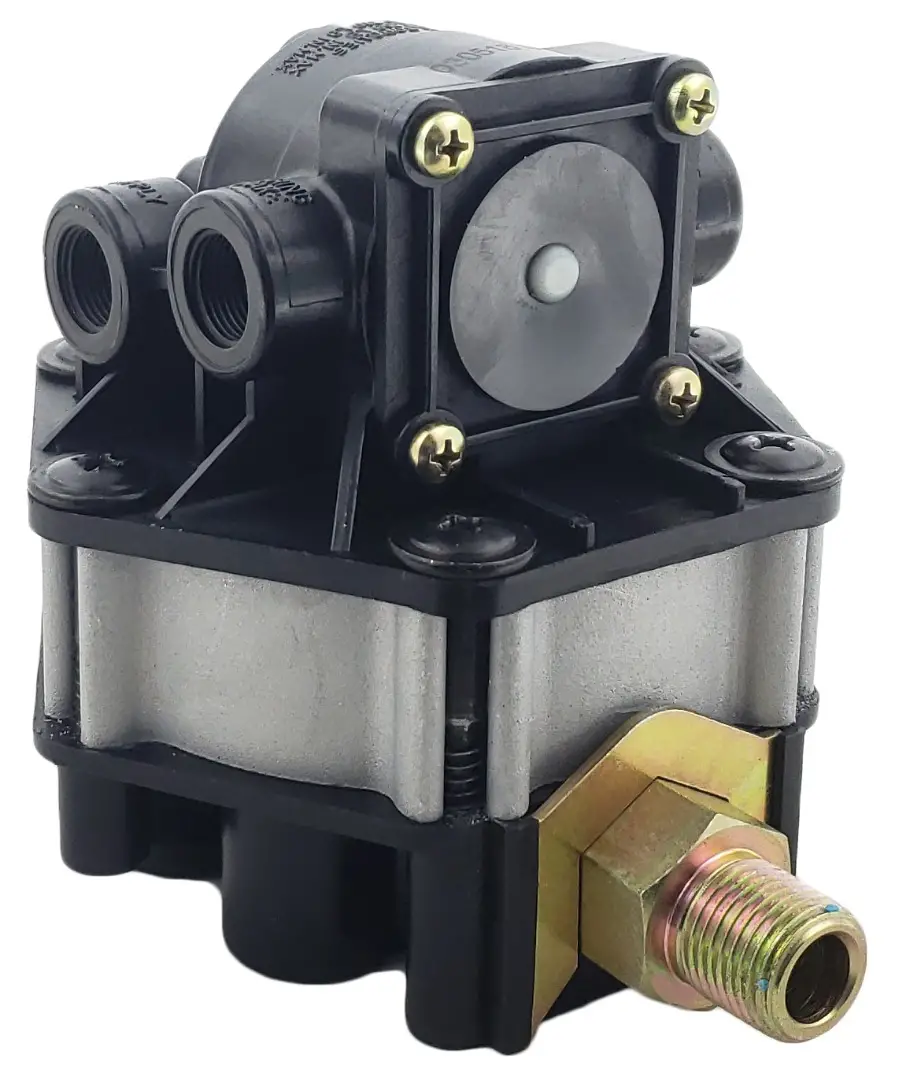

FF-2 Full Function Trailer Valve
- Single valve system - easy to install, maintain and troubleshoot.
- Built-in pressure protection and anti-compounding functions.
- Space age engineering grade composites: resists corrosion, lighter and more durable than aluminum.
- Built-in service and spring brake quick release.
- Heavy wall mounting nipple is treated to resist corrosion and withstand severe duty applications.
- Service brake priority ensures air tank pressure is sufficient to stop vehicle when spring brakes are first released.
- Can be used with single or twin air tanks.
- Single valve system - easy to install, maintain and troubleshoot.
- Built-in pressure protection and anti-compounding functions.
- Space age engineering grade composites: resists corrosion, lighter and more durable than aluminum.
- Built-in service and spring brake quick release.
- Heavy wall mounting nipple is treated to resist corrosion and withstand severe duty applications.
- Service brake priority ensures air tank pressure is sufficient to stop vehicle when spring brakes are first released.
- Can be used with single or twin air tanks.
| Haldex: | KN28601X, KN28601, KN28601RX |
| Mack: | 5396KN28601 |
| Midland: | KN28601, N4304AB |
| Crack Pressure: | 3.0 PSI |
| Reservoir Port: | 1/2" |
| Control Port: | 1/4" |
| Supply Port: | 3/8" |
| Spring Brake Ports: | 2 @ 3/8" |
| Delivery Ports(4): | 3/8" |
| Approximate Weight: | 3 lbs. |
| Longest Side | 7.87 in. |
| Median Side | 5.51 in. |
| Shortest Side | 5.63 in. |
| Weight | 3.11 lbs. |
