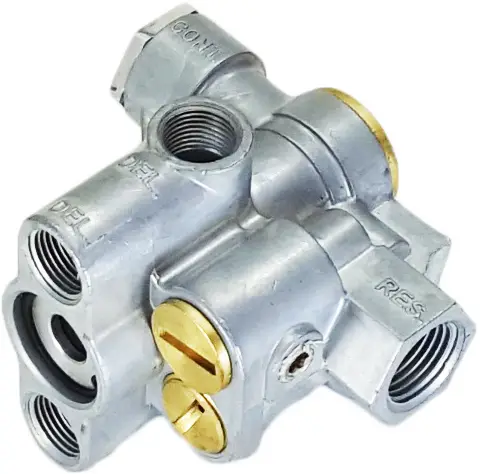

Spring Brake Control Valve
- Designed for use with a single reservoir on a typical single or tandem axle trailer.
- The 110700 is a unique service brake priority valve with a relay feature that dramatically lowers release times. The valve fills both the reservoir and the spring chambers at the same time. This insures service pressure in the reservoir before the spring brakes release. The built in control port prevents brake compounding.
Compounding/Anti-Compounding Feature:
'Compounding' is the simultaneous actuation of both the spring (emergency) and service brakes. Compounding can result in over-torque of the foundation brakes causing problems such as bent chamber push rods, broken camshafts, cracked drums, lining damage, damaged chamber brackets, etc.
Anti-compounding is a feature that prevents compounding and is included in all current Sealco spring brake control valves.
- Designed for use with a single reservoir on a typical single or tandem axle trailer.
- The 110700 is a unique service brake priority valve with a relay feature that dramatically lowers release times. The valve fills both the reservoir and the spring chambers at the same time. This insures service pressure in the reservoir before the spring brakes release. The built in control port prevents brake compounding.
Compounding/Anti-Compounding Feature:
'Compounding' is the simultaneous actuation of both the spring (emergency) and service brakes. Compounding can result in over-torque of the foundation brakes causing problems such as bent chamber push rods, broken camshafts, cracked drums, lining damage, damaged chamber brackets, etc.
Anti-compounding is a feature that prevents compounding and is included in all current Sealco spring brake control valves.
| Euclid: | ESL110700 |
| Meritor: | RSL110700 |
| Sealco: | 110700, 110700X, 110700RX |
| Supply Port (1): | 3/8" |
| Control Port (1): | 3/8" |
| Reservoir Port (1): | 1/2" |
| Delivery Ports (4): | 3/8" |
| Approximate Weight: | 2 lbs. |
| Longest Side | 4.61 in. |
| Median Side | 4.53 in. |
| Shortest Side | 3.03 in. |
| Weight | 2.02 lbs. |
