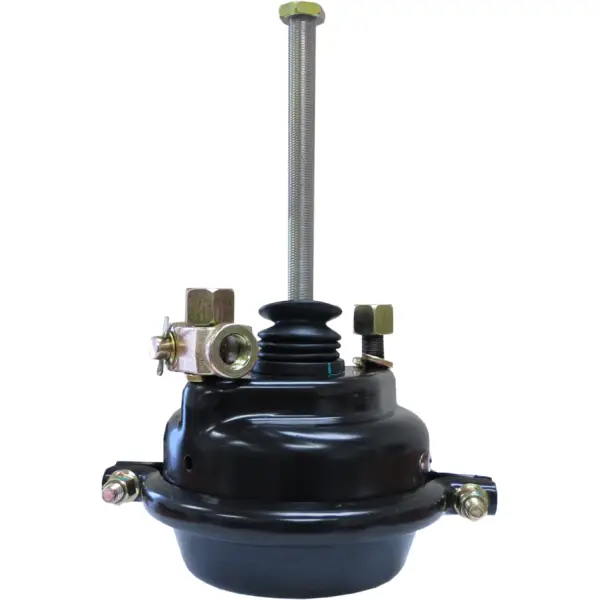

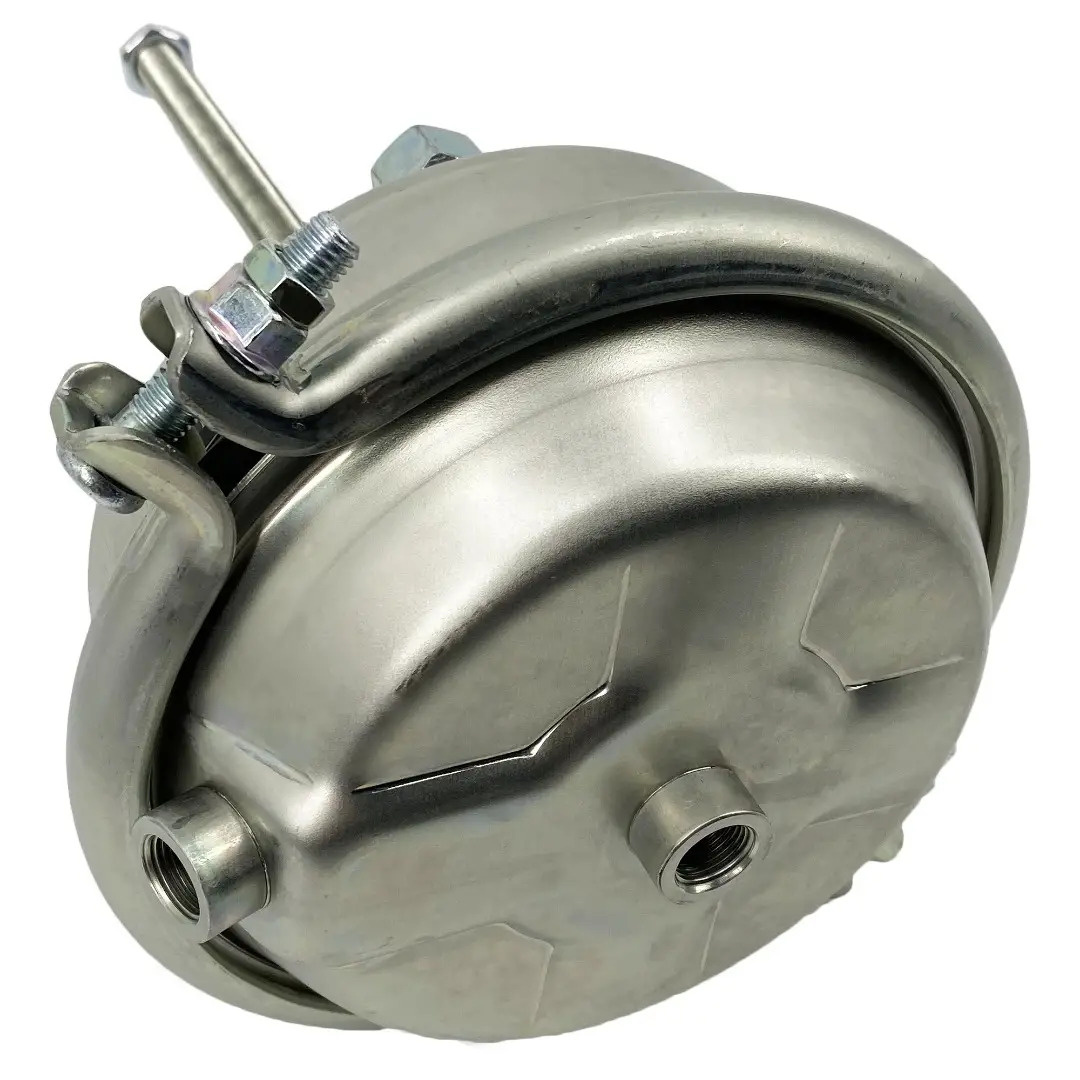

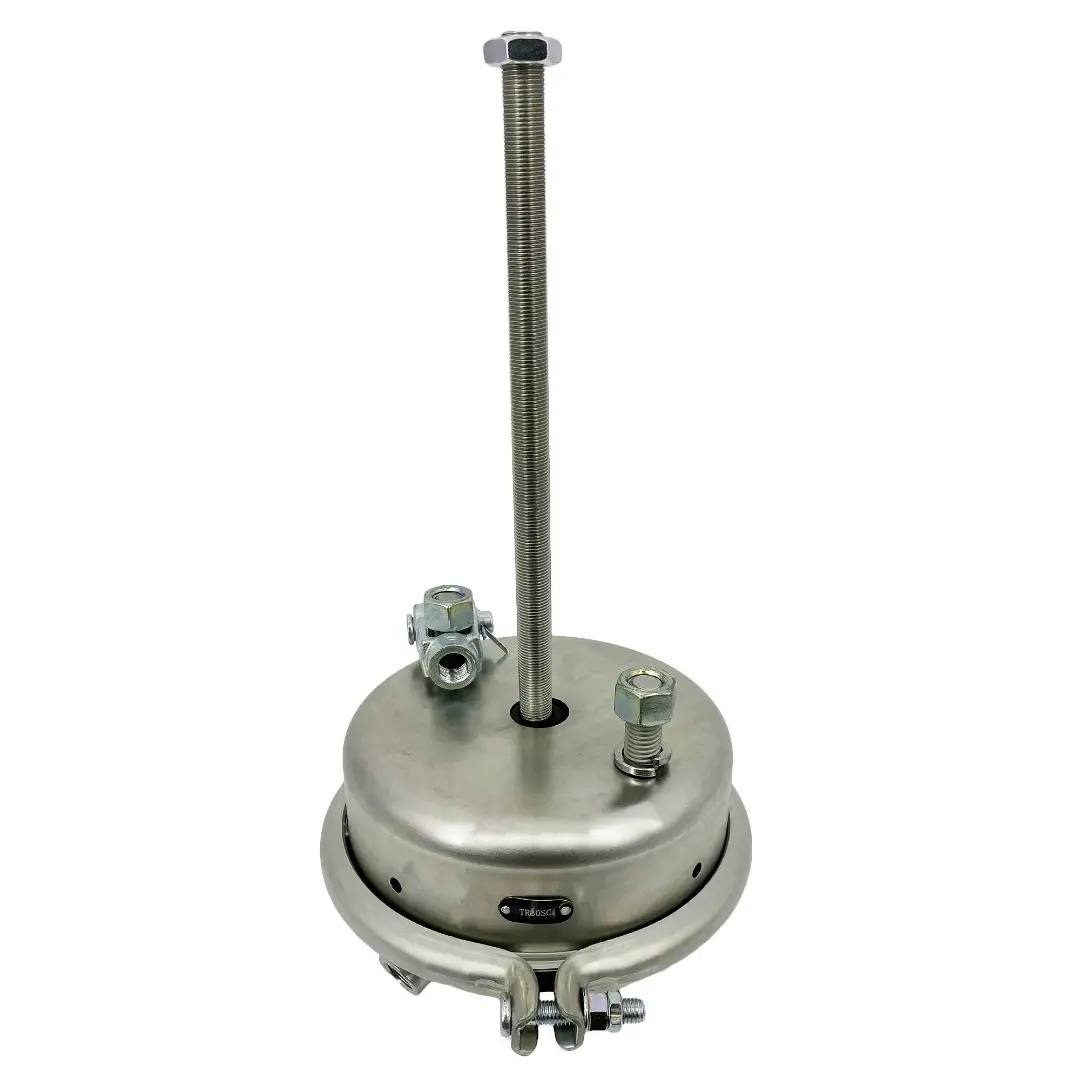

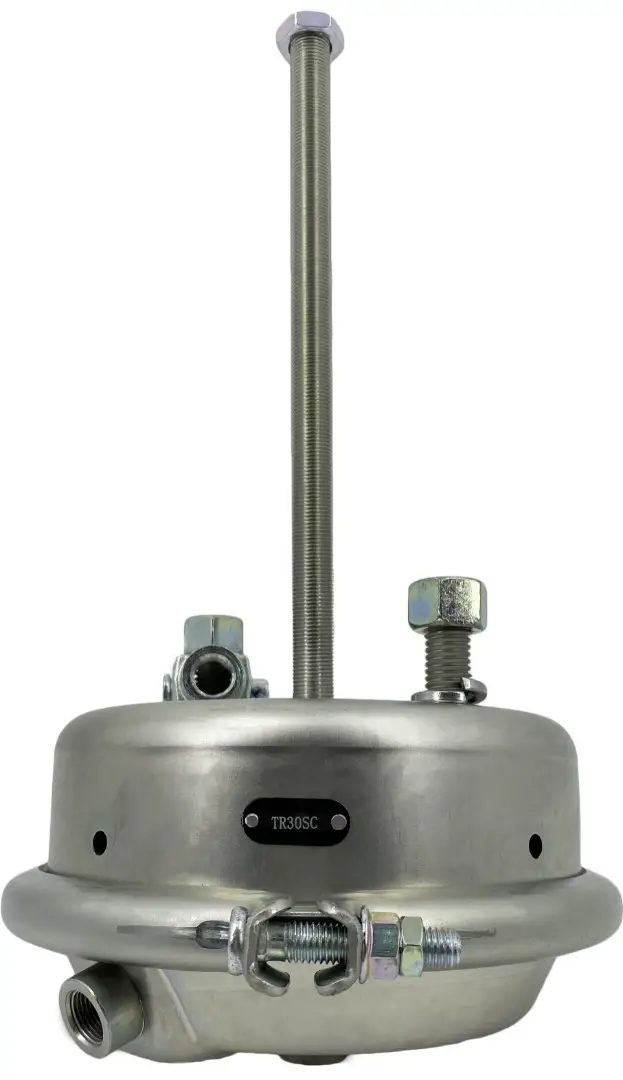

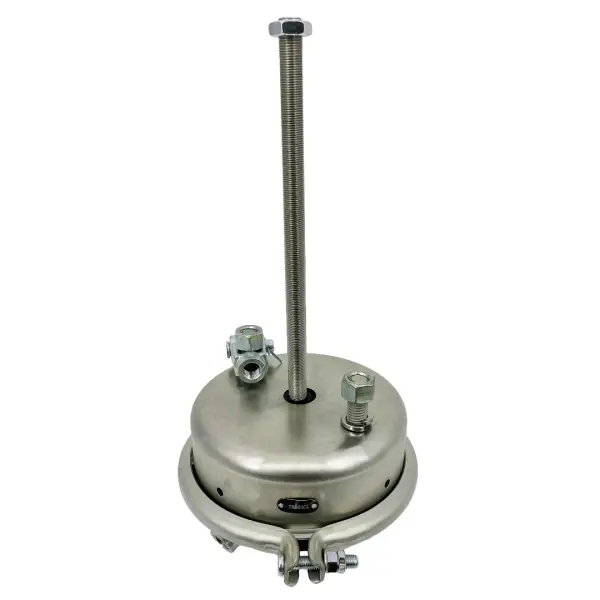

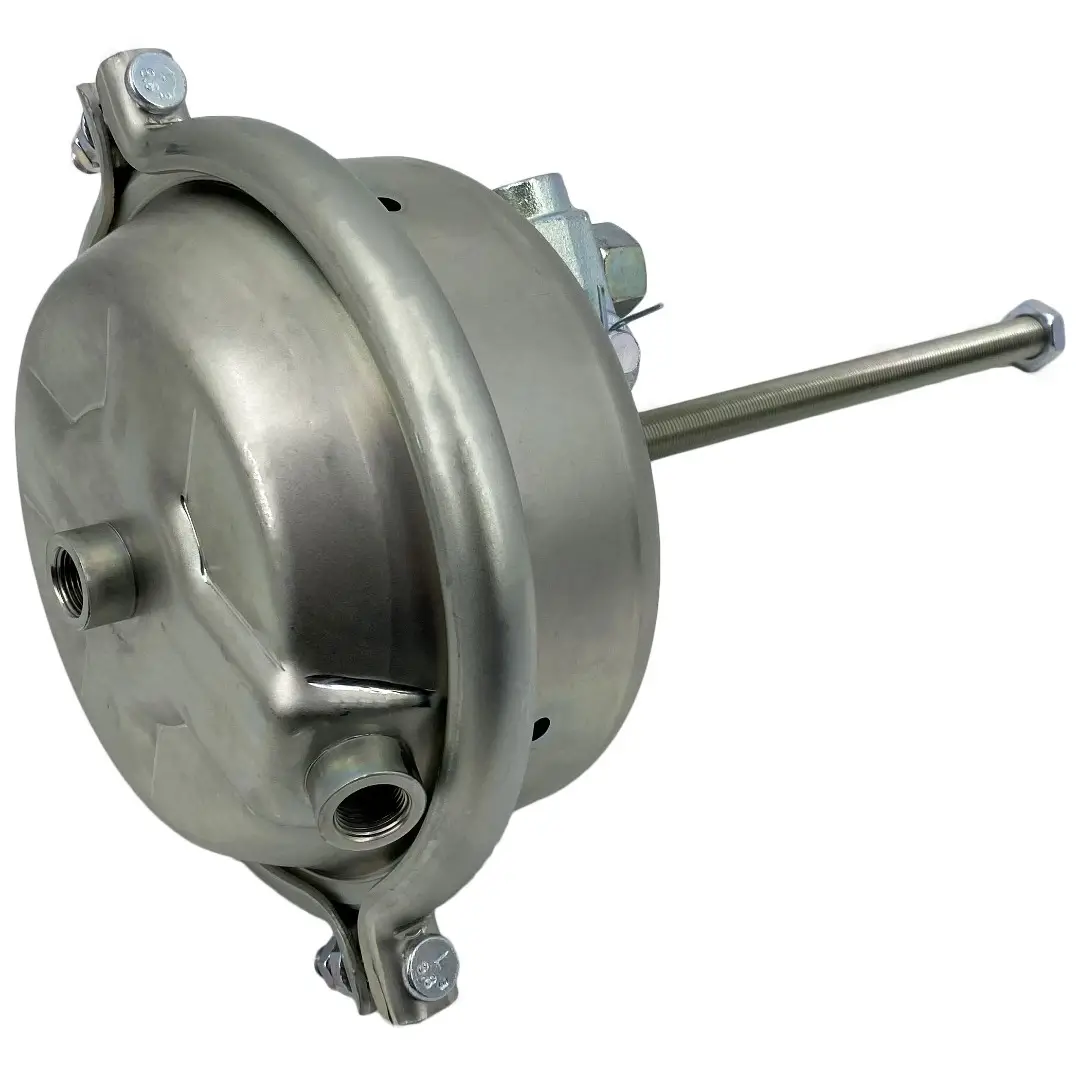

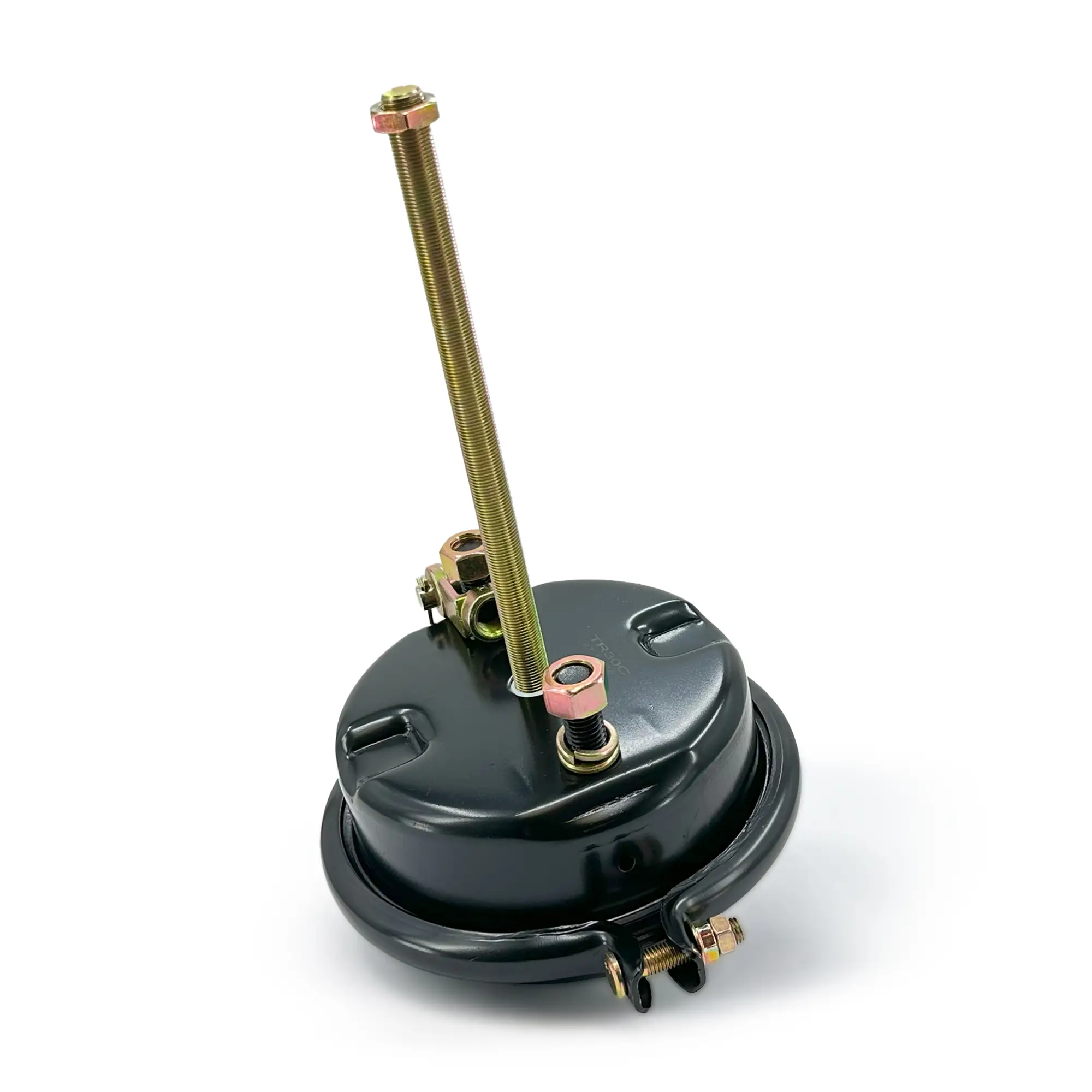

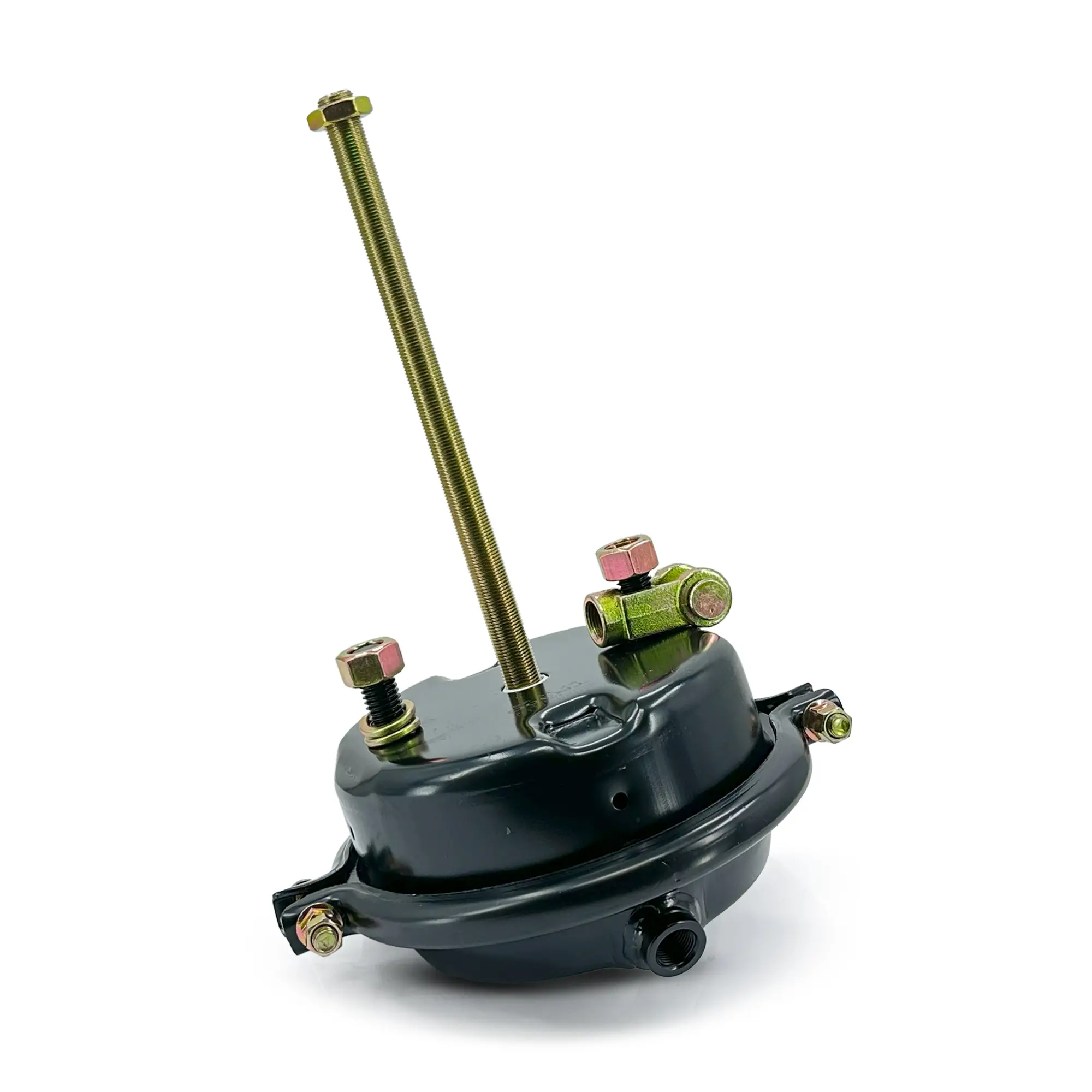

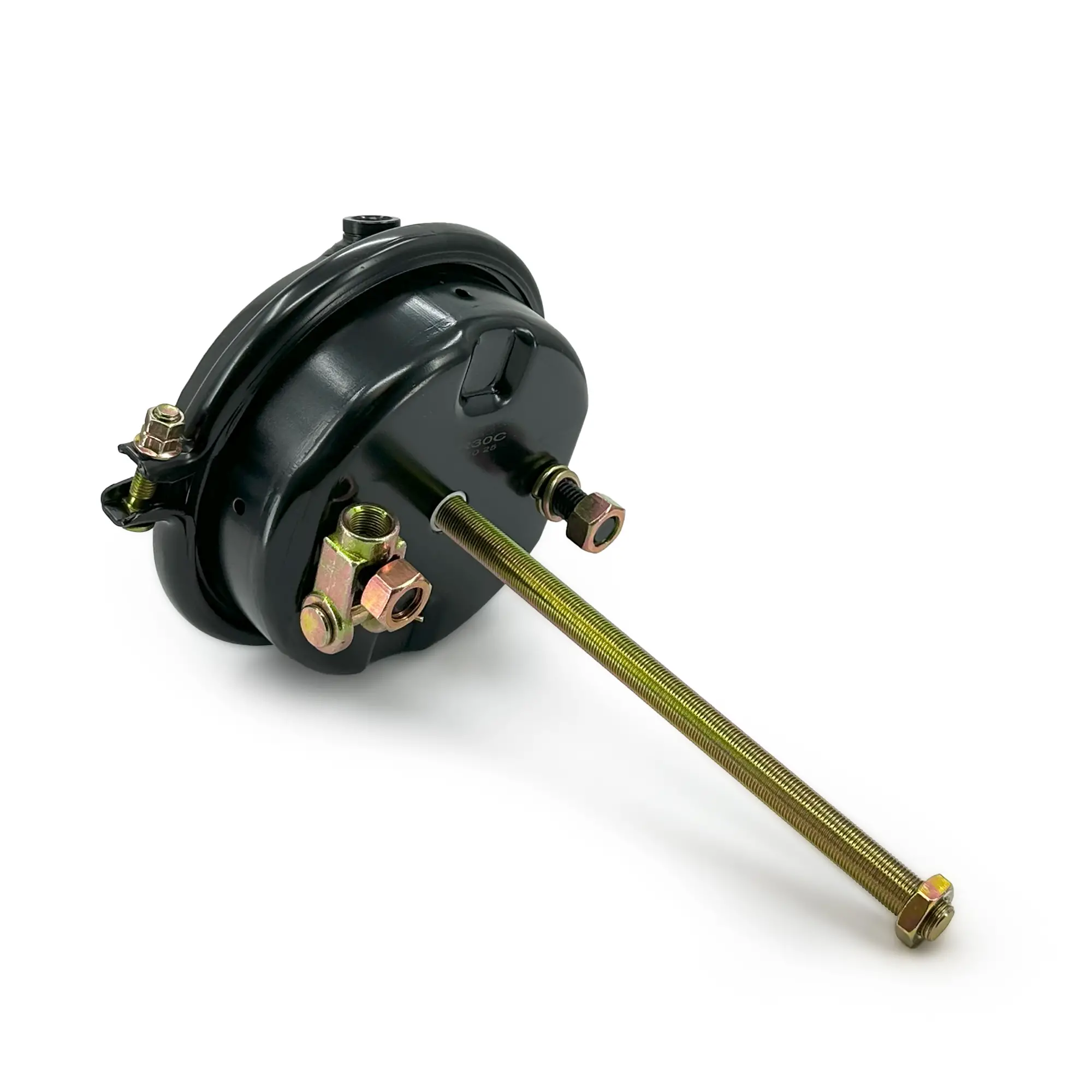

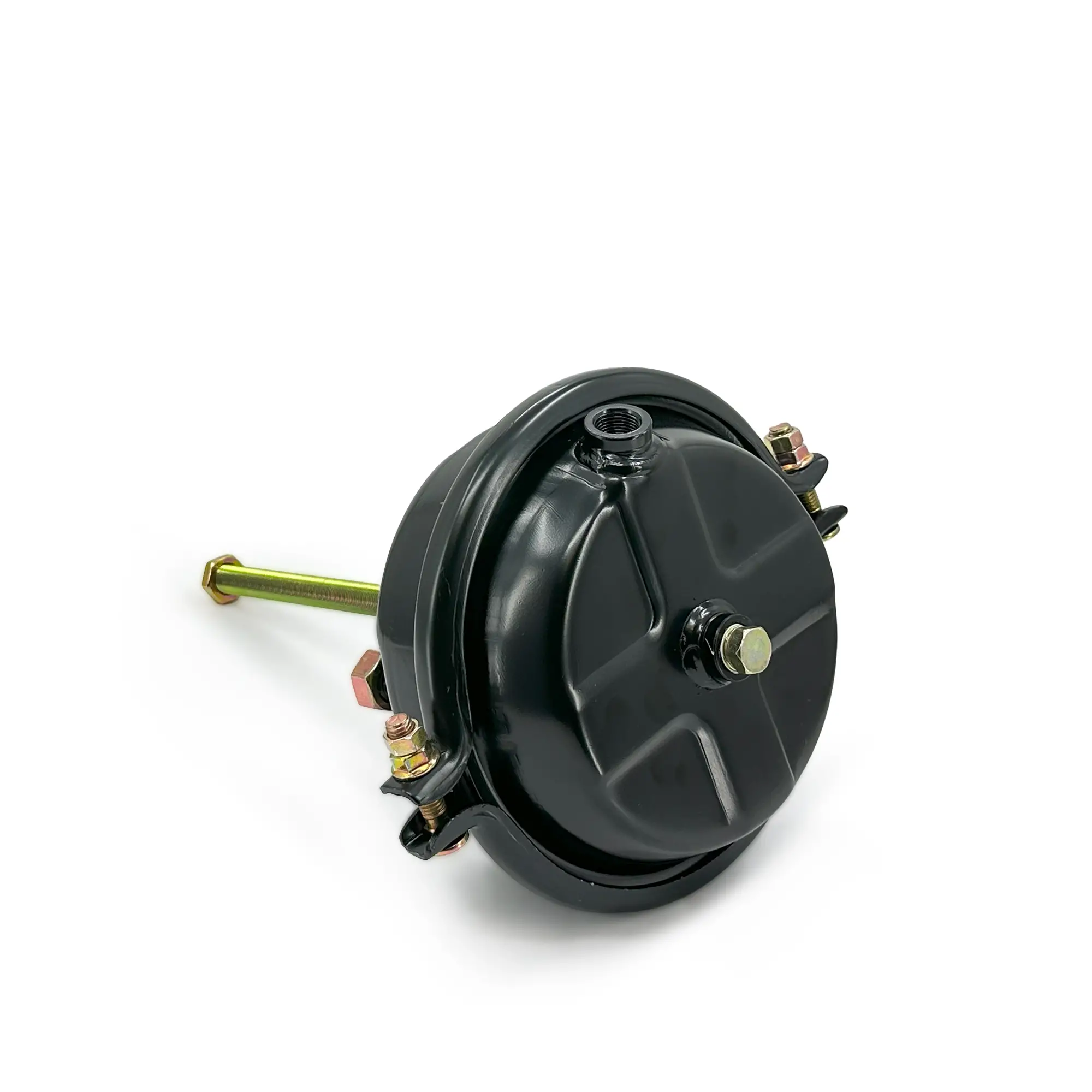

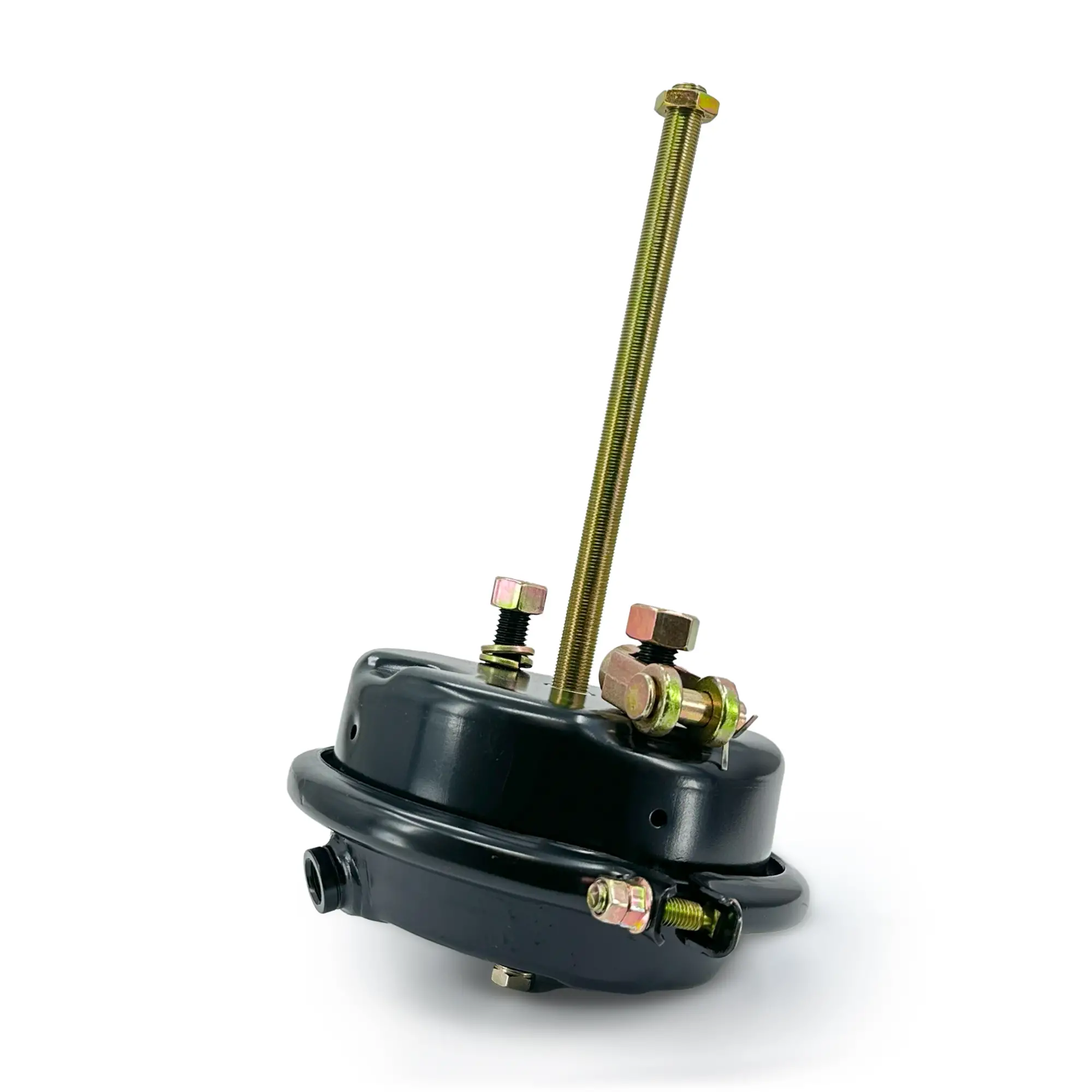

Air Brake Chamber Service Type 30
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Sturdy Service Housing; Powder coated for corrosion resistance; Flat bottom with 10 gauge steel
- Self-piloting Dust Shield
| Haldex: | SC30, 3000001, 53000001, MA36300 |
| Actuator Type Size: | 30 |
| Stroke Type: | Standard |
| Available Stroke: | 2-1/2", 64mm |
| Air Port Threads: | 3/8"-18 NPTF |
| Length from mounting bracket to end of Spring Housing: | 3-11/16", 94mm |
| Dimension at Service Clampband: | 10-3/16", 259mm |
| Stud Spacing with 5/8-11 UNC studs: | 4-3/4", 120.7mm |
| Pushrod Length from face of Service Housing: | 10" |
| Pushrod threads: | 5/8"-18 UNF |
| Air Port position: | 90° |
| Service Clampband position: | 0° |
| Maximum Air Pressure: | 150 psi |
| Weight: | 10.3 lbs. , 4.7 kg. |
| Longest Side | 15.67 in. |
| Median Side | 9.84 in. |
| Shortest Side | 8.11 in. |
| Weight | 11.07 lbs. |
