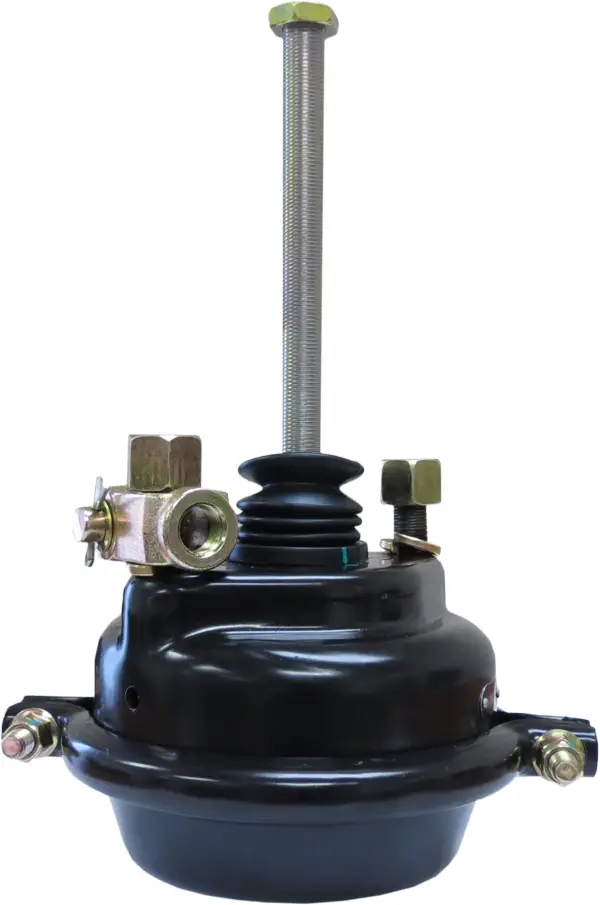

TR16SC Air Brake Chamber

Description : Air Brake Chamber Service Type 16

Part Number : TR16SC (inactive)

Air Brake Chamber Service Type 16

- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40 °F
- Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
- Self-piloting Dust Shield

Bendix:	K028226, 802242, KO34064, KO34065, 5018062, 5018063
Haldex:	SC16, SC16D
MGM:	1617-CS16LH
TSE:	16SCLD2H
Wabco:	800823
Dayton:	05-116
Velvac:	30015
Midland:	MBI SC16

Actuator Type Size:	16
Stroke Type:	Standard
Available Stroke:	2-1/4", 57mm
Length from mounting bracket to end of Spring Housing:	4-5/8", 117mm
Dimension at Service Clampband:	8-3/8", 213mm
Stud Spacing with 7/16-14 UNC studs:	3", 76.2mm
Pushrod Length from face of Service Housing:	10"
Pushrod threads:	1/2"-20 UNF
Service Clampband position:	0 °
Air Port position:	90 °
Weight:	5.7 lbs. , 2.6 kg.
