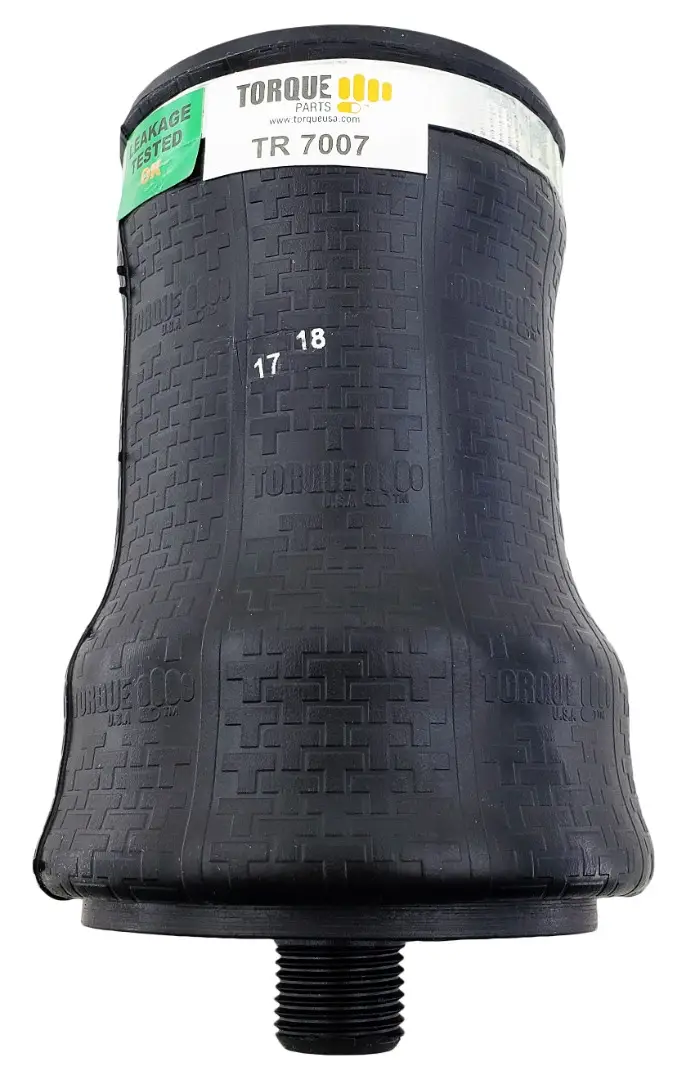

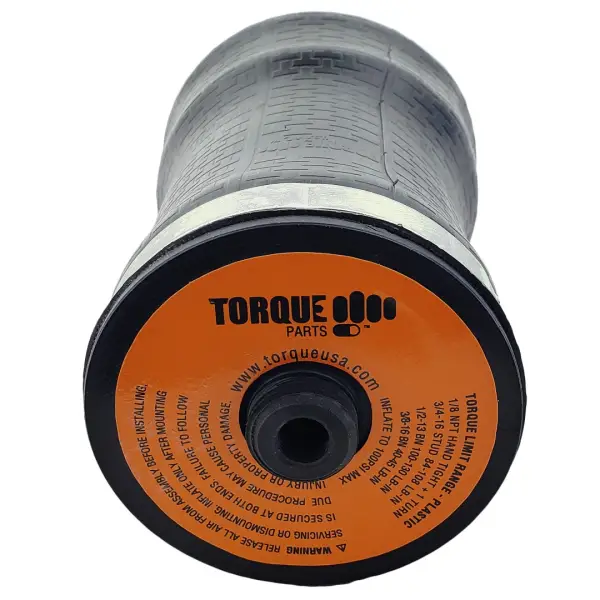

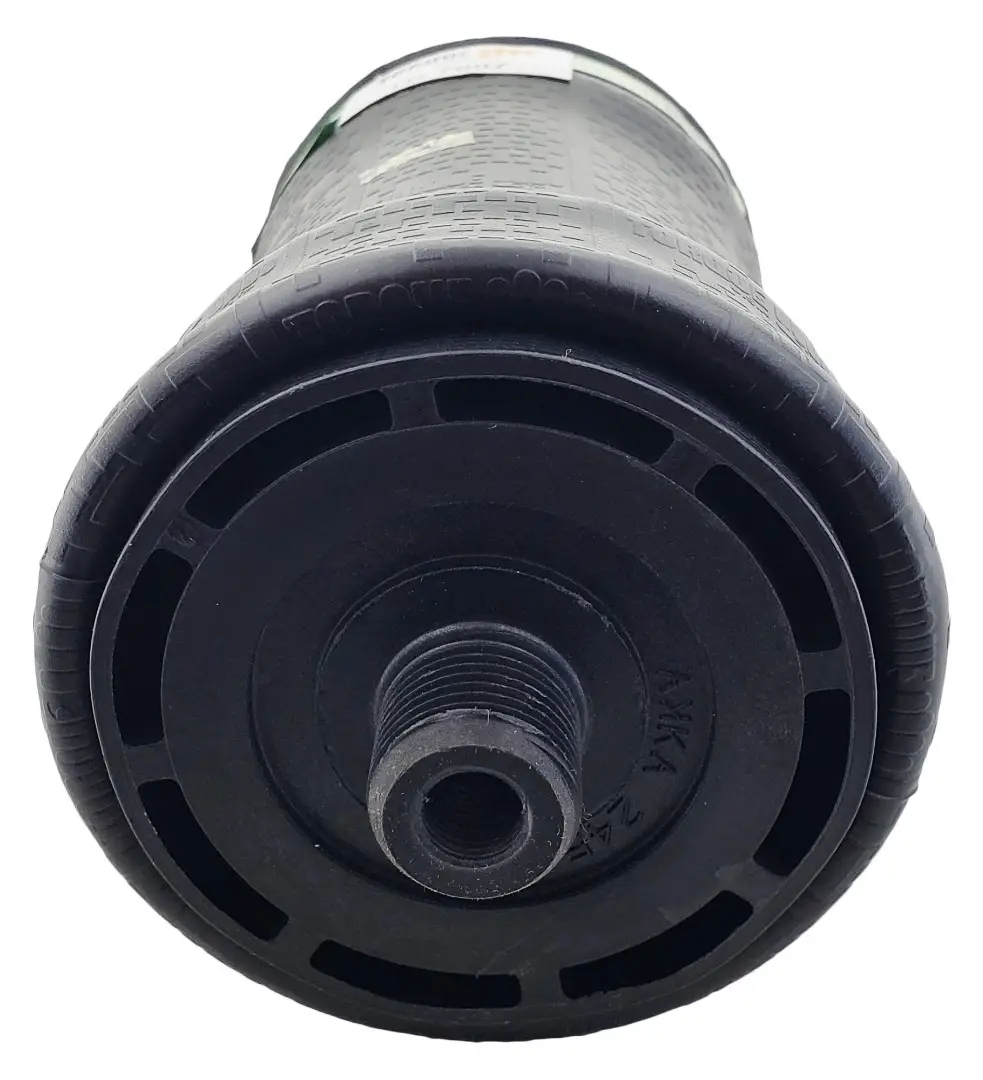

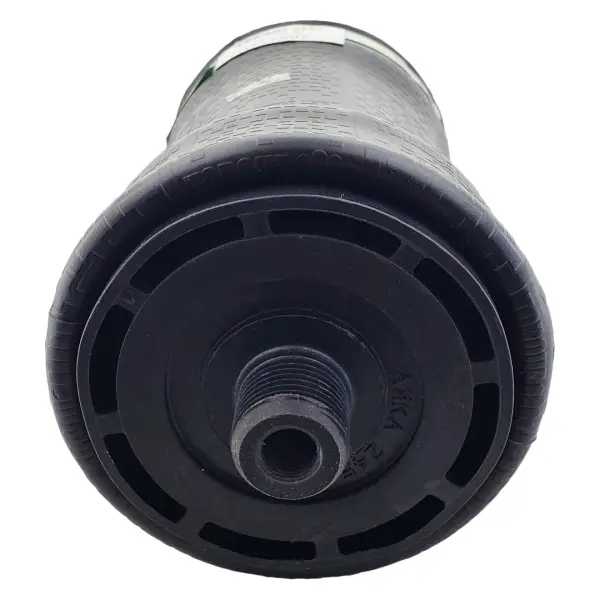

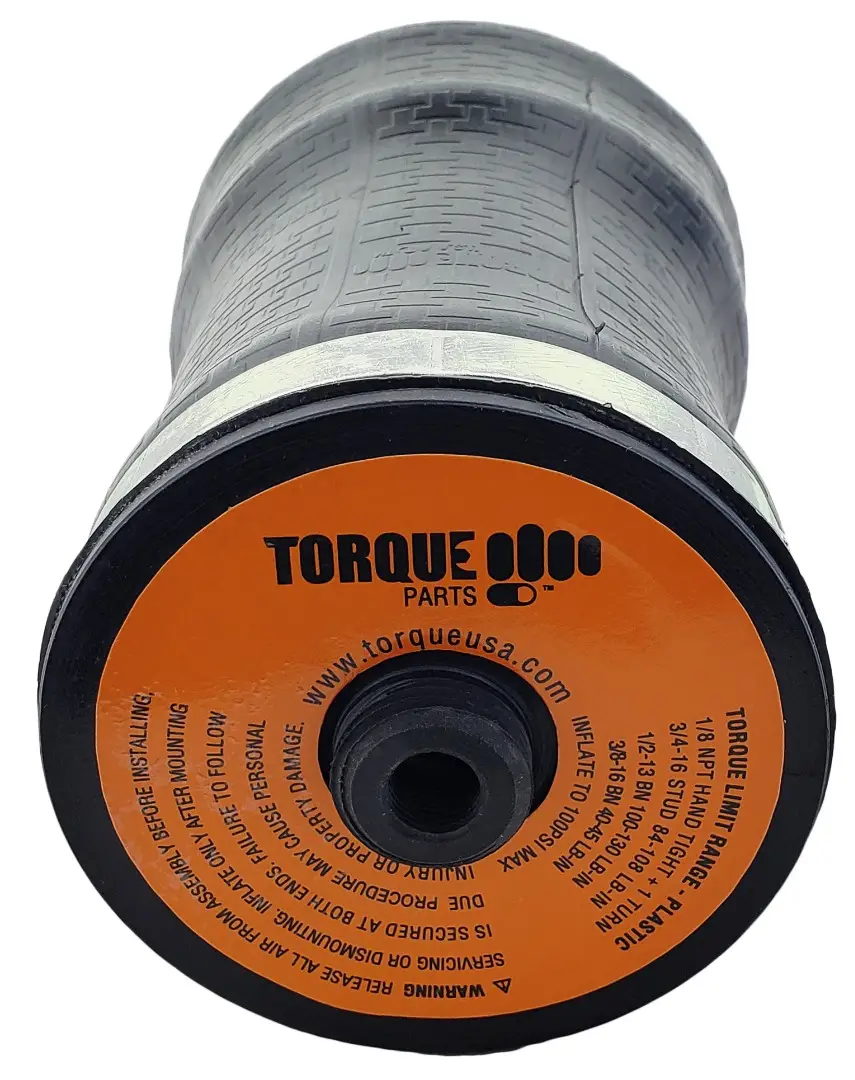

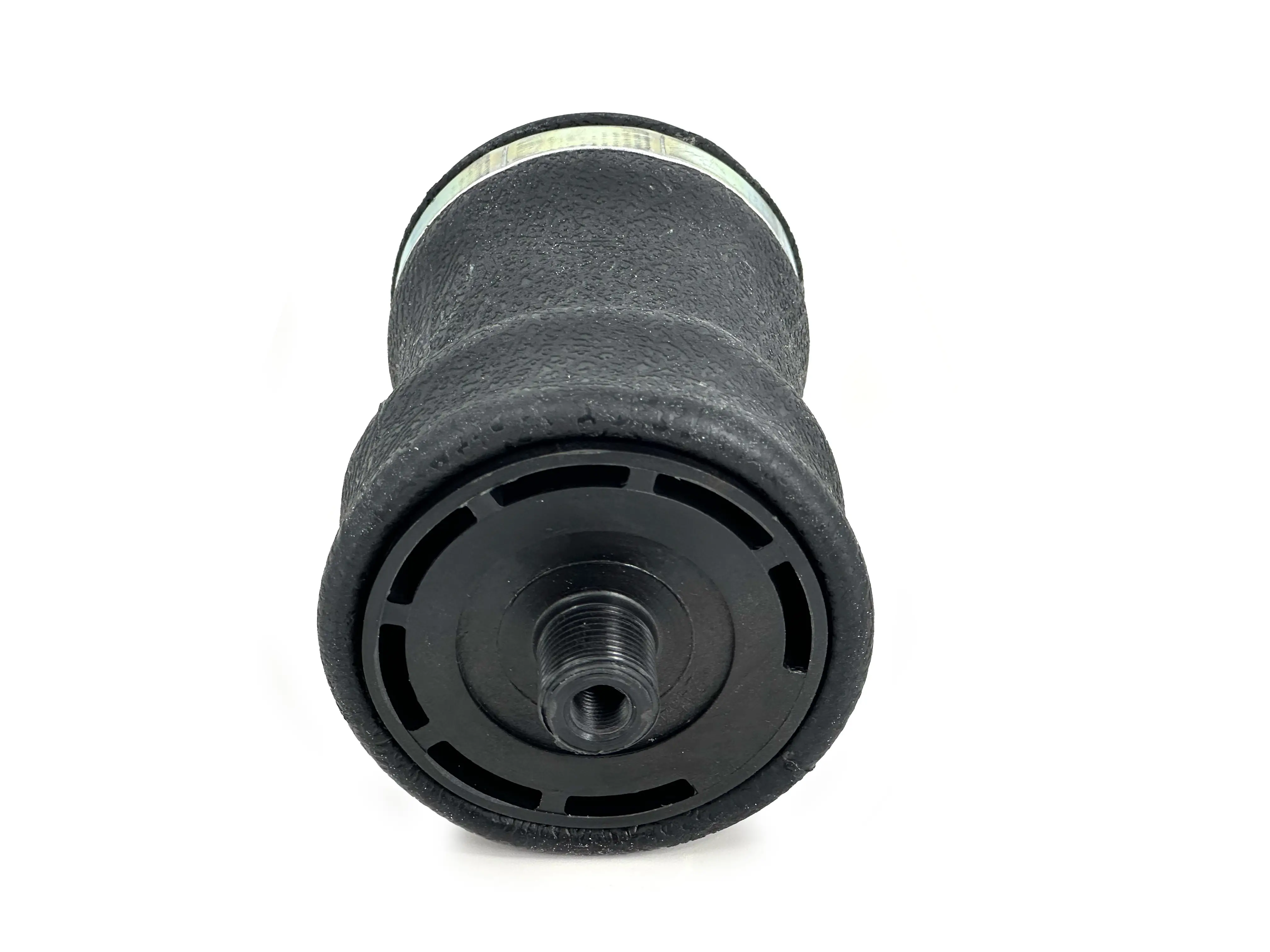

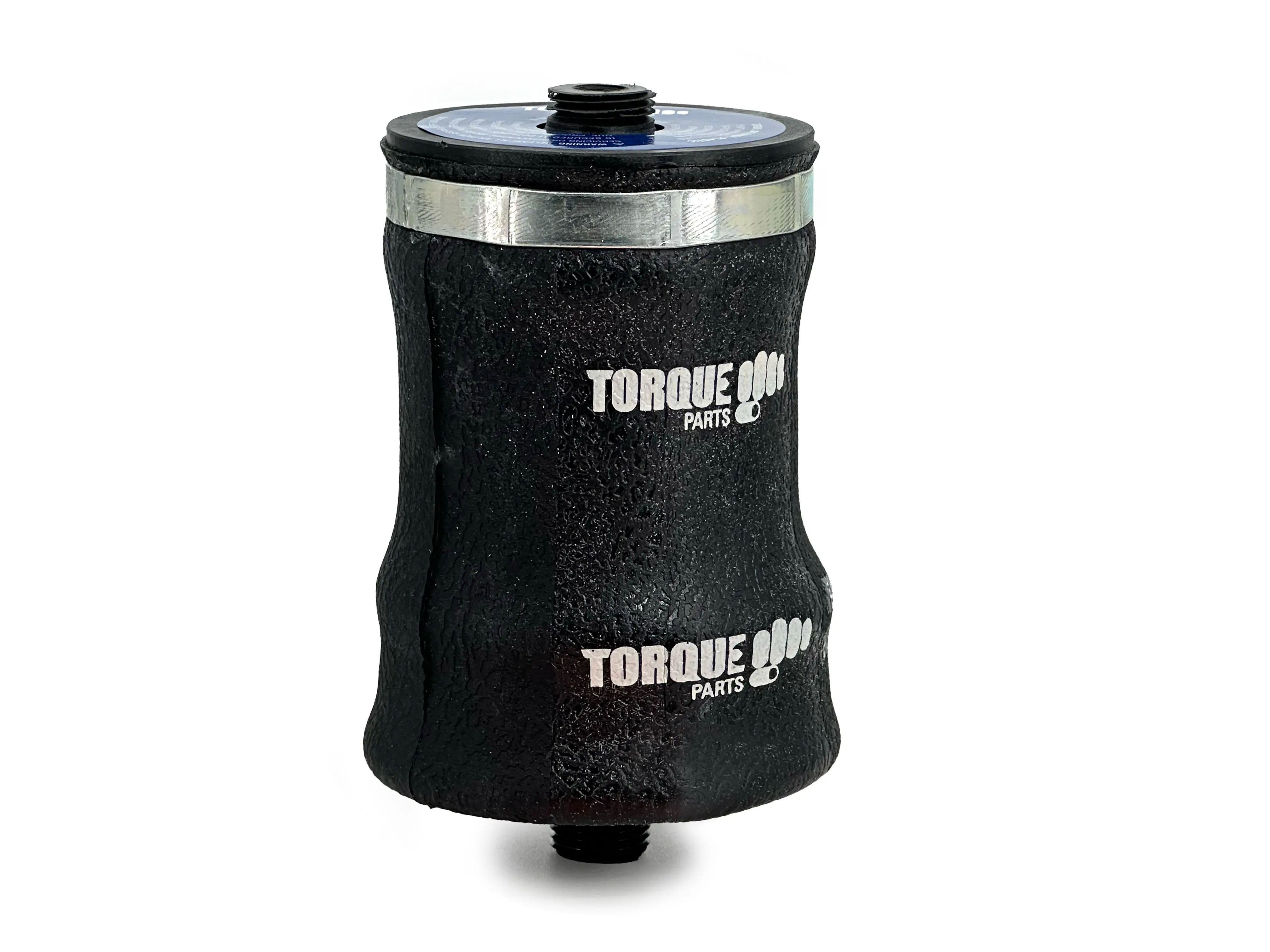

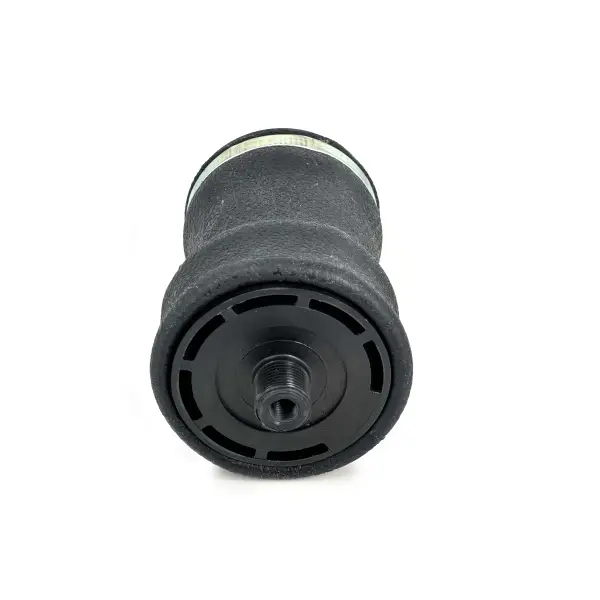

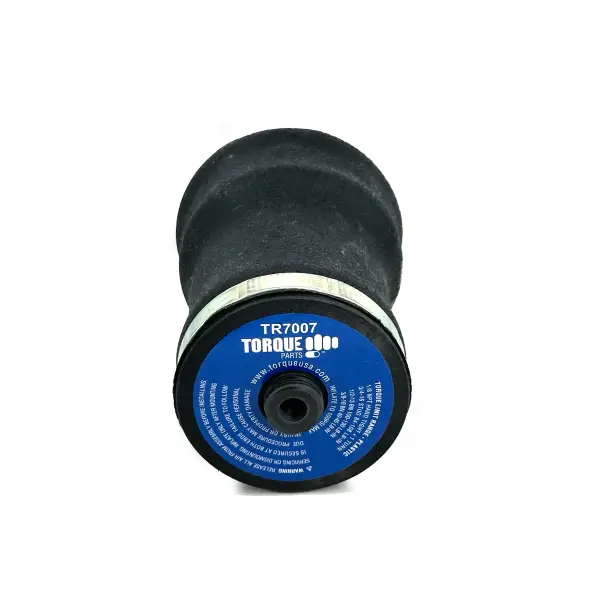

Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A

Description : Cabin Air Spring for Mack Trucks

Part Number : TR7007

Cabin Air Spring for Mack Replaces 25166846, 1S4-067, 227QS34A

Click to see price

Cabin Air Spring for Mack Trucks

Warning: California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Brand	Reference Numbers
Automann	ABSZ70‑7007
Sampa	500.902‑01
Firestone:	7007, NBD9930, W02‑358‑7007
Goodyear:	1S4067, 1S4‑067, 1S6067, 1S6‑067
Mack:	25166846, 227QS34B, 227QS34A, 227QS34

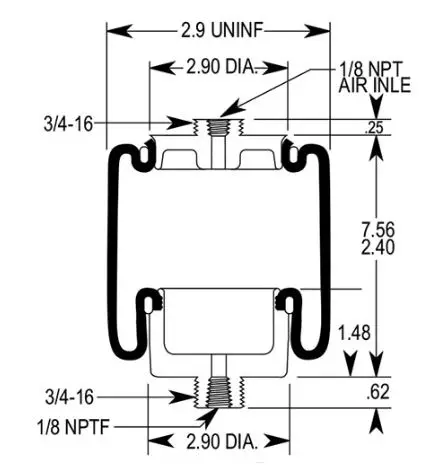

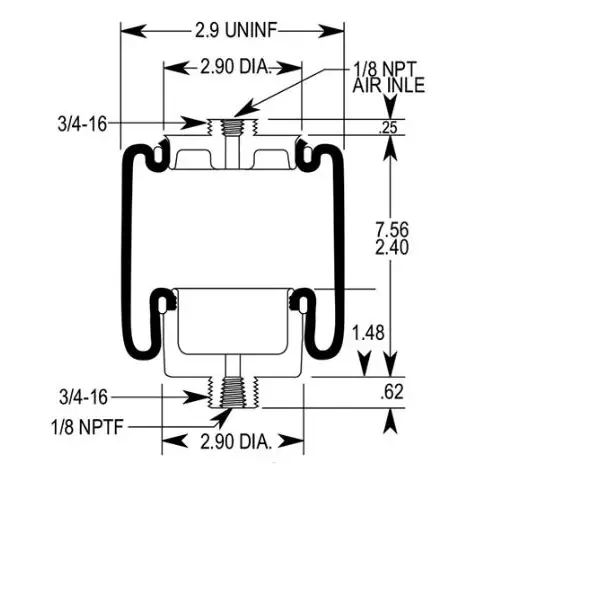

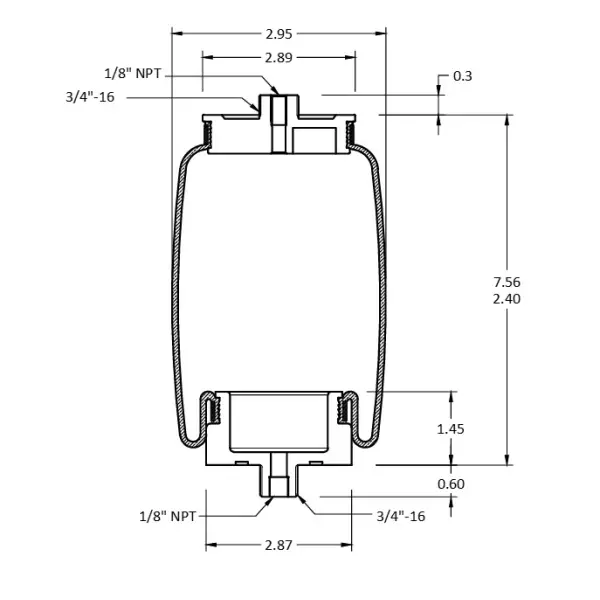

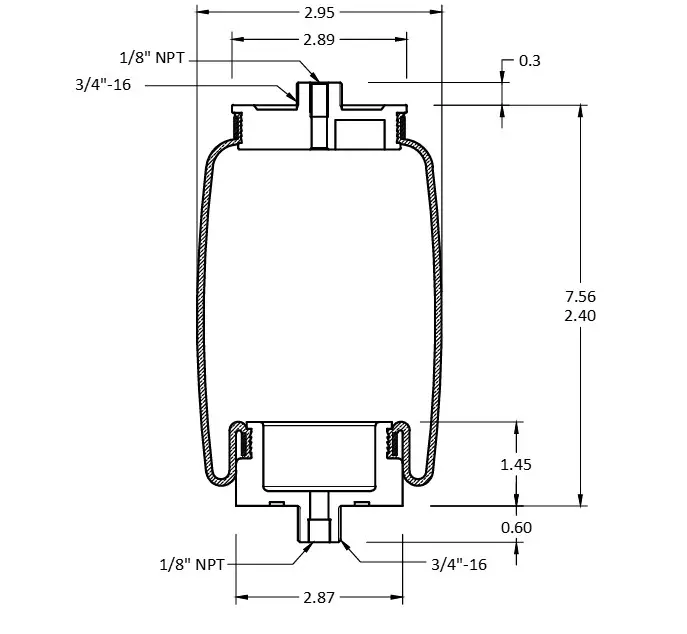

Property	Value
Locating Pin Diameter:	3/4"‑16
Locating Pin Height:	0.30"
Air Inlet:	1/8" NPT
Design Height:	8.5‑10.2"
Piston Diameter:	2.87"
Extended Height:	7.56"
Compressed Height:	2.40"
Weight:	1.8 lbs
