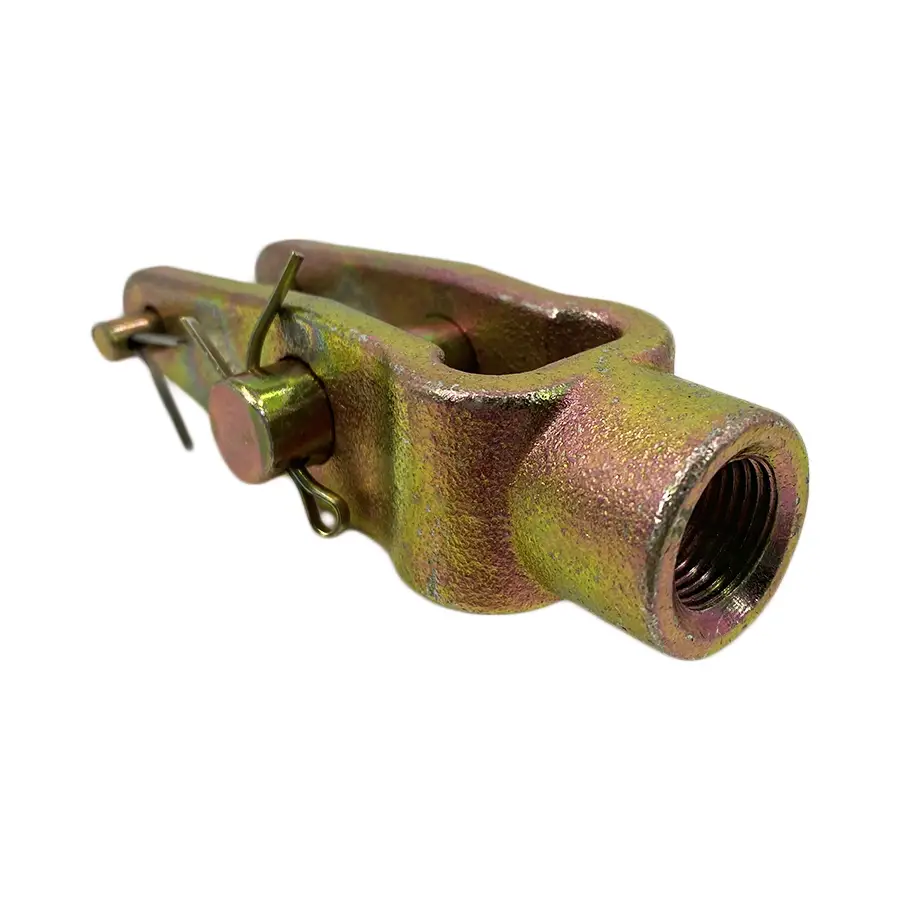

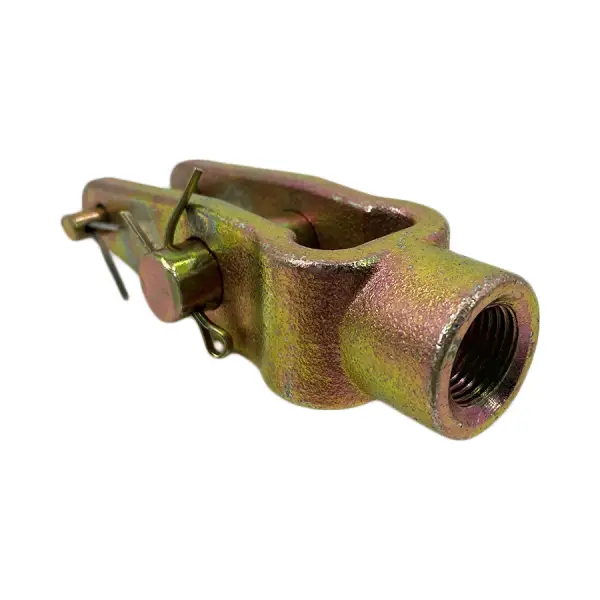

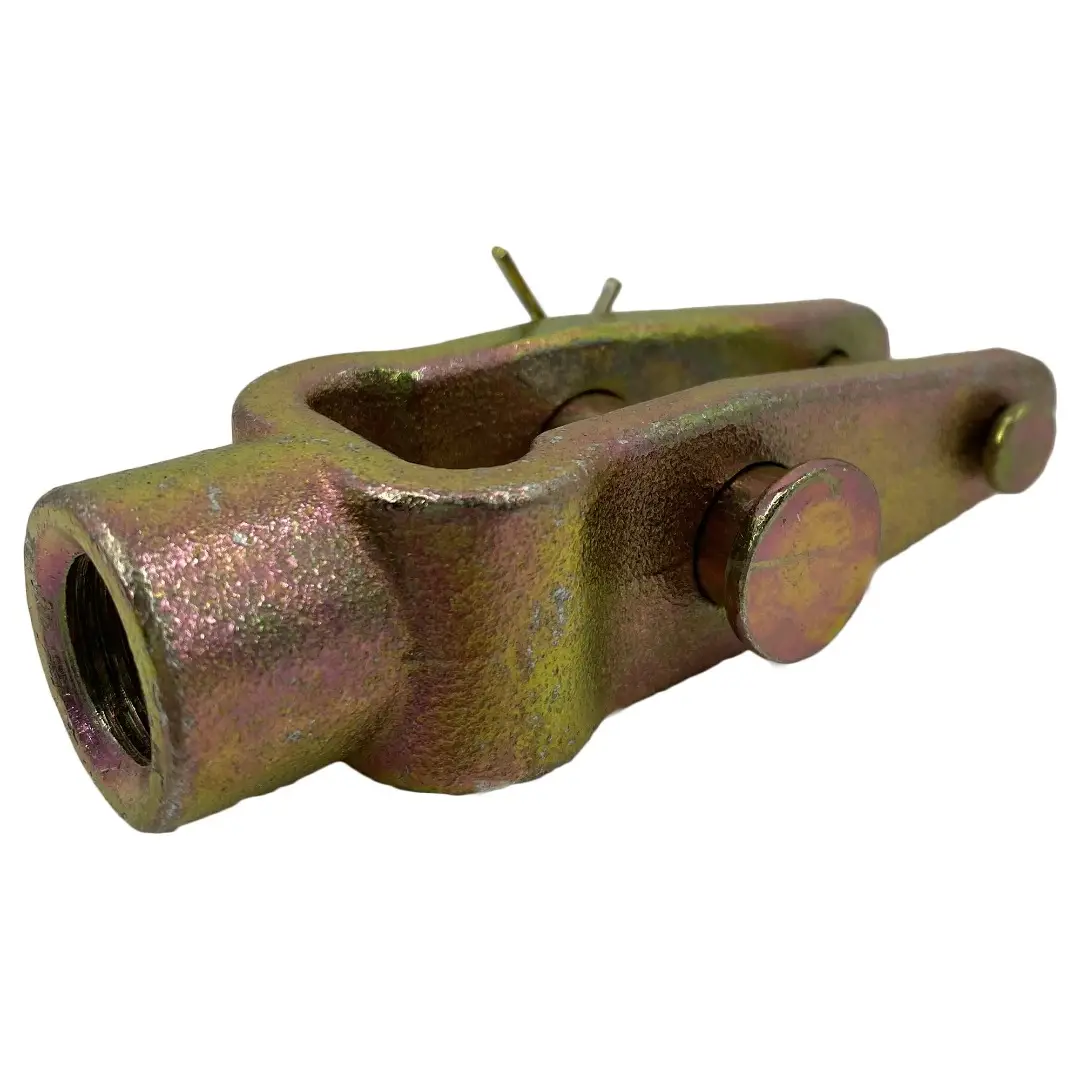

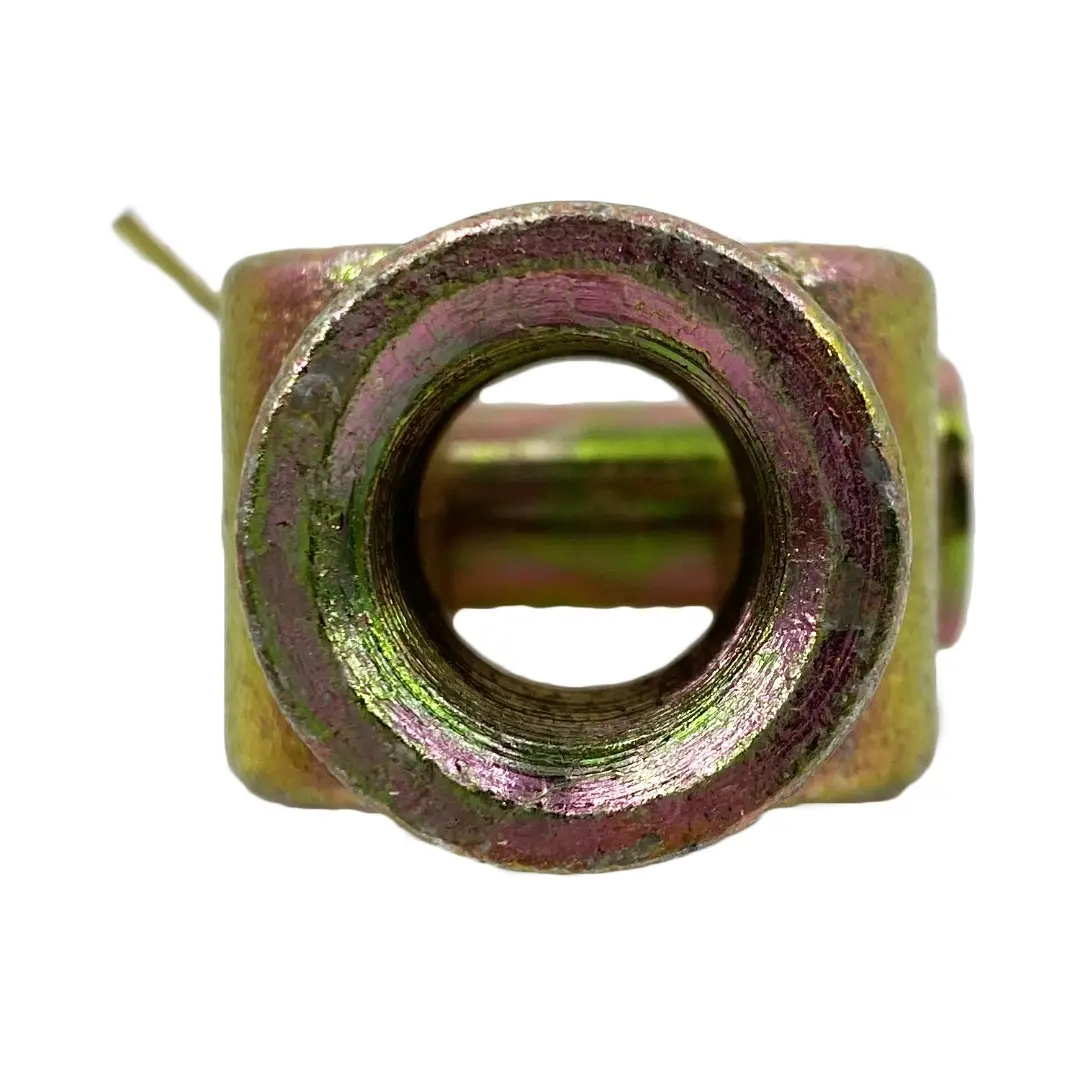

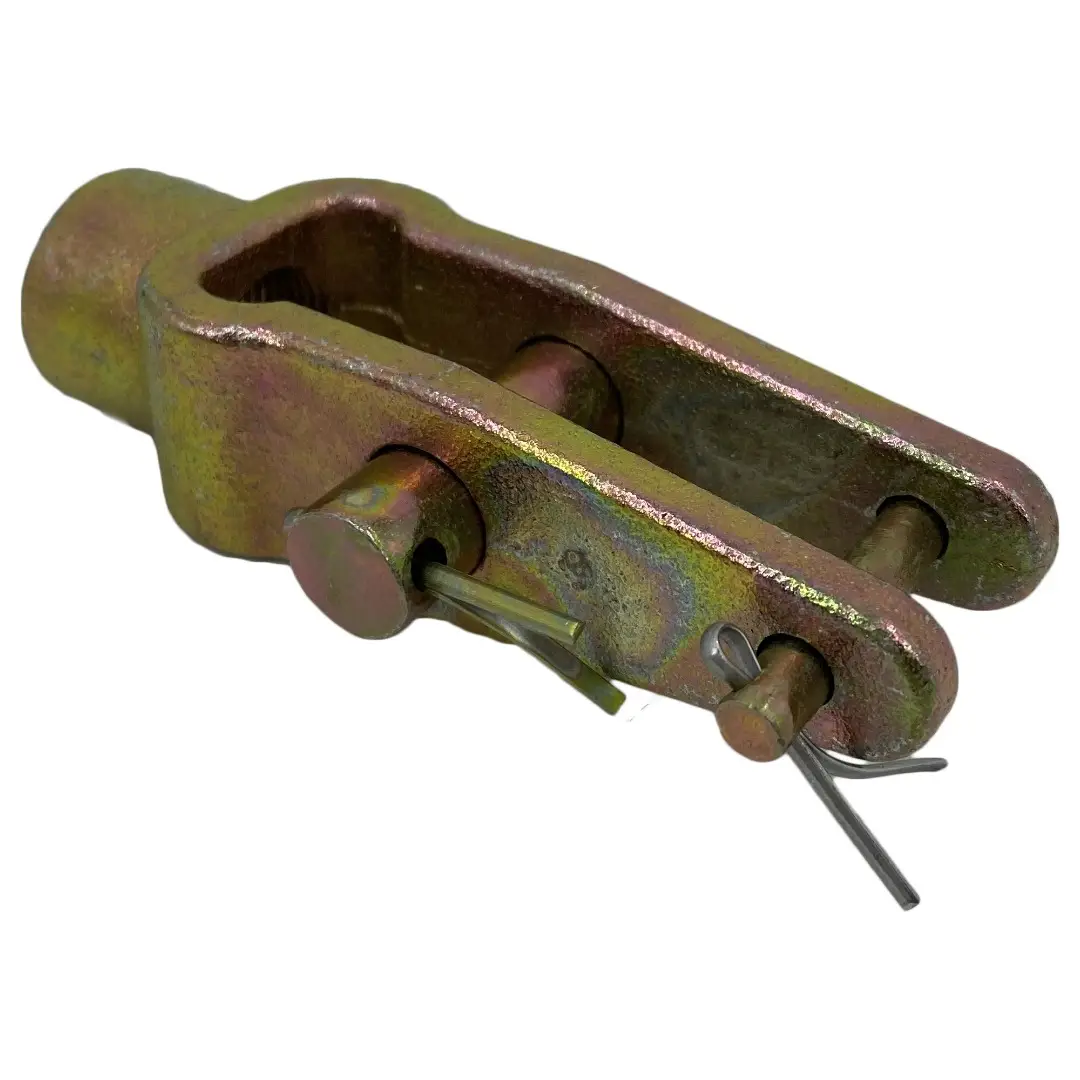

Double pinned straight clevis kit
5/8-18" threaded
Includes pins
5/8-18" threaded
Includes pins
| Haldex | CQ36541 |
| Fleet Line | AS3000 |
| Traction | ROCR810019 |
| NAPA | TWD R810019 |
| Euclid | E11430, E11430A |
| Newstar | S-19077 |
| Dayton | 05-578 |
| Automann | 179.YK5005 |
| Autocar | 20370160 |
| Freightliner | A-680-996-05-40, A6809960540 |
| Western Star | 764043403, 76404-3403 |
| Thomasbilt | 61130796 |
| Misc | 5107625, TDA R810019, |
| Meritor | R810019, R801713, MER810019, 1245-P-1030, 1245P1030, 1245T332, 1245Z1066 |
Distance between clevis pins center to center: 1.02"
Clevis pin size: 1/2" pin, 1/4" pin
Thread: 5/8"-18
Clevis pin size: 1/2" pin, 1/4" pin
Thread: 5/8"-18
| Longest Side | 4.33 in. |
| Median Side | 1.57 in. |
| Shortest Side | 0.98 in. |
| Weight | 0.55 lbs. |
