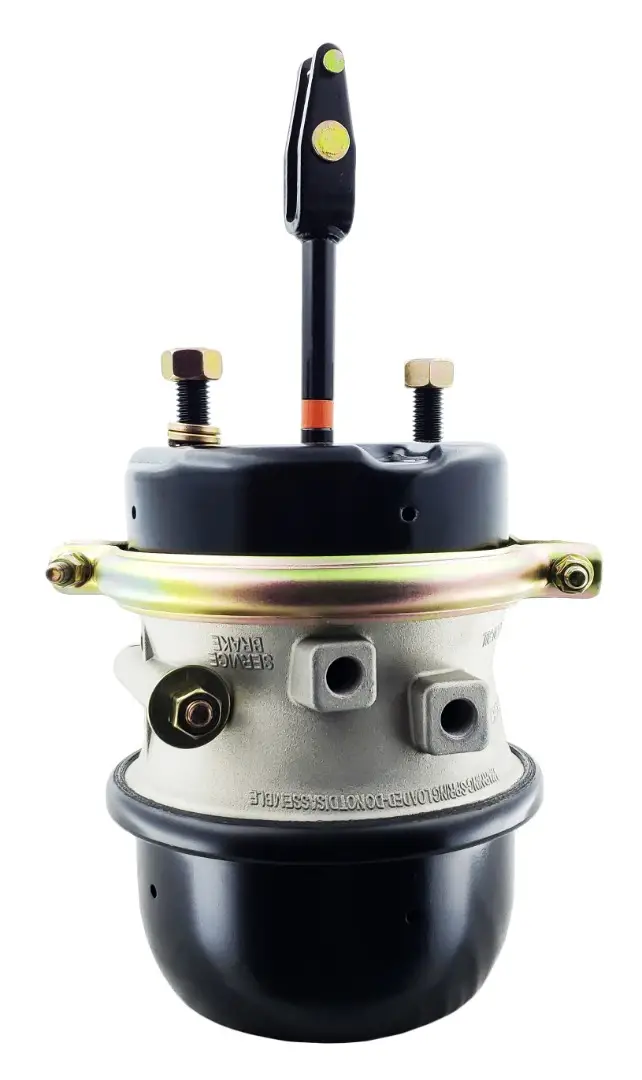

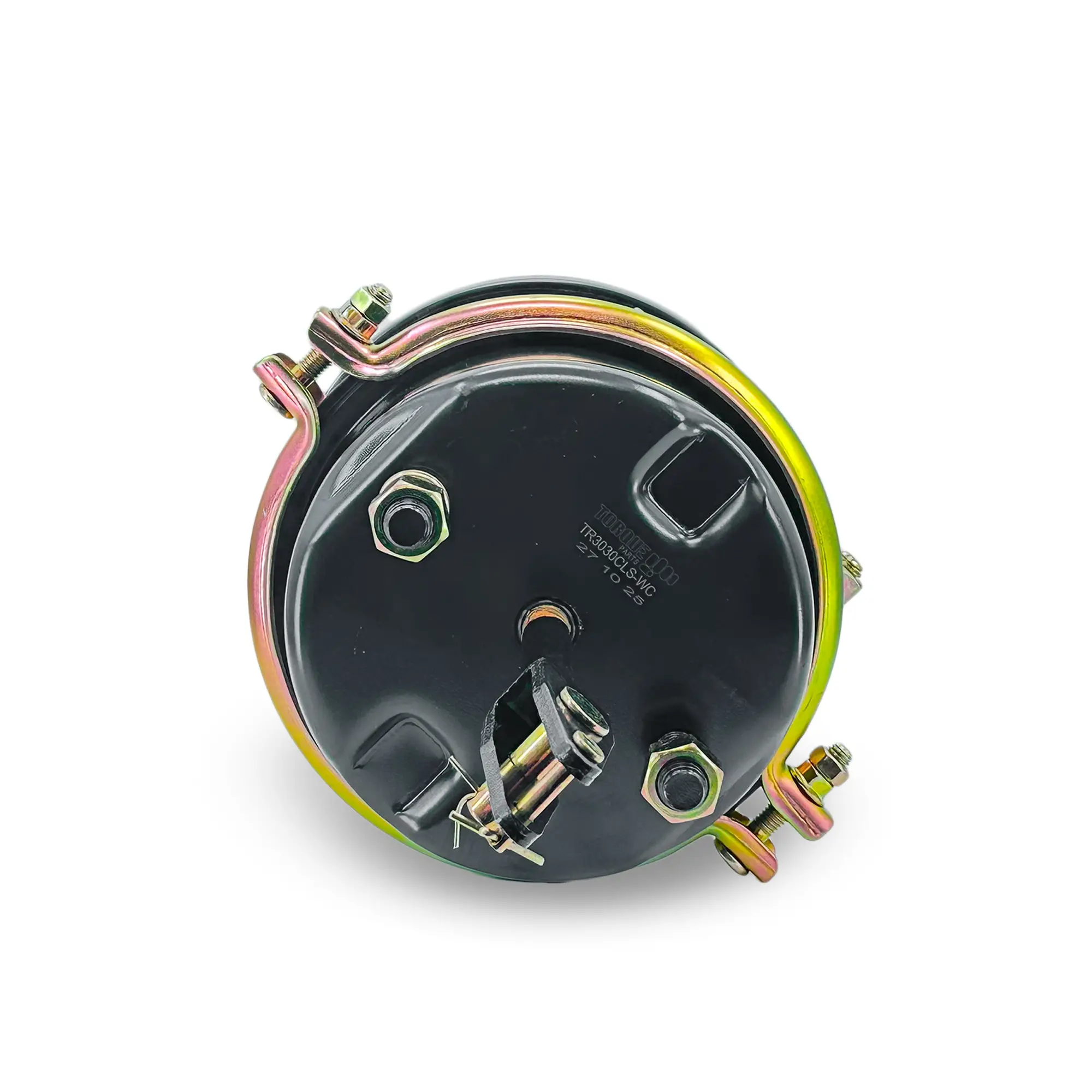

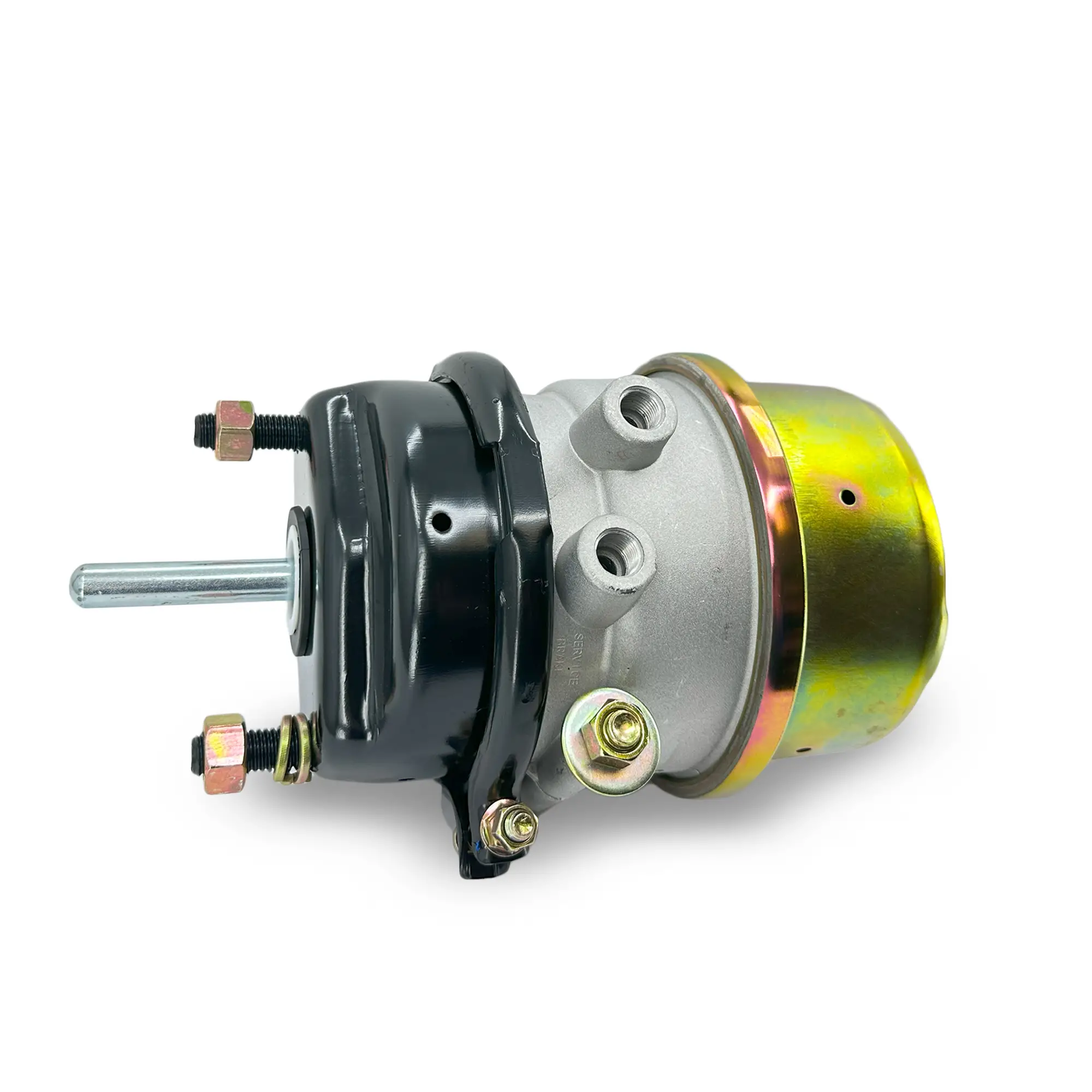

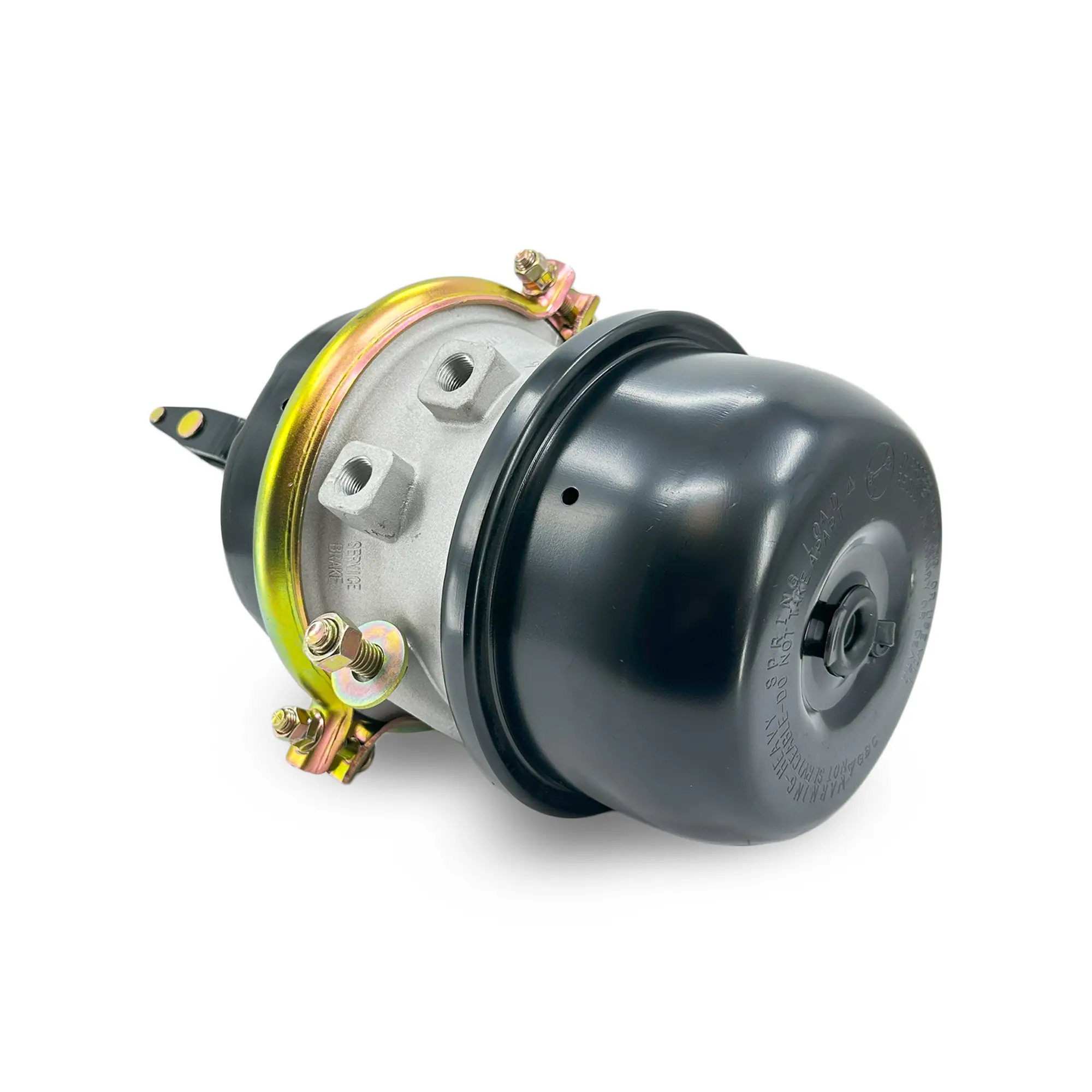

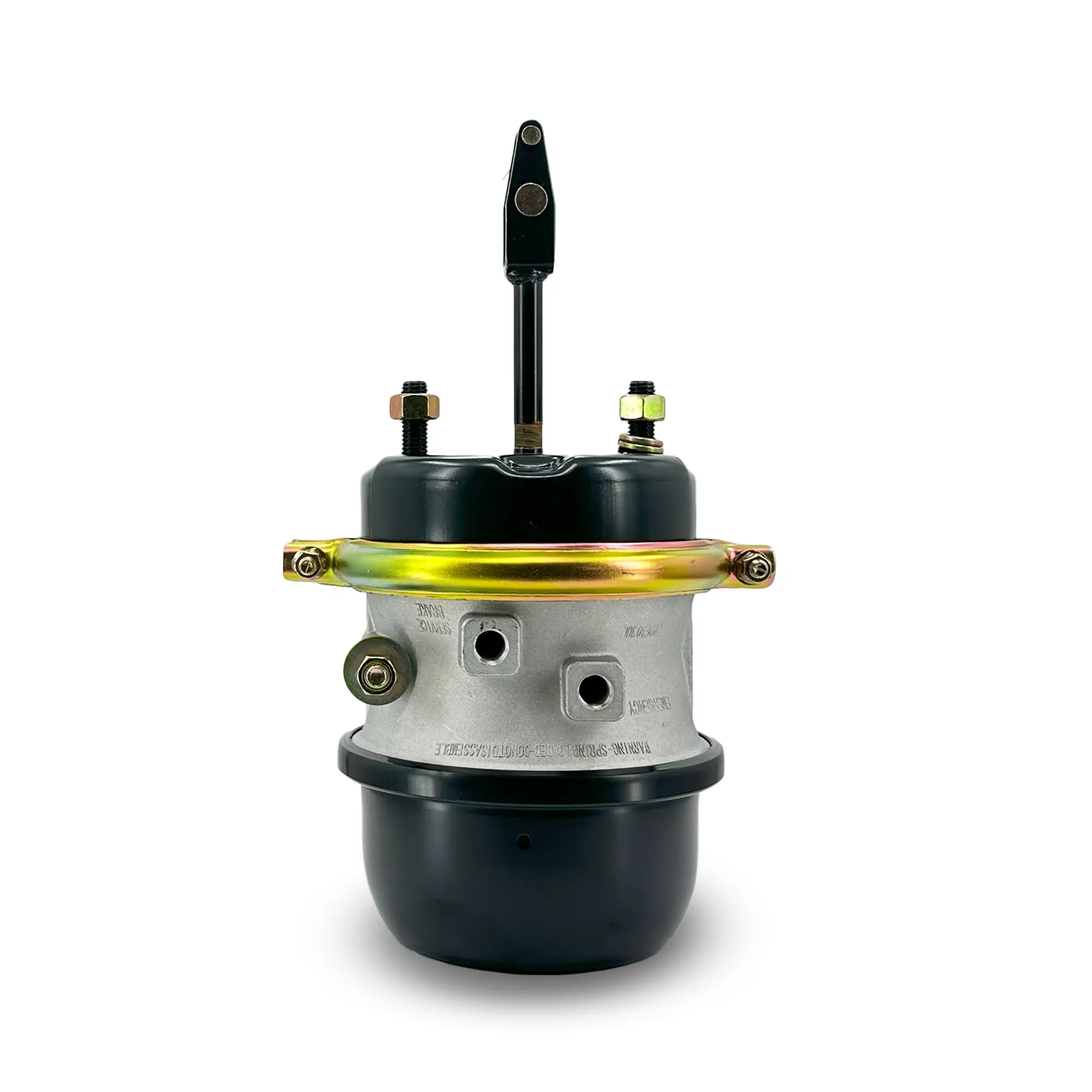

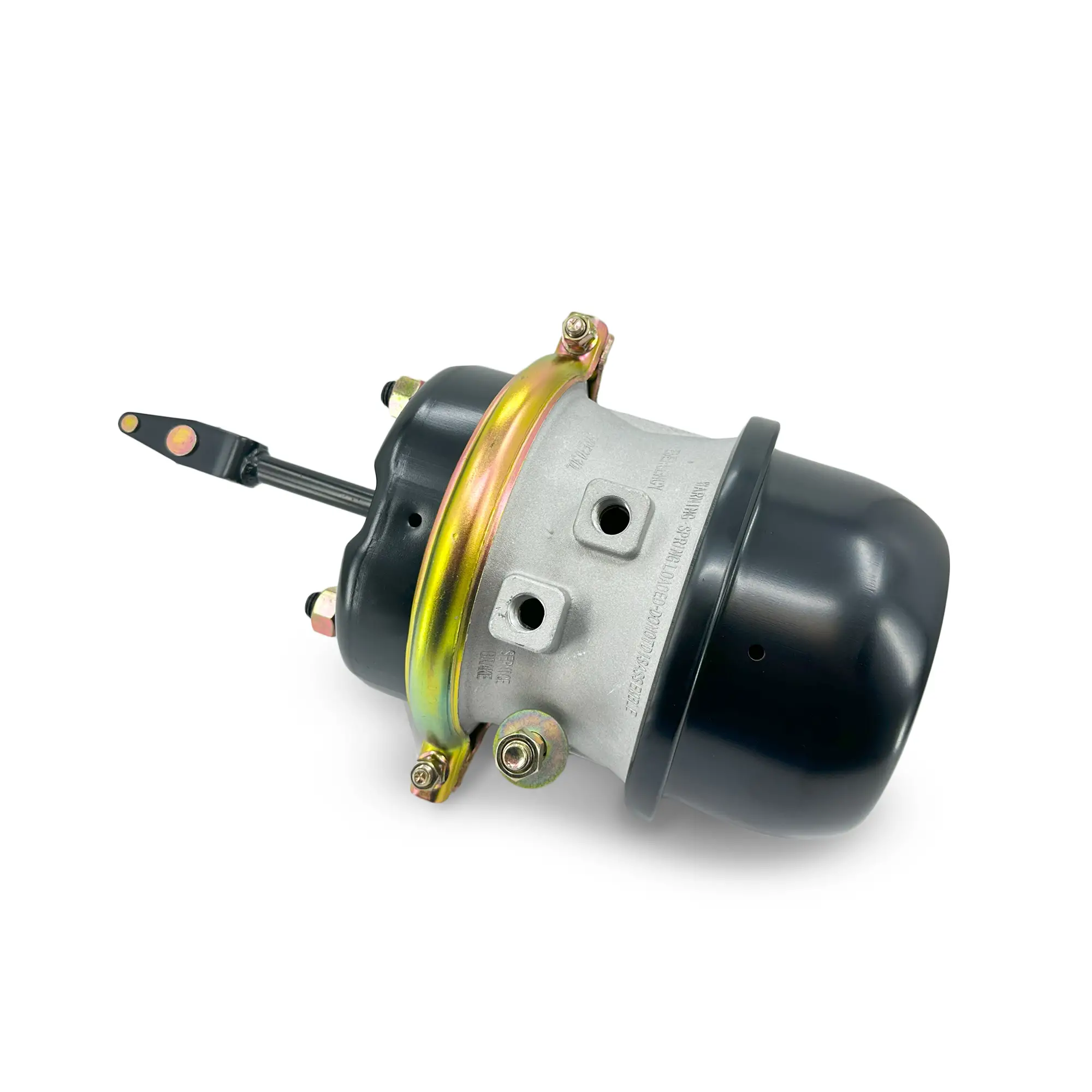

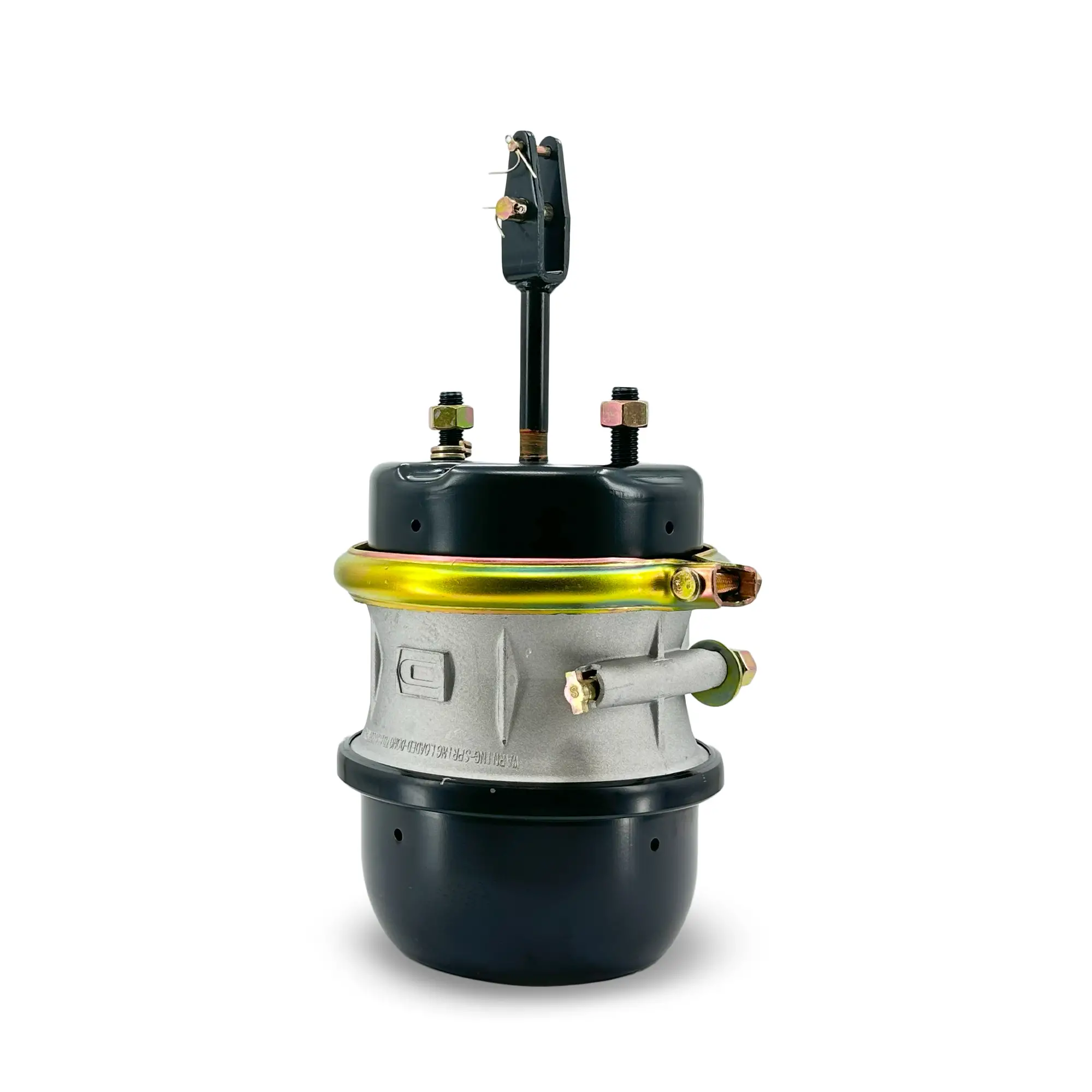

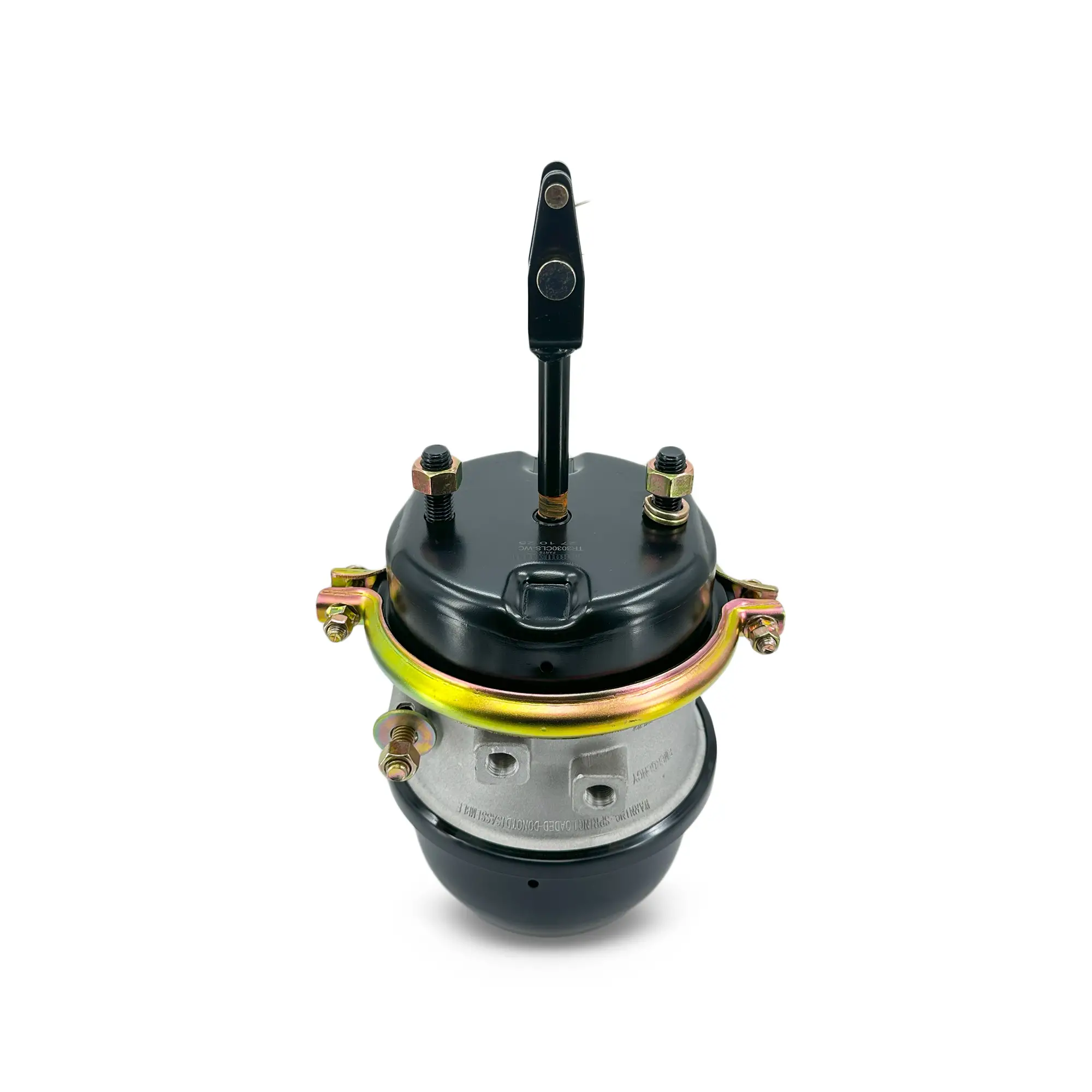

Long Stroke Air Brake Chamber Type 3030 Welded Clevis
- Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
- Superior Power Spring Technology; Advanced powder coating process;
- Resists corrosion and fatigue
- Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications
- Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
- Superior Power Spring Technology; Advanced powder coating process;
- Resists corrosion and fatigue
- Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications
| Automann: | 179.SB3030SLW225 |
| Bendix: | NT3030ELSWC, NT3030ELS-WC |
| Freightliner: | HDX1373030215 |
| Haldex: | GC3030LCW, LC3030LCW |
| IHC: | 3541891C91 |
| Others: | BTS-3030LS-WCR, GTA-3030LS-WCR |
| Actuator Type Size: | 3030 |
| Stroke Type: | Long |
| Available Stroke: | 3", 76mm |
| Length from mounting bracket to end of Spring Housing: | 9-7/8", 251mm |
| Length of Piggyback: | 7-3/8", 187mm |
| Dimension at rolled Spring Housing flange: | 8-5/16", 211mm |
| Dimension at Service Clampband: | 10-3/16", 259mm |
| Pushrod Length from face of Service Housing: | 1" |
| Distance to Clevis Pin centerline from face of Service Housing: | 2-1/4" |
| Weight: | 21.9 lbs. , 9.9 kg. |
| Longest Side | 16.93 in. |
| Median Side | 9.65 in. |
| Shortest Side | 8.23 in. |
| Weight | 19.17 lbs. |
