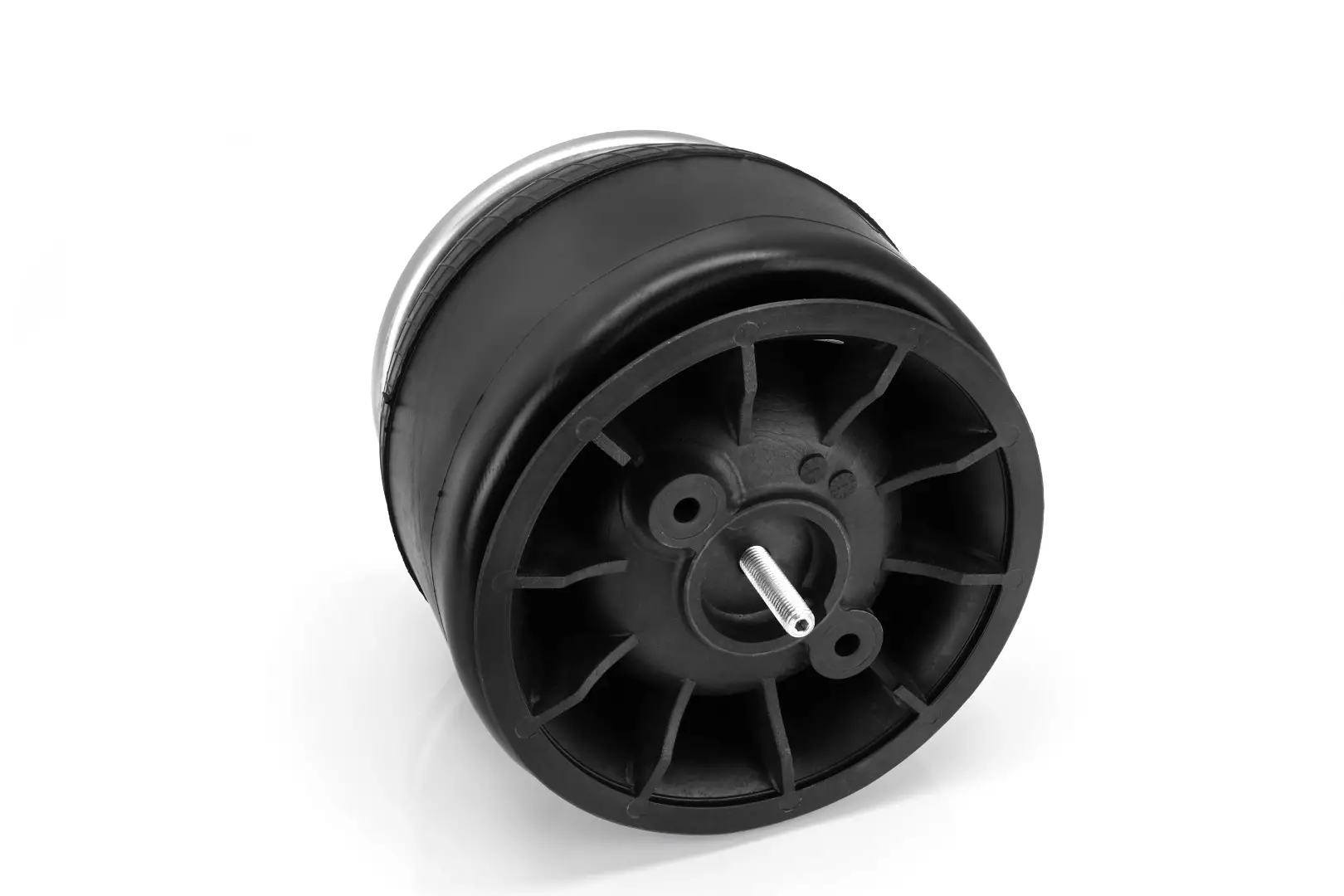

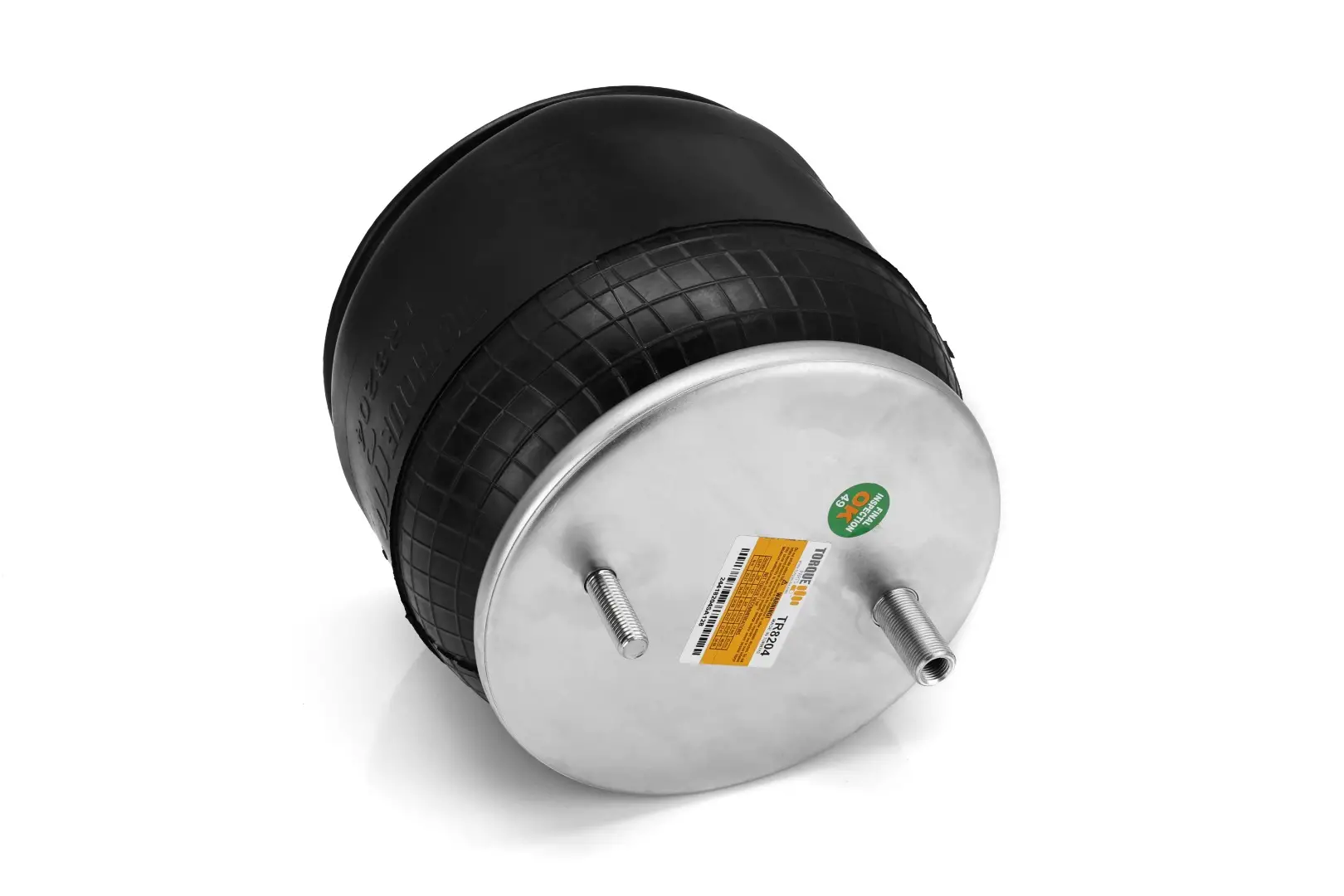

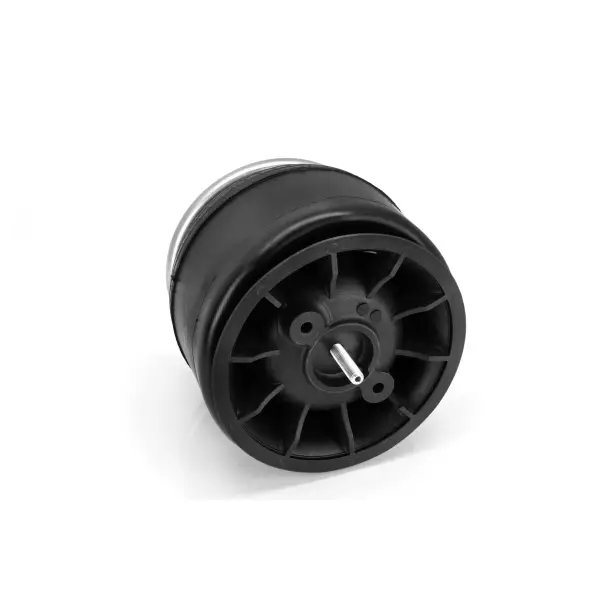

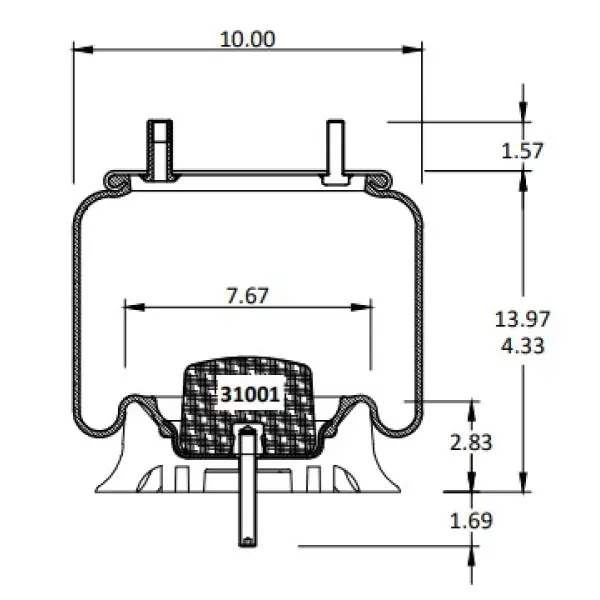

Trailer Air Spring
Automann: | 566.ER8204 |
Binkley: | XBSPN05337, XB-SPN-053-37 |
Binkley Newlite: | NS 190-16 |
Contitech: | 161234, 64456, 9 10-12 P 484 |
Firestone: | 8204, W013588204, W01-358-8204 |
Goodyear: | 1R12508, 1R12-508, 1R12522, 1R12-522, 1R12608, 1R12-608 |
Holland (Neway): | 905-57-173, 905-57-223 |
Neway: | 90557173, 90557223, G2298204200, XDSPN05360 |
Triangle: | 8484, AS-8484 |

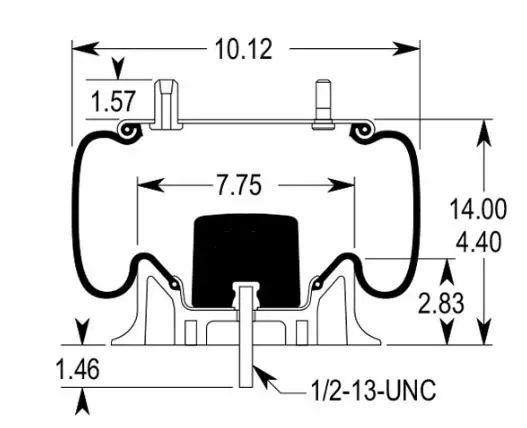

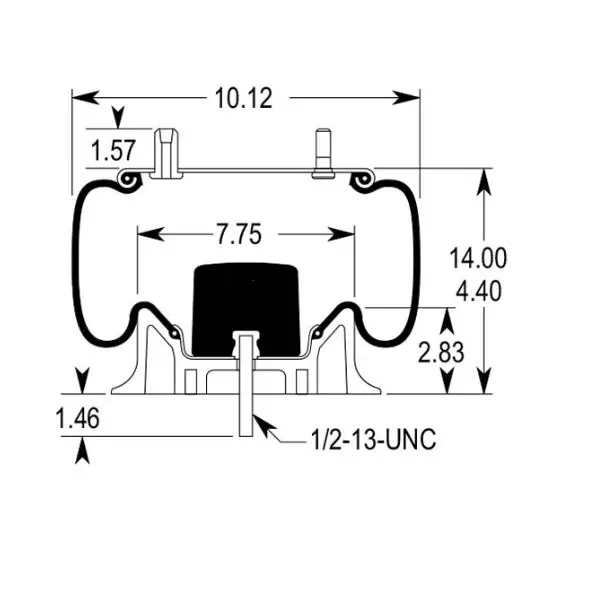

Extended Height: | 14.00" |
Compressed Height: | 4.40" |

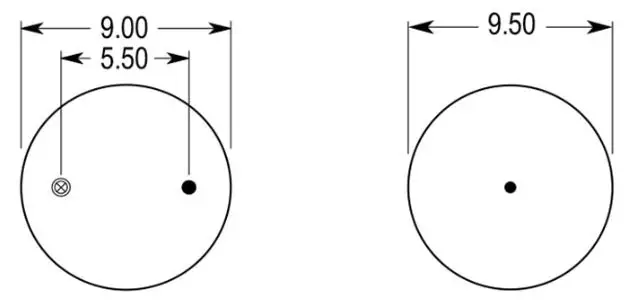

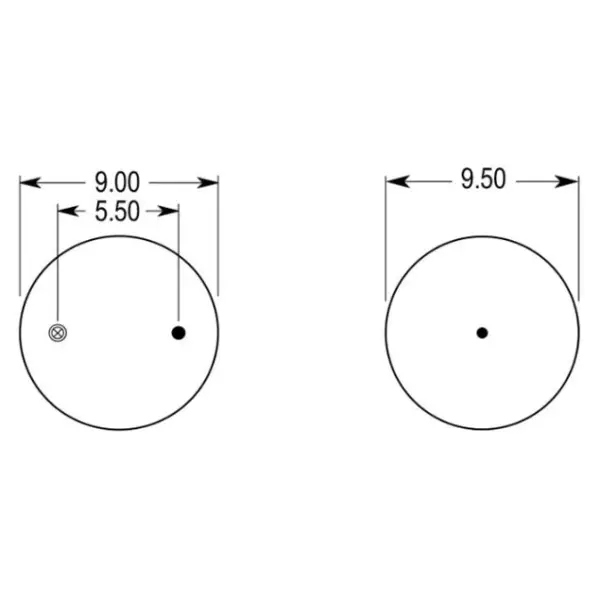

Top Plate Width: | 9.00" |
Piston Width: | 9.50" |
Weight: | 13 lbs |
Longest Side | 12.40 in. |
Median Side | 10.04 in. |
Shortest Side | 10.04 in. |
Weight | 12.30 lbs. |
