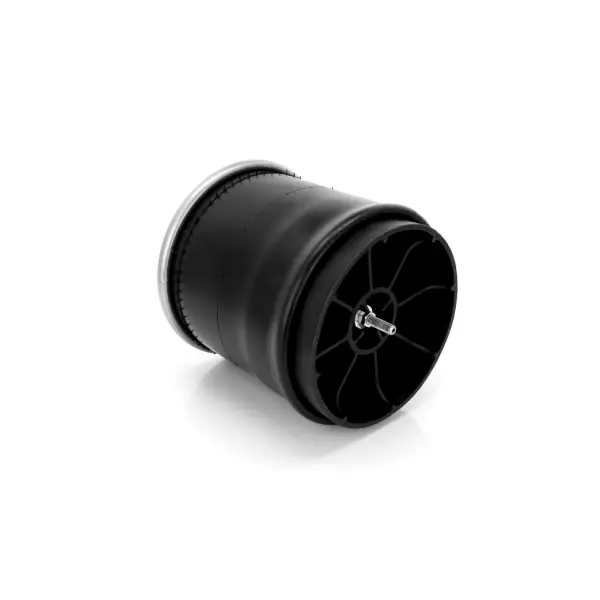

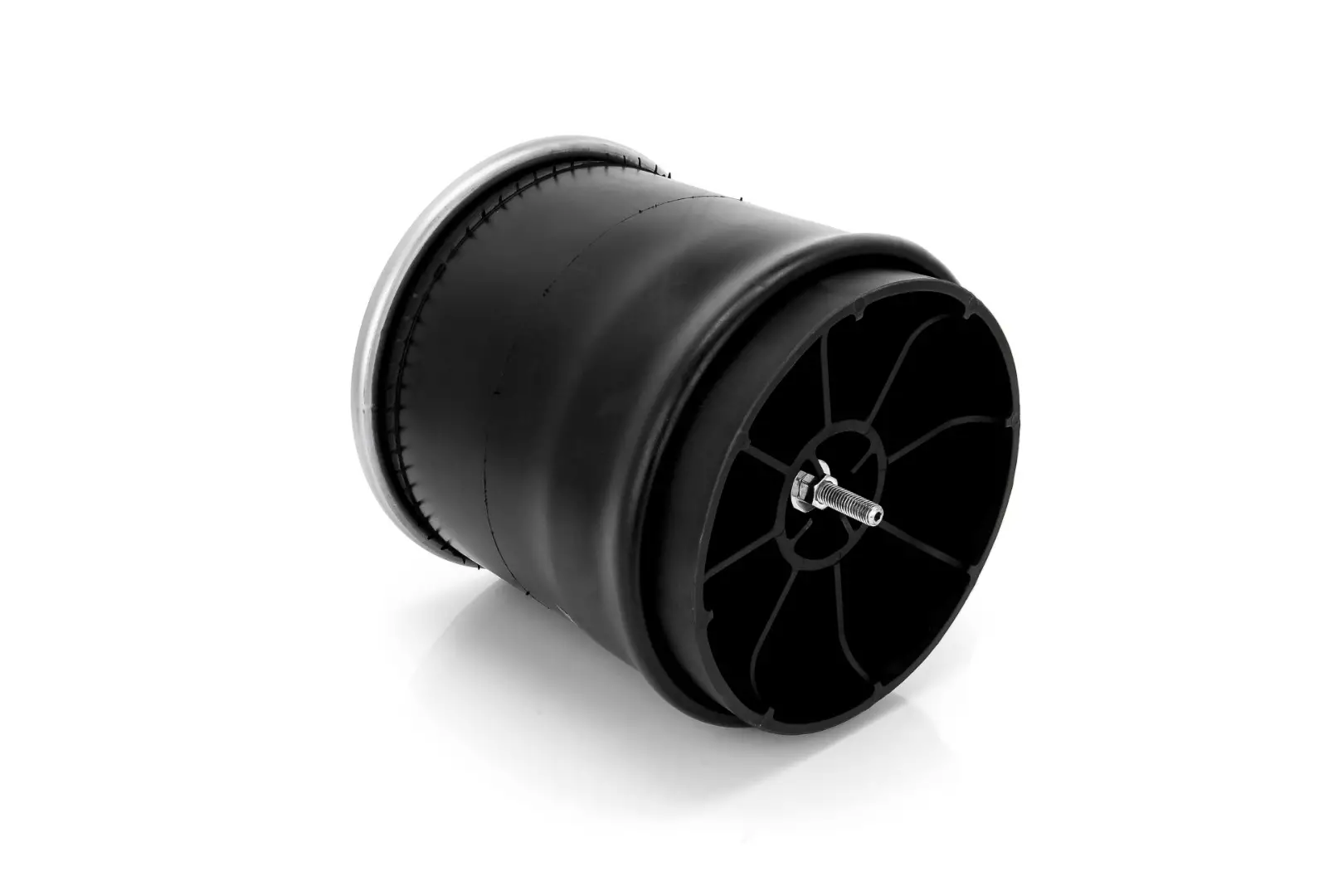

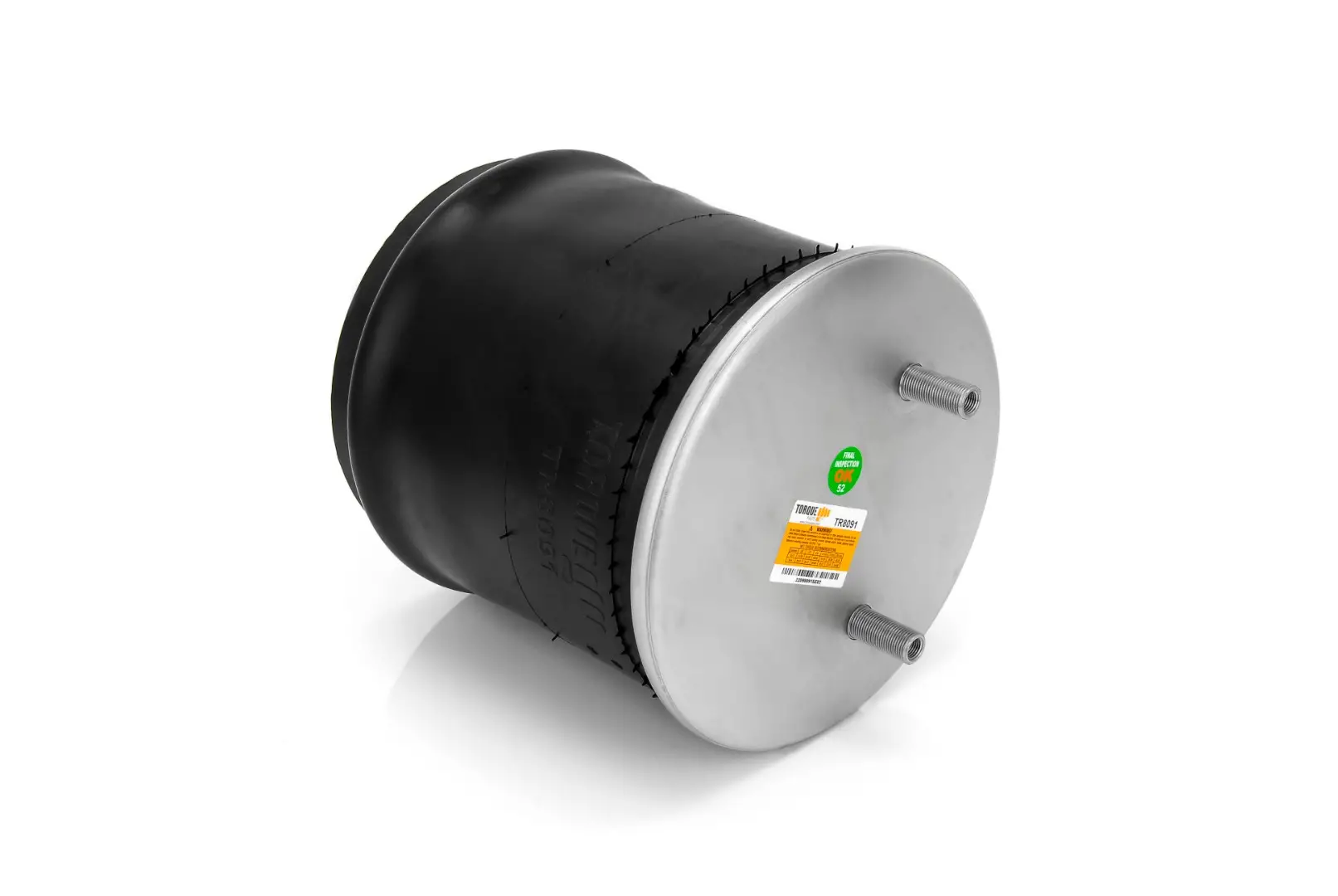

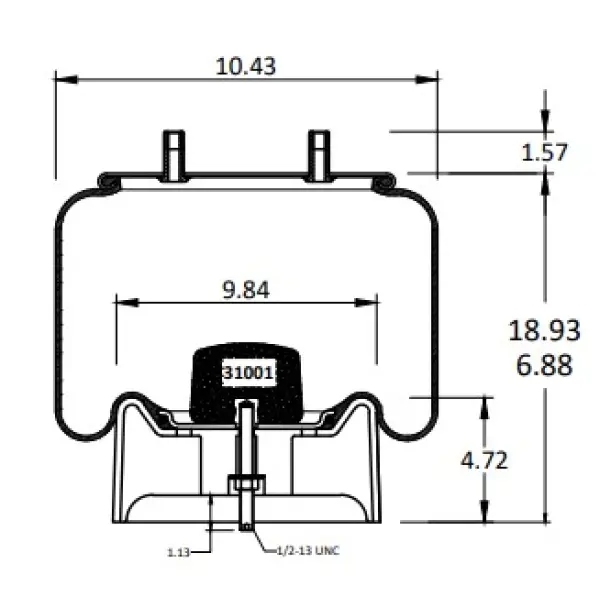

Trailer Air Spring for Hendrickson AAT 25K Models
| Contitech: |
1110.5A-16P523, 64421 |
| Firestone: |
8091, W013588091, W01-358-8091 |
| Goodyear: |
1R14093, 1R14-093, 1R14171, 1R14-171 |
| Hendrickson: |
S20901, S-20901, S21784, S-21784 |
| Hendrickson Trailer: |
C20901, C-20901, S-20901, S-21784 |
| IHC: |
1R14242, 1R14-242 |
| Intraax: |
# AA250T (reuse metal disk) / Van Traax # HKA-250 (reuse metal disk) |
| Ridewell: |
1000156 |

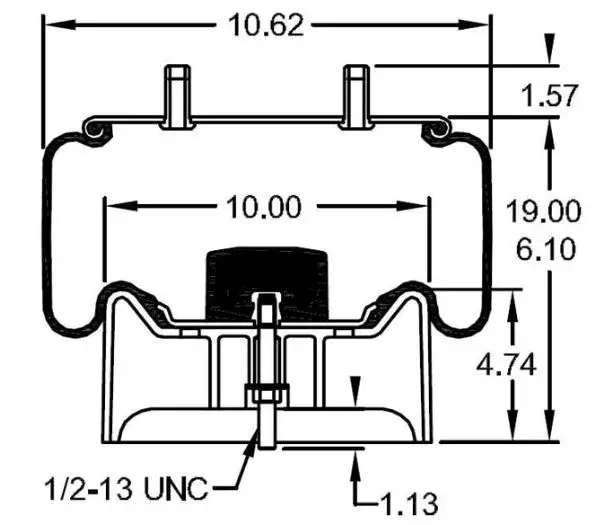

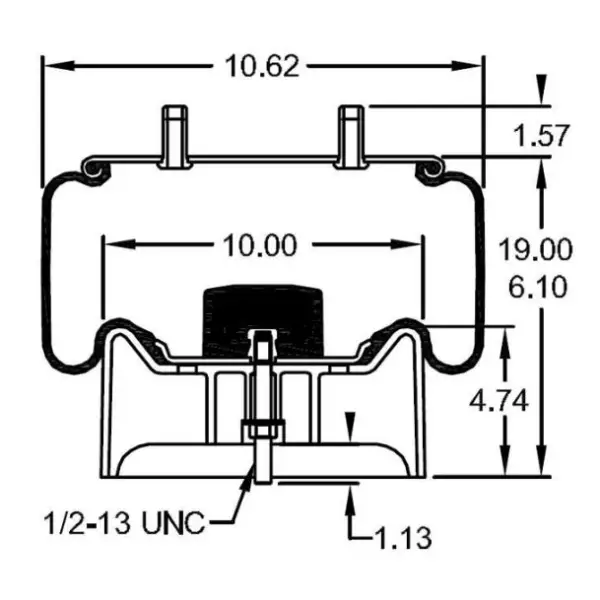

| Extended Height: |
19.00" |
| Compressed Height: |
6.10" |

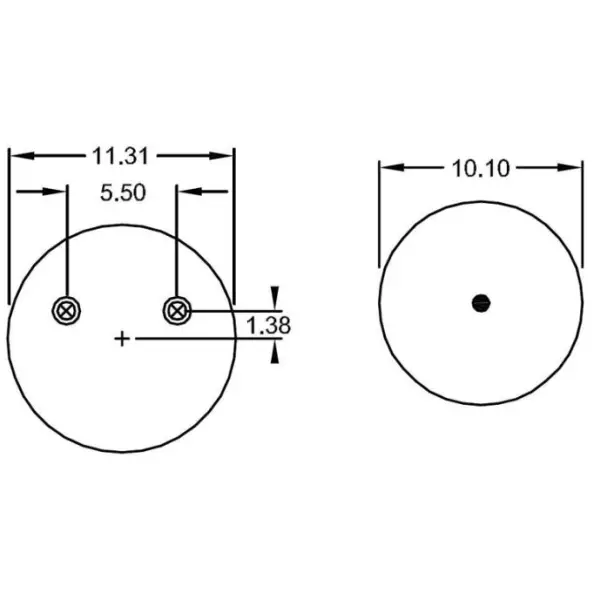

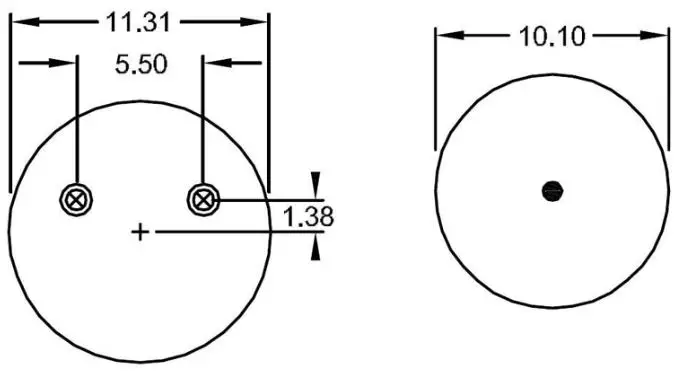

| Top Plate Width: |
11.31" |
| Piston Width: |
10.1 |
| Weight |
17.9 |
| Longest Side | 14.57 in. |
| Median Side | 11.42 in. |
| Shortest Side | 11.42 in. |
| Weight | 17.52 lbs. |
