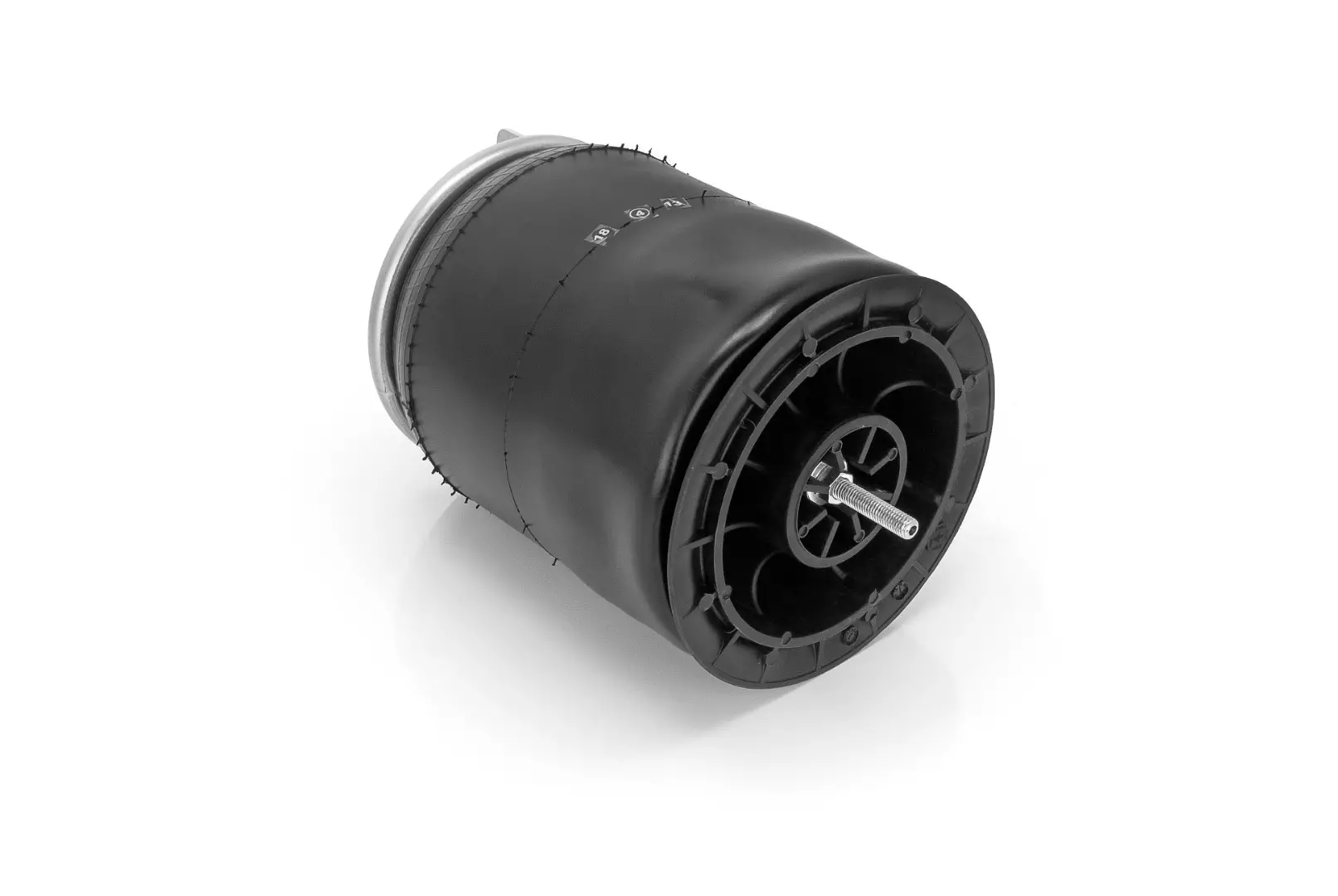

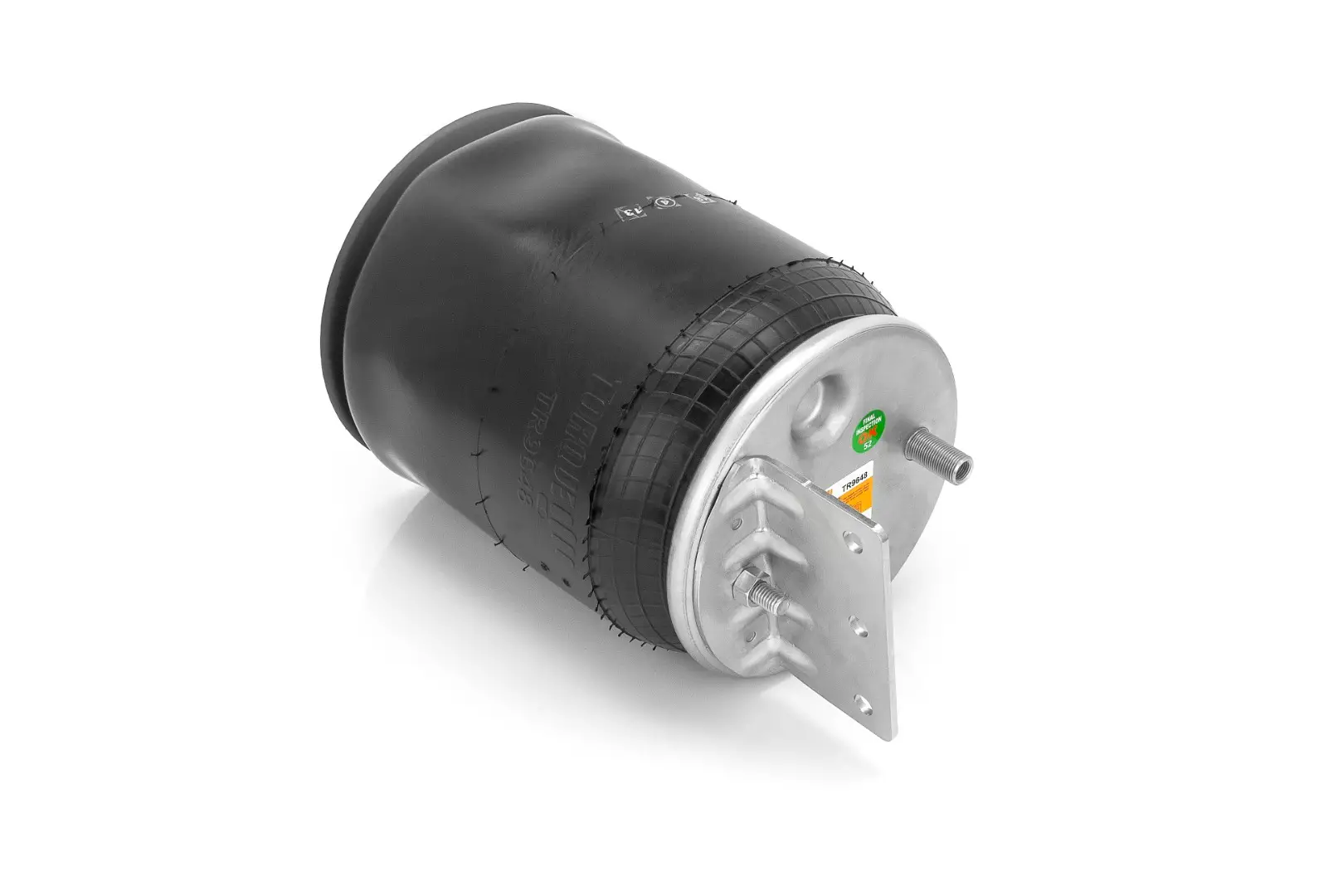

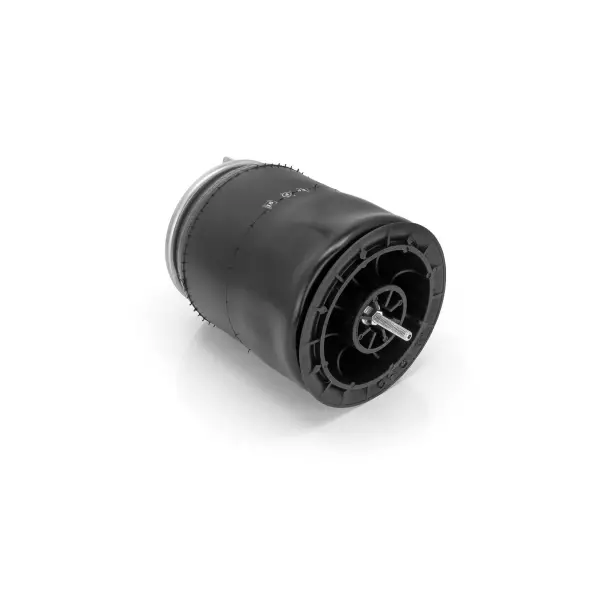

Air Spring for Navistar Trucks
| Automann: | 566.ER9648 |
| Contitech: | 910-18.5P456 |
| Firestone: | 9648, W01-358-9648 |
| Goodyear: | 1R12398, 1R12-398, 1R12-538 |
| IHC: | 2027911C1, 2027911C2, 2027911C3 |
| Navistar: | 2027911C-1, 2027911C-2 |
| Triangle: | 8456, AS-81068 |

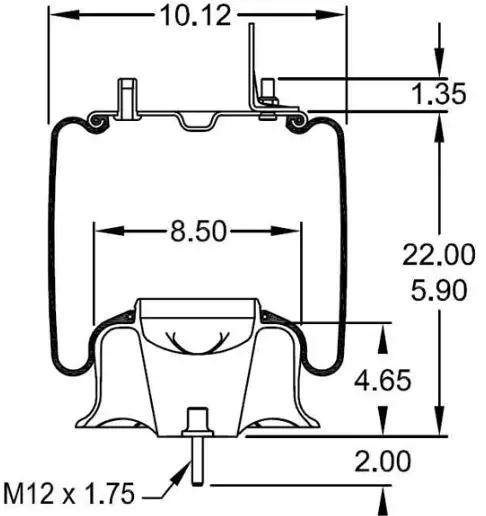

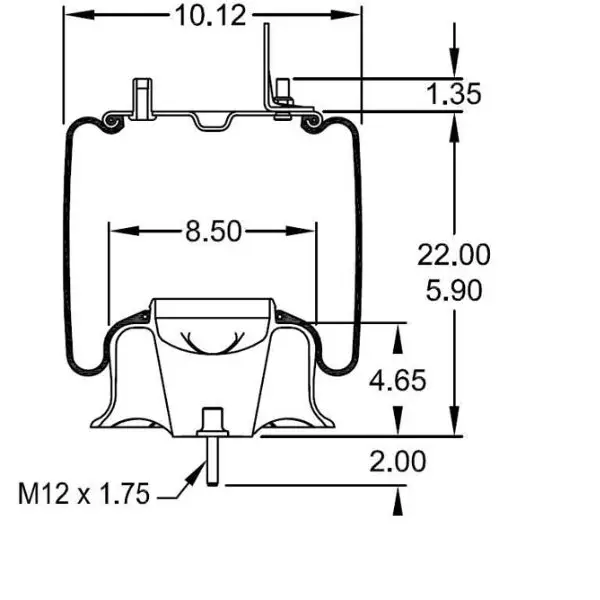

| Extended Height: | 22.00" |
| Compressed Height: | 5.90" |

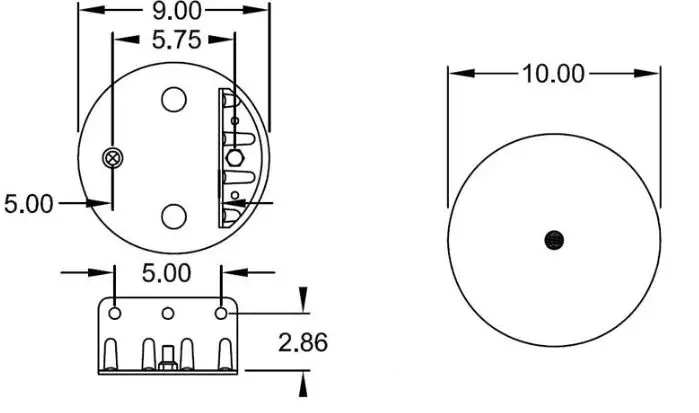

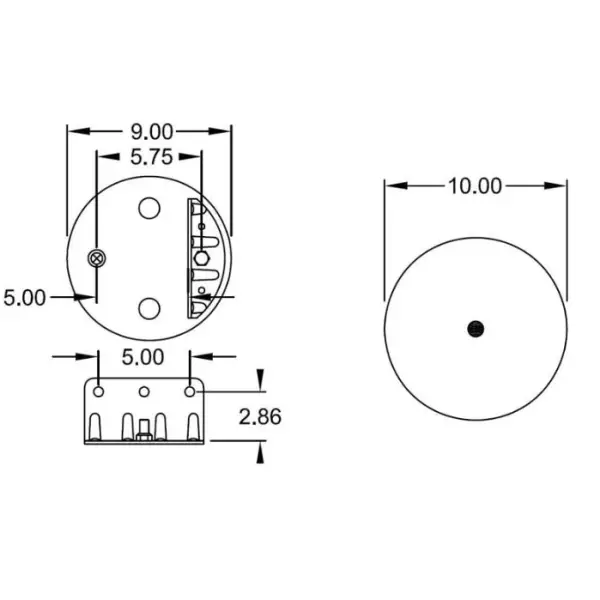

| Top Plate Width: | 9.00" |
| Piston Width: | 10.00" |
| Weight: | 15.40 lbs |
| Longest Side | 18.90 in. |
| Median Side | 10.63 in. |
| Shortest Side | 10.63 in. |
| Weight | 15.22 lbs. |
