Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032
Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032
Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032
Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032
Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032

Convoluted Air Spring Replaces S-12405, 3B12-319, 64560, 8032

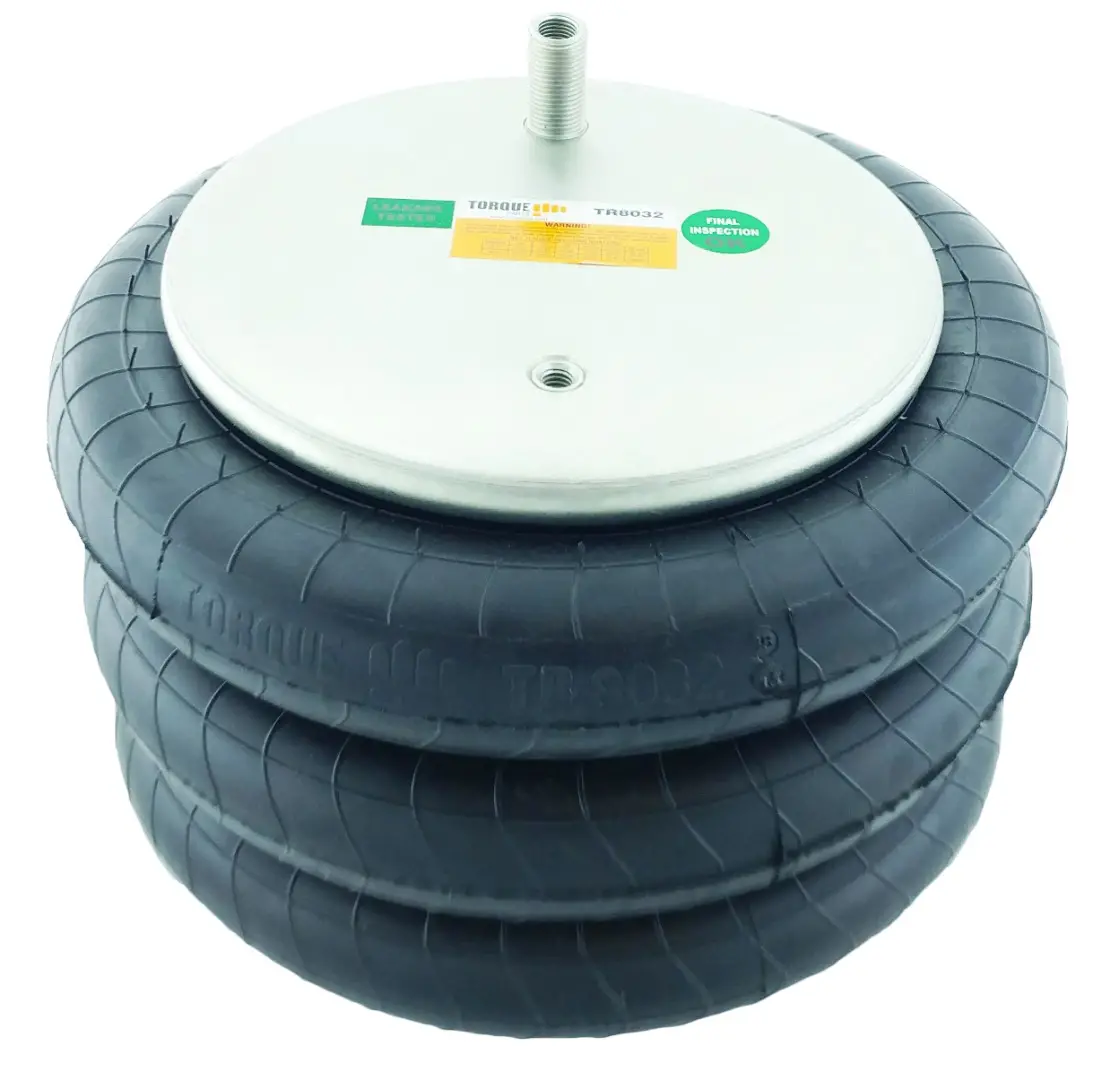

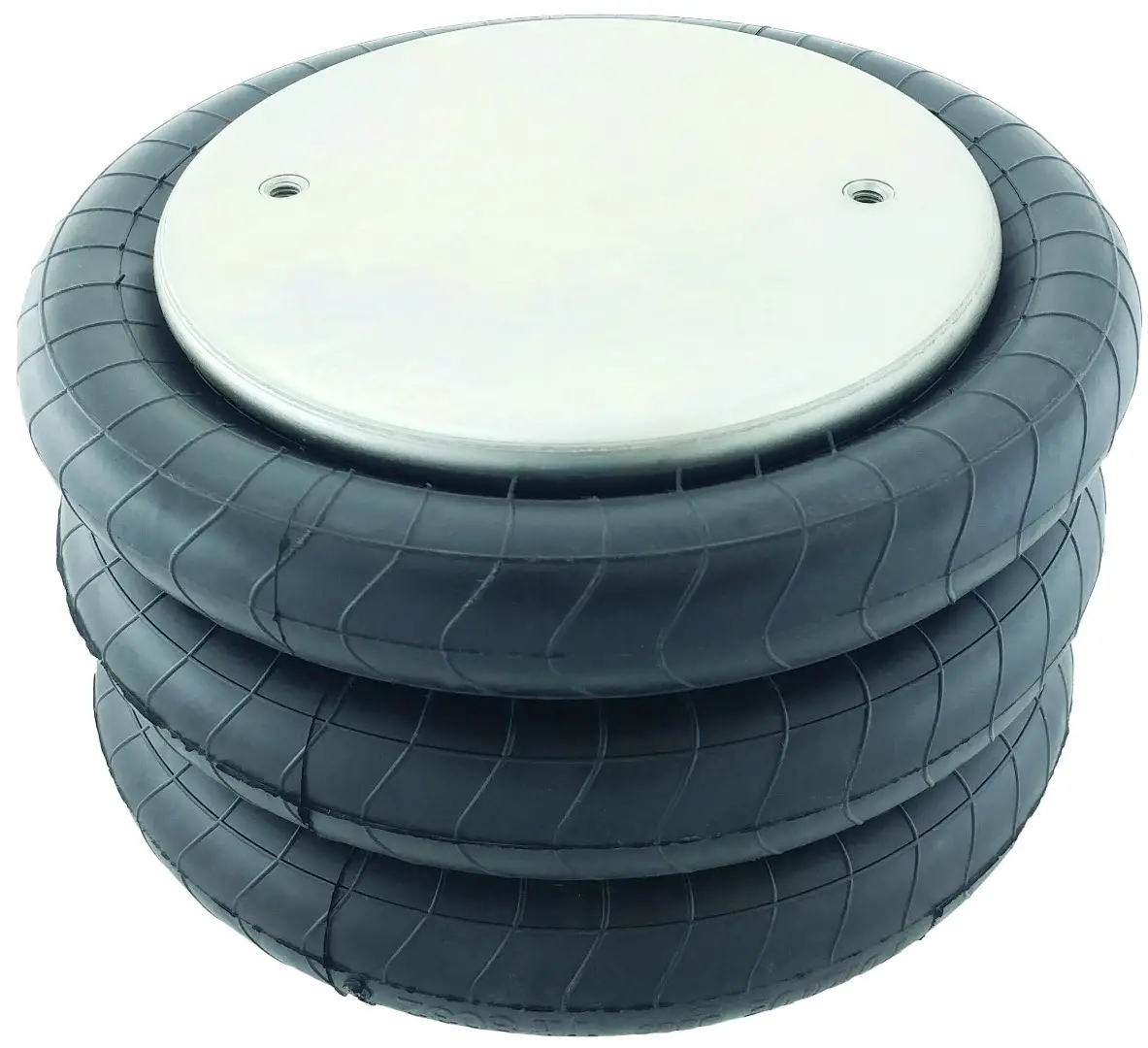

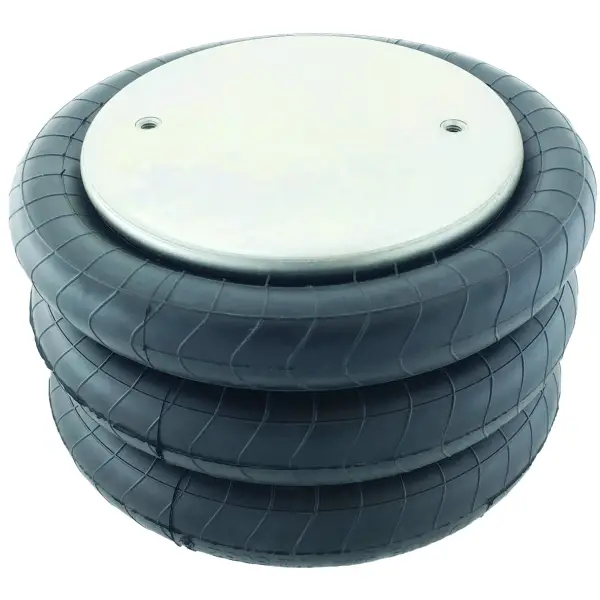

Description : Convoluted Air Spring

Part Number : TR8032

Click to see price

Convoluted Air Spring

Contitech: 64560, FT 330-29 413
Firestone: 8032, W01-358-8032, W01-358-7995
Goodyear: 3B12319, 3B12-319, 3B12-319 / 3B12-329
Hendrickson: S12405, S-12405
Triangle: 4413,  AS-4413
Watson & Chalin: AS-0048

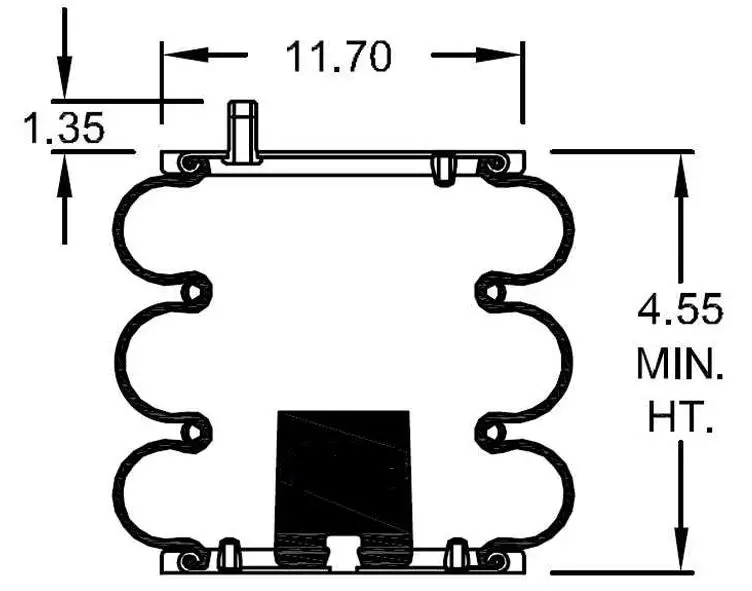

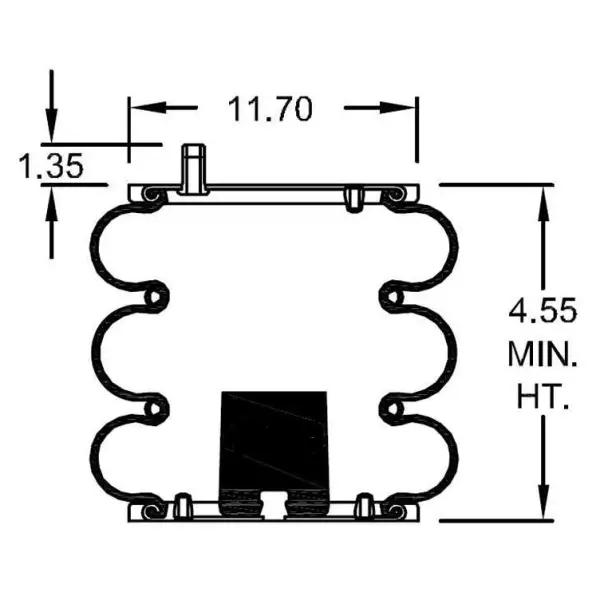

Compressed Height:   4.55"

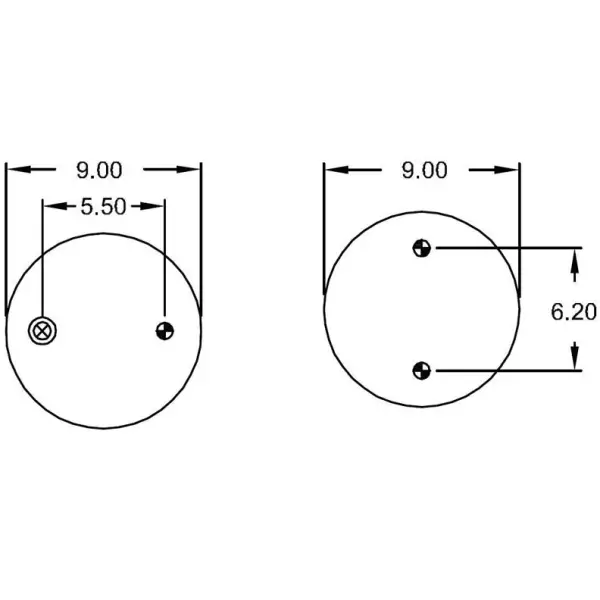

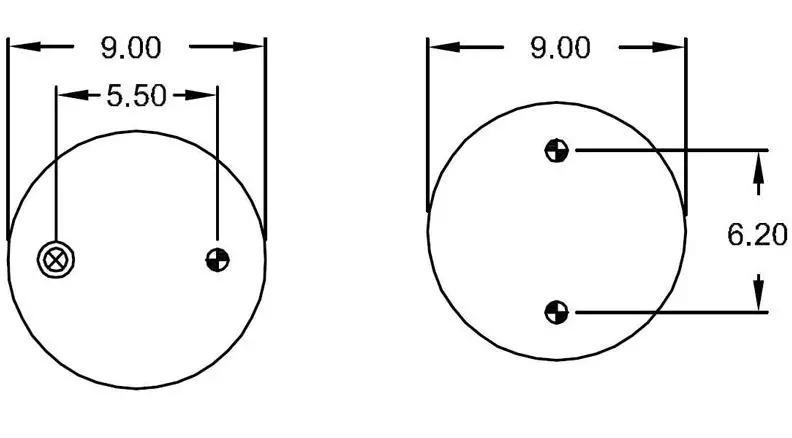

Top Plate Width:   9.00"
Piston Width:   9.00"
Weight:   15.3 lbs
