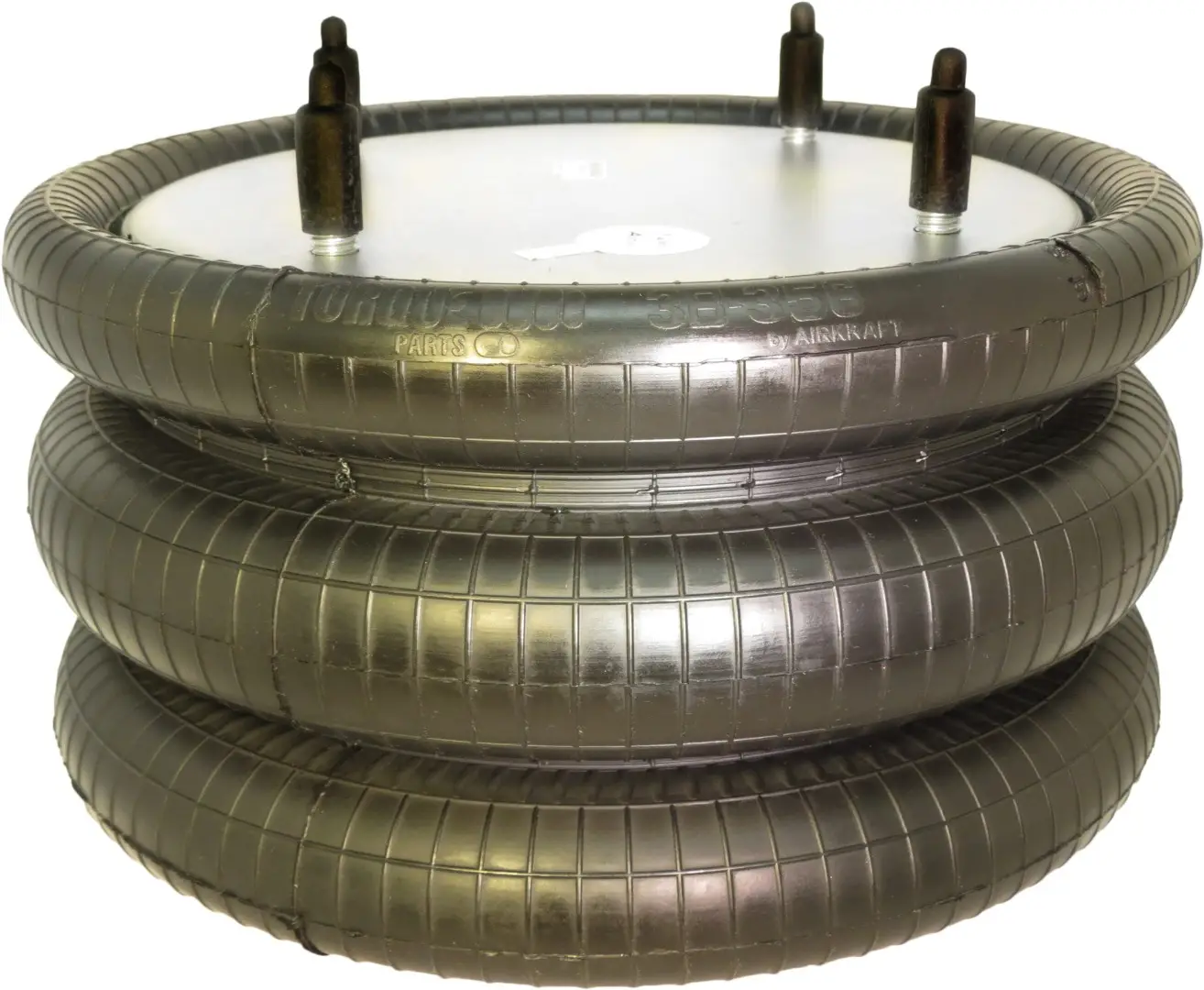

Convoluted Air Spring
Contitech: | 64505, FT 530 32 333, FT 530-32 333 |
Firestone: | 7800, 7848, W013587800, W01-358-7800, W013587848, W01-358-7848 |
Goodyear: | 3B14360, 3B14-360 |
Granning: | 4514 |
Hendrickson: | S13047 |
Hendrickson Trailer: | S13047, S-13047 |
IHC: | 554804C1 |
Leland: | SC2030 |
Loadguard: | SC2030 |
Neway: | 57007800 |
Ridewell: | 1003587800C, S1505C |
SAF Holland: | 570-07-800 (HOLLAND HITCH 4514) |
Triangle: | 4333 |

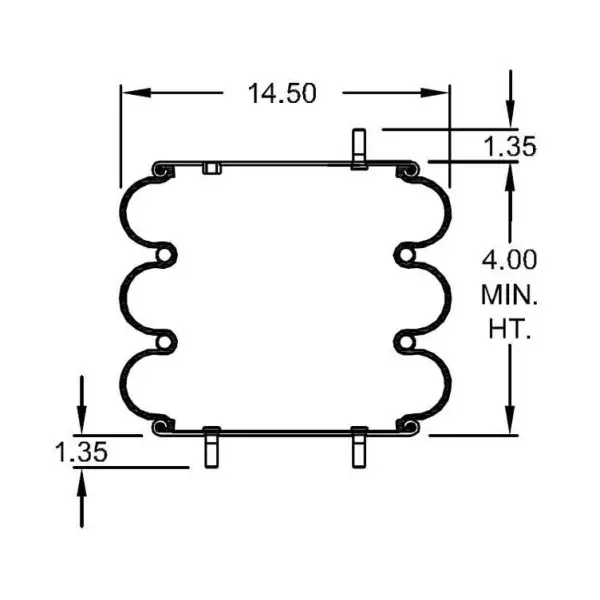

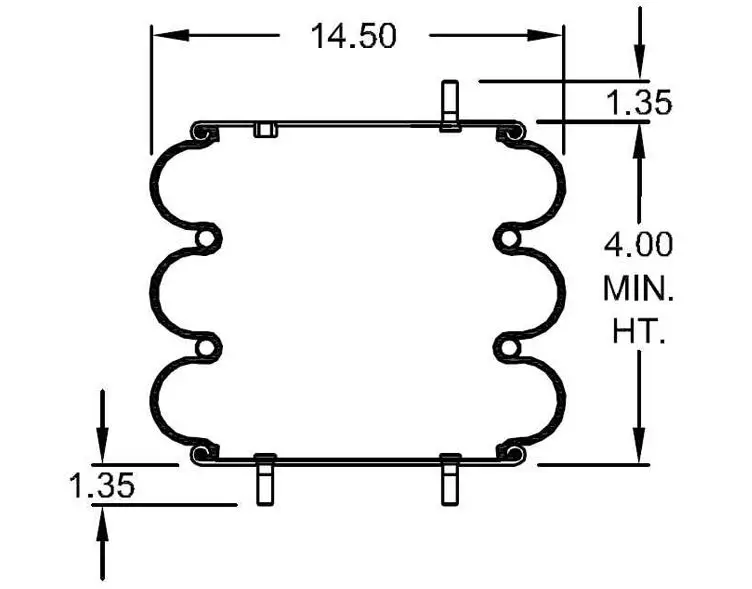

Compressed Height: | 4.00" |

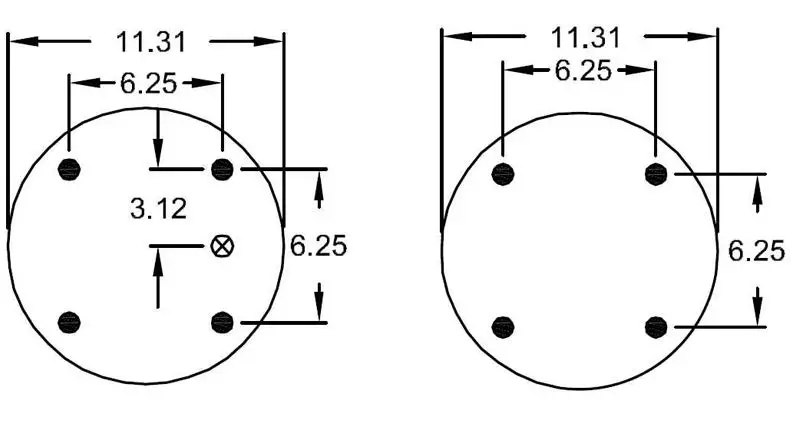

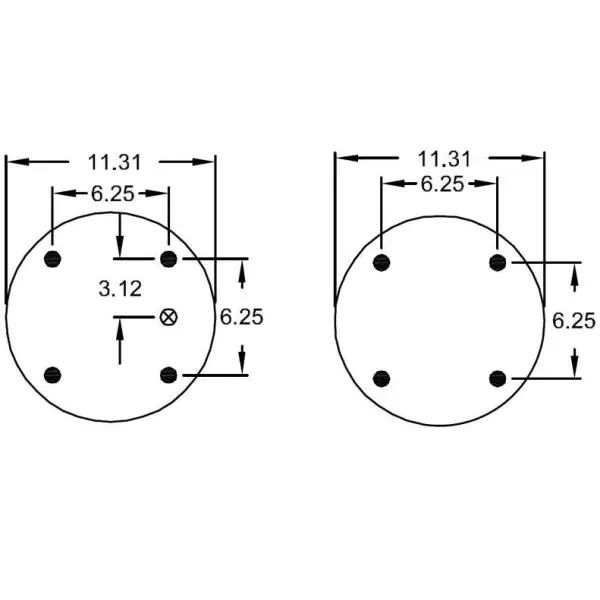

Top Plate Width: | 11.31" |
Piston Width: | 11.31" |
Weight: | 16.1 lbs |
Longest Side | 8.27 in. |
Median Side | 14.17 in. |
Shortest Side | 14.17 in. |
Weight | 18.10 lbs. |
