Trailer Air Spring
Alliance: | ABP N32 019974 |
Automann: | 566.ER9974, AB1DK23P-9974, 566.CT67586, AB1DK23M-A888 |
Contitech: | 67586, 9 10-17.5 A 930, 910-17 5A930 |
Firestone: | W01-358-9974 |
Goodyear: | 1R121048, 1R12-1048 |
Holland (Neway): | 90557332, 90557369 |
Meritor: | MAF9974, FS9974 |
Misc: | HDV9974, AS9974, AS-8930, 67587, AS99740, ASPR9M1759974, 72899 |
Neway: | 90557332, 905-57-332, 90557369 |
Triangle: | 8930, AS-8930, AS-8888 |

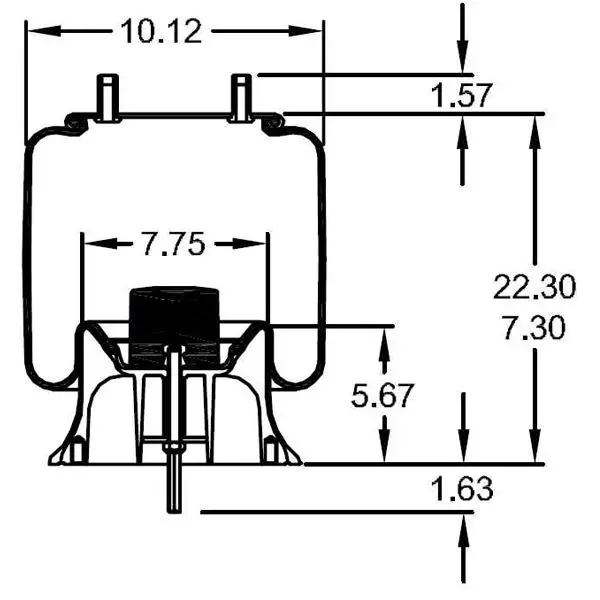

Extended Height: | 22.30" |
Compressed Height: | 7.30" |

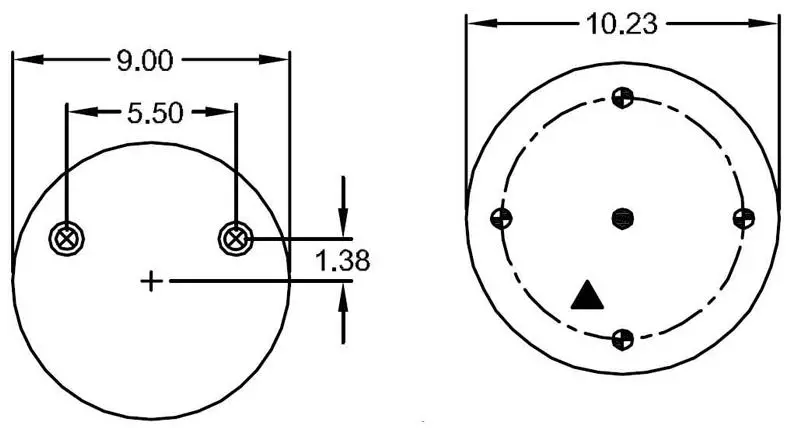

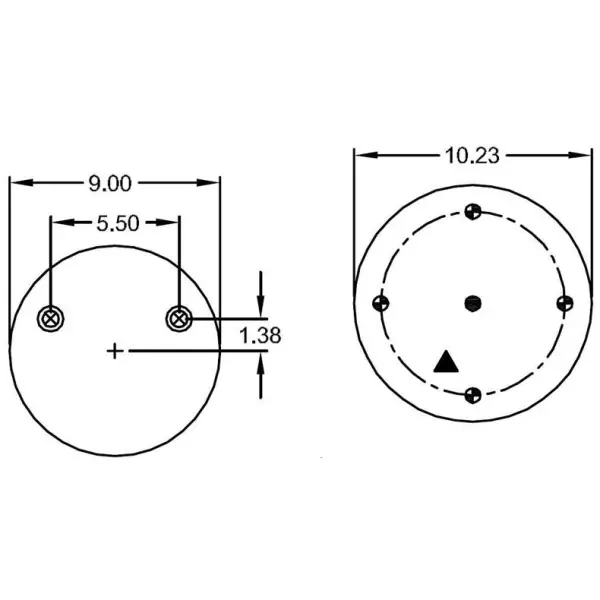

Top Plate Width: | 9.00" |
Piston Width: | 10.23" |
Weight: | 22.00 lbs |
Longest Side | 16.73 in. |
Median Side | 10.43 in. |
Shortest Side | 10.43 in. |
Weight | 21.55 lbs. |
