Air Spring for Hendrickson Trailer
| Contitech: |
161167, 64401, 9 10-17.5 P 436 |
| ContiTech: |
9 10.1-75 P 436 |
| Firestone: |
8944, W013588944, W01-358-8944, W013589015, W01-358-9015 |
| Goodyear: |
1R12271, 1R12-271, 1R12366, 1R12-366 |
| Hendrickson: |
C20217, C-20217, S20217, S-20217, S20217 (HT-190U) |
| Loadguard: |
SC2756 |
| Triangle: |
8436 |
| Extended Height: |
21.90" |
| Compressed Height: |
7.40" |

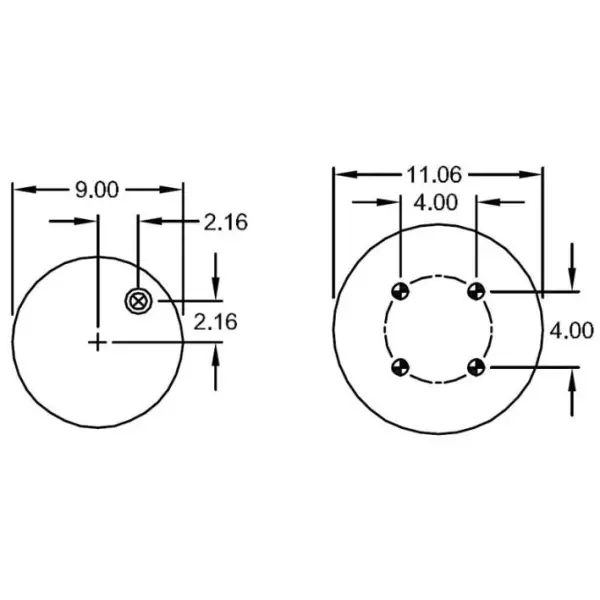

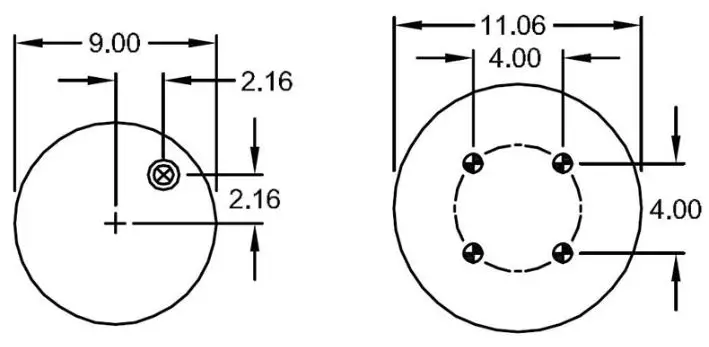

| Top Plate Width: |
9.00" |
| Piston Width: |
11.06" |
| Weight: |
15.4 lbs |
| Longest Side | 13.78 in. |
| Median Side | 11.02 in. |
| Shortest Side | 11.02 in. |
| Weight | 15.20 lbs. |
