Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223
Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223
Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223
Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223
Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223

Trailer Air Spring Replaces S-1245, S-365143, 1R12-132, 161223

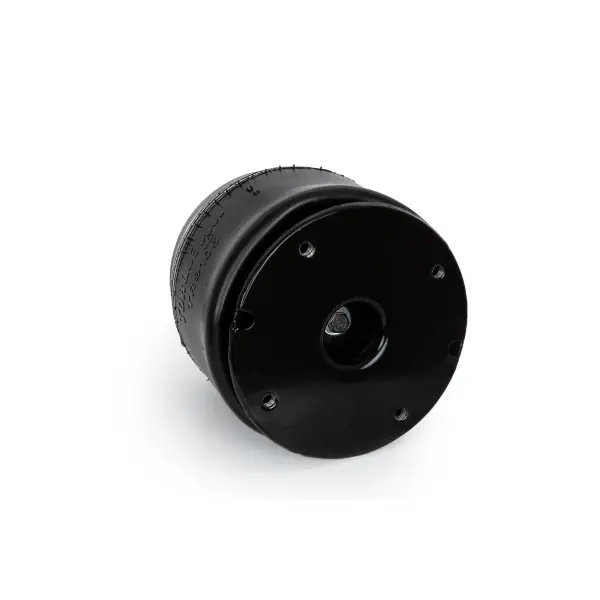

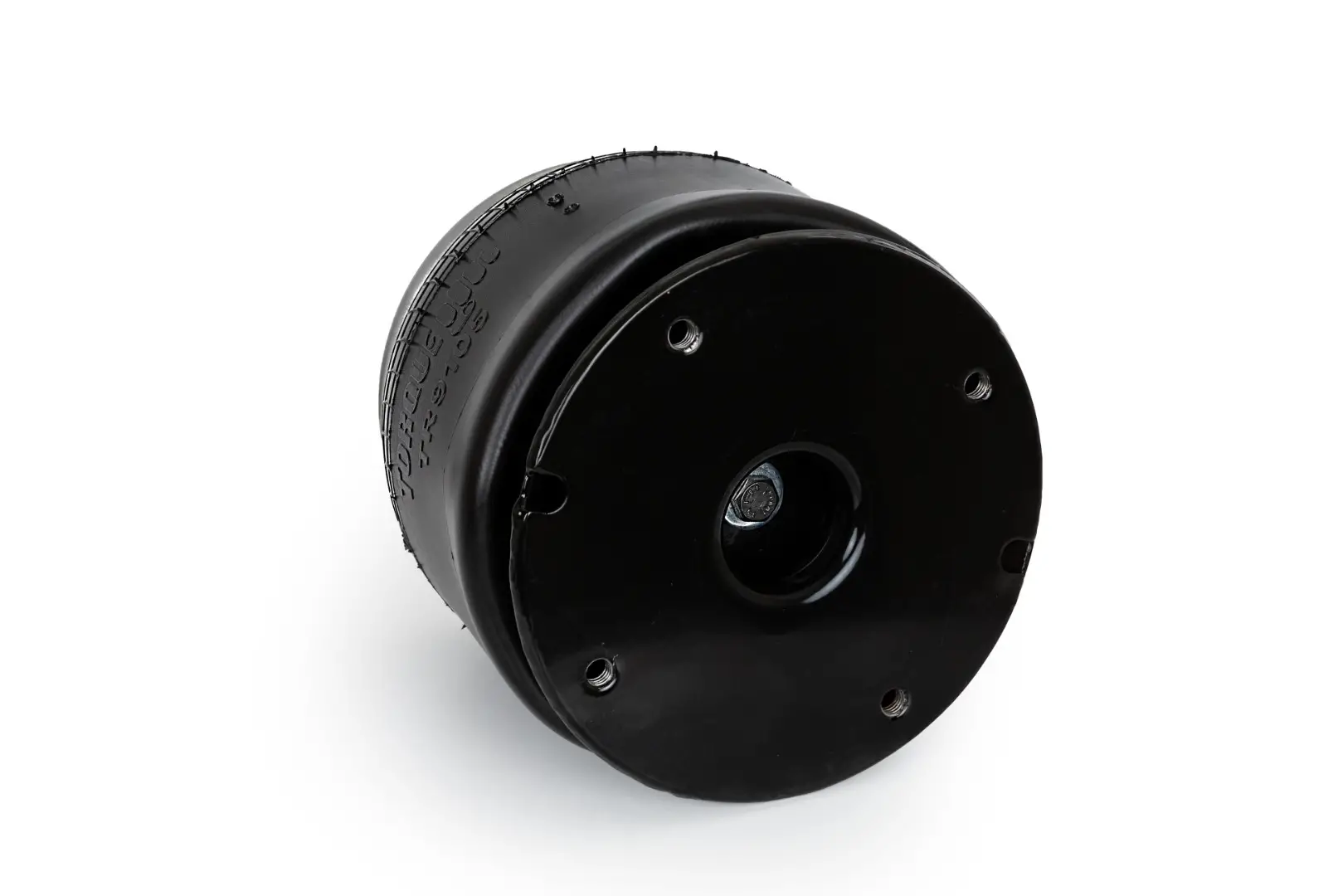

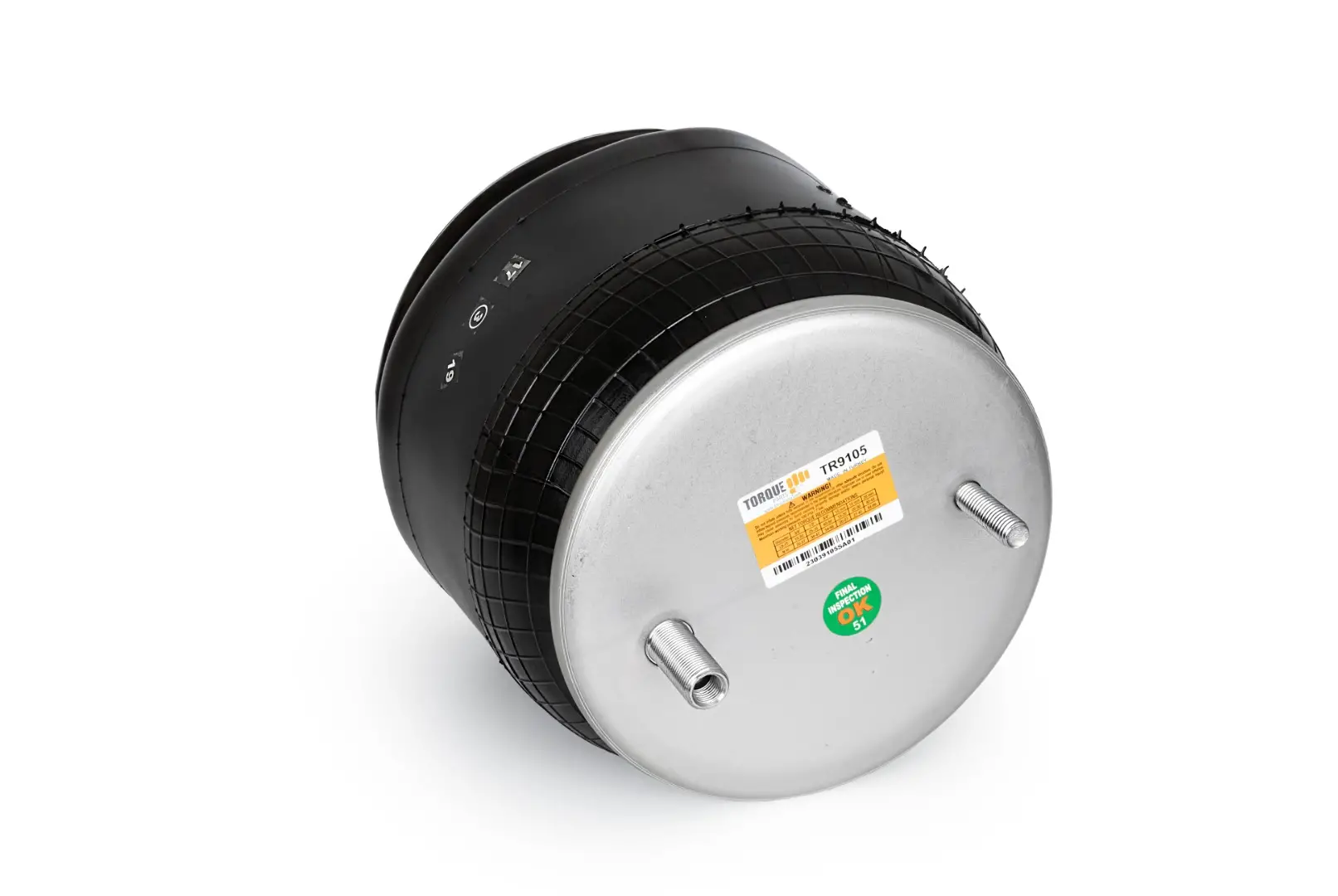

Description : Air Spring for Hendrickson

Part Number : TR9105

Click to see price

Air Spring for Hendrickson (Metal Base)

Bluebird: 90557038
Contitech: 161223, 64445, 9 10-12 P 319, 910-12A319, 910-16P333
Firestone: W013589105, W01-358-9105
Flxible Bus: 6336205, 6-336-205
Goodyear: 1R12132, 1R12-132, 1R12152, 1R12-152
Granning: 5065
Hendrickson: B1245, B-1245, B365143, S1245, S-1245, S-365143
IHC: 554770C1
Neway: 57009105
Reyco: 1577501, 5065
Ridewell: 1003589105C
Triangle: 8319,  AS-8319
Volvo/White: 3918334
Watson & Chalin: AS-0015
Watson&Chalin: AS0015

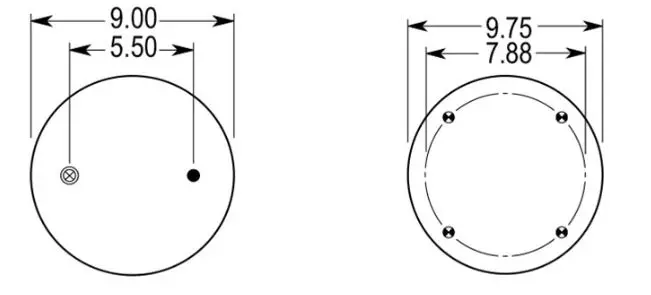

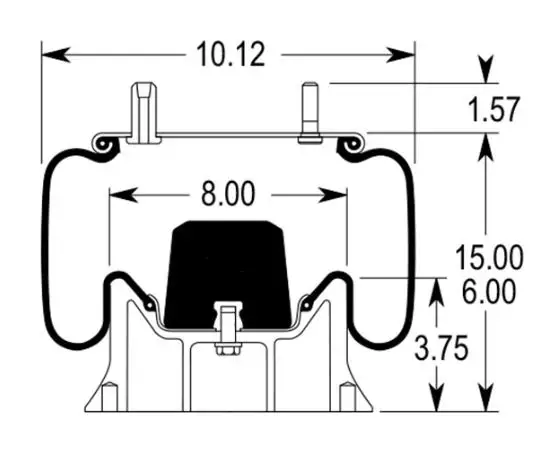

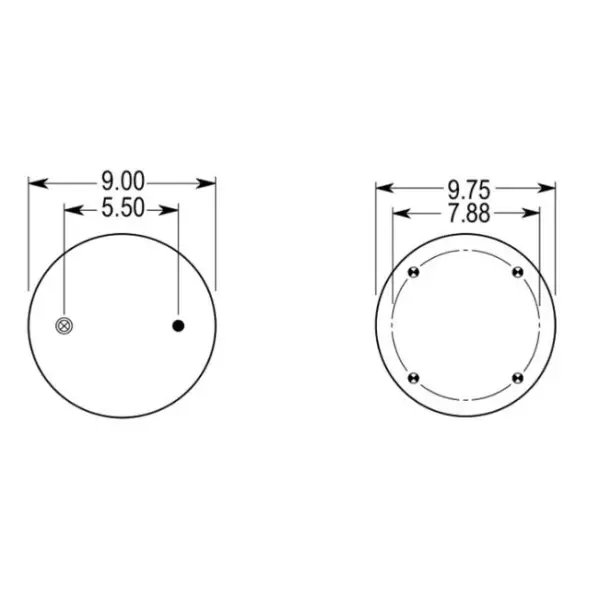

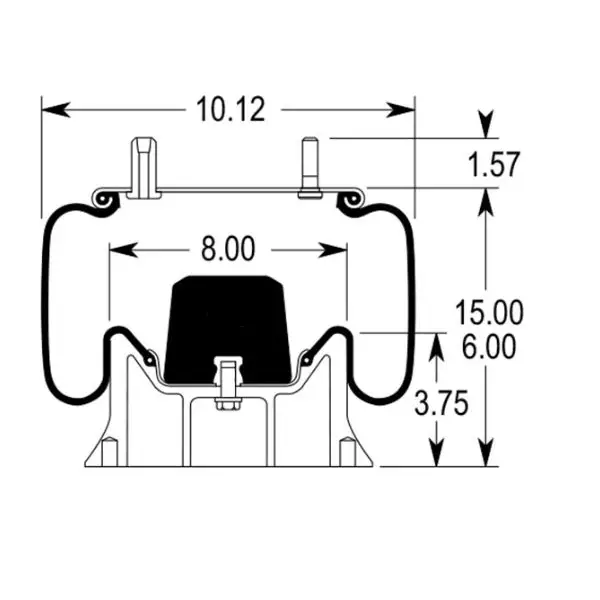

Extended Height:   15.00"
Compressed Height:   6.00"
Top Plate Width:   9.00"
Piston Width:   9.75"
Weight:   19.4 lbs
