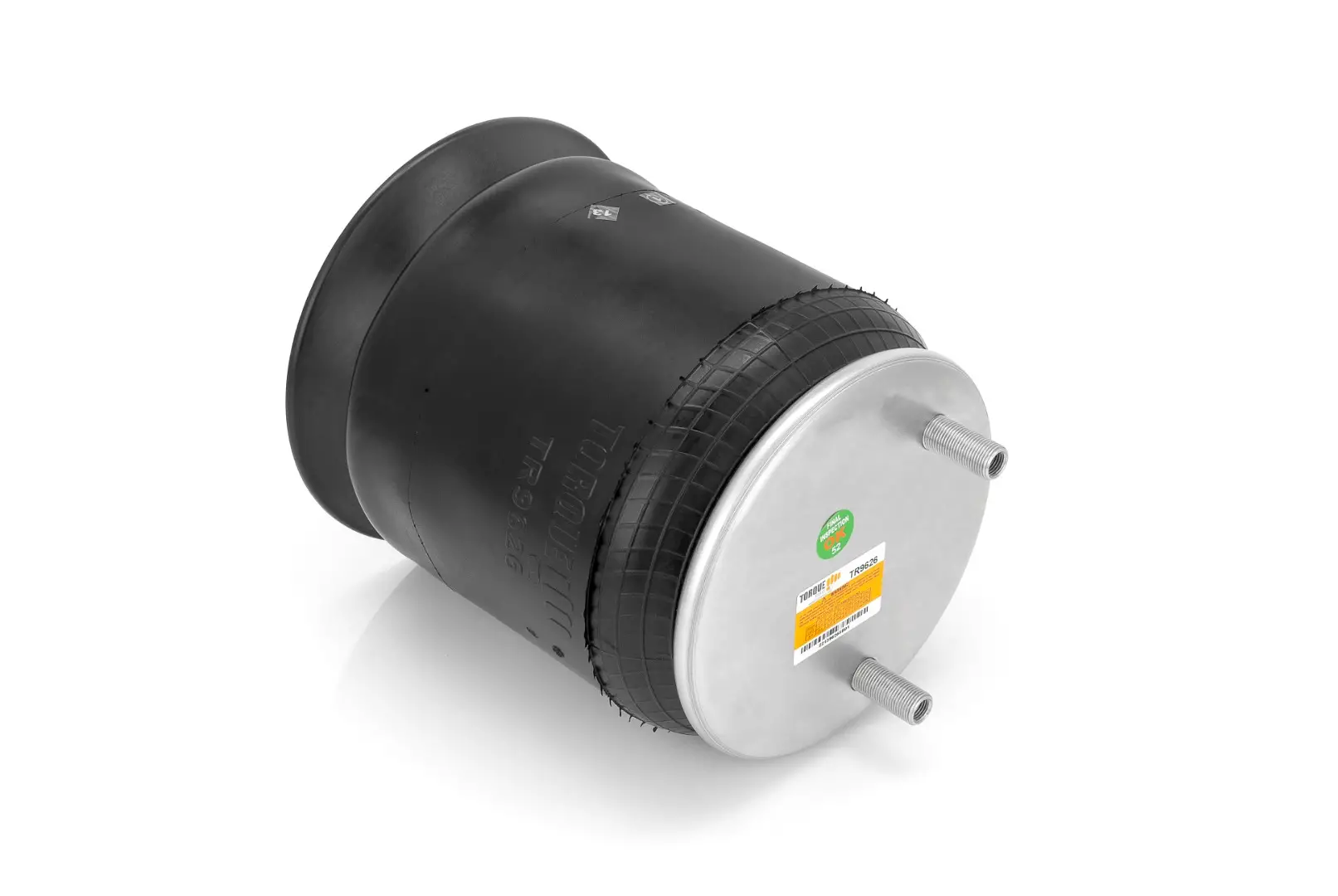

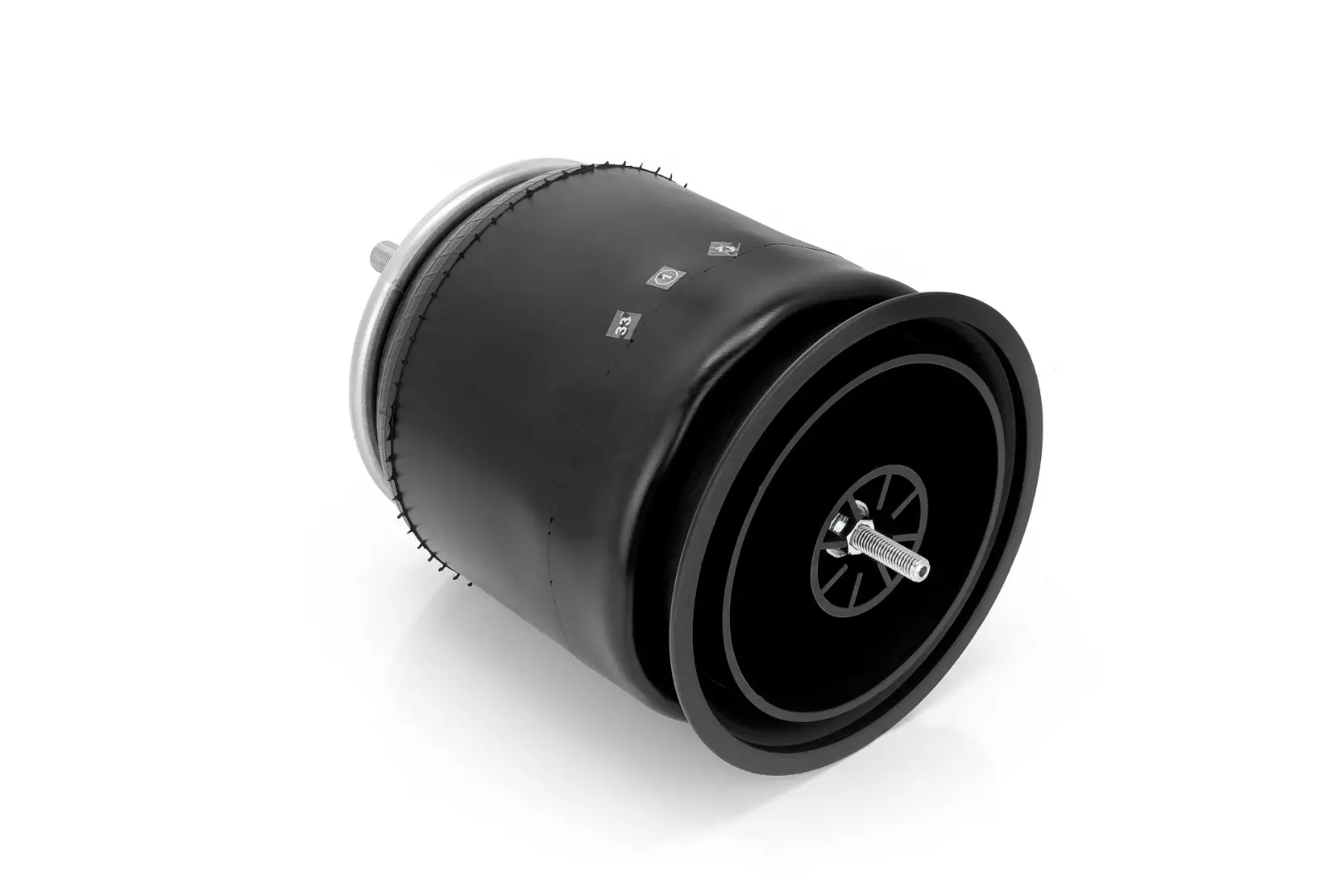

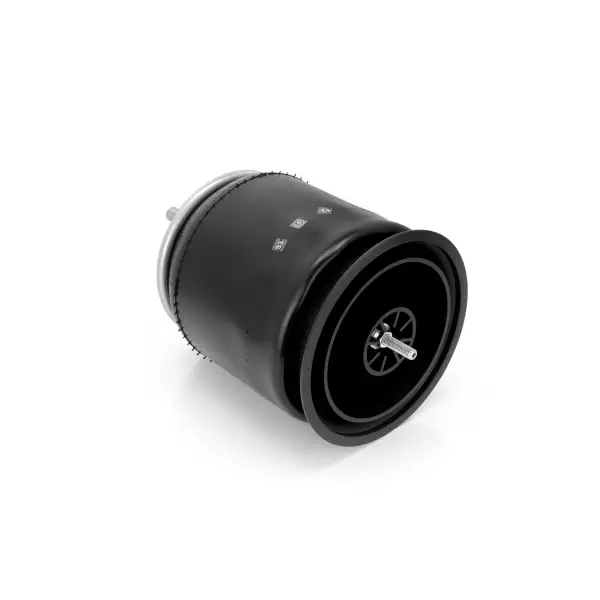

Trailer Air Spring
Contitech: | 64692, 99-16P568 |
Firestone: | 9626, W013589626, W01-358-9626, W014559626, W01-455-9626 |
Goodyear: | 1R11292, 1R11-292 |
Hendrickson: | S23720, S-23720, C-23720 |
Triangle: | 8568 |

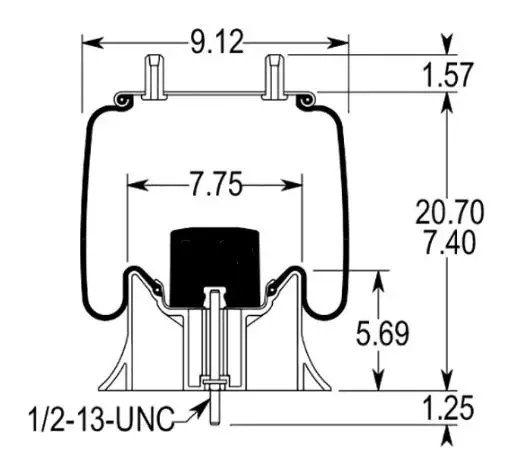

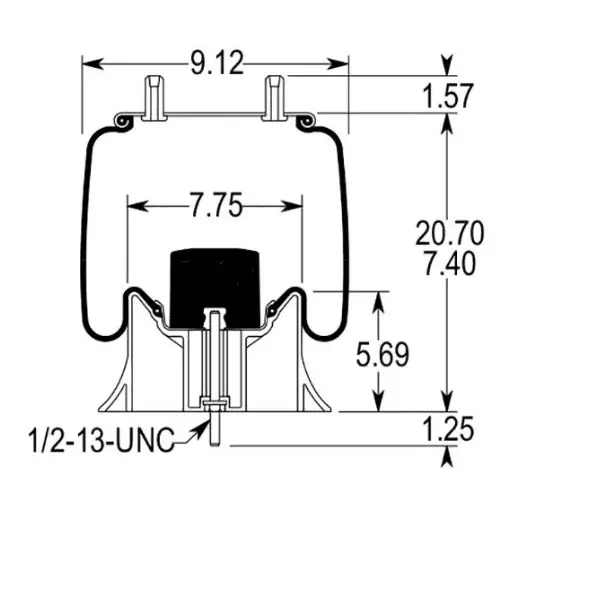

Extended Height: | 20.70" |
Compressed Height: | 7.40" |

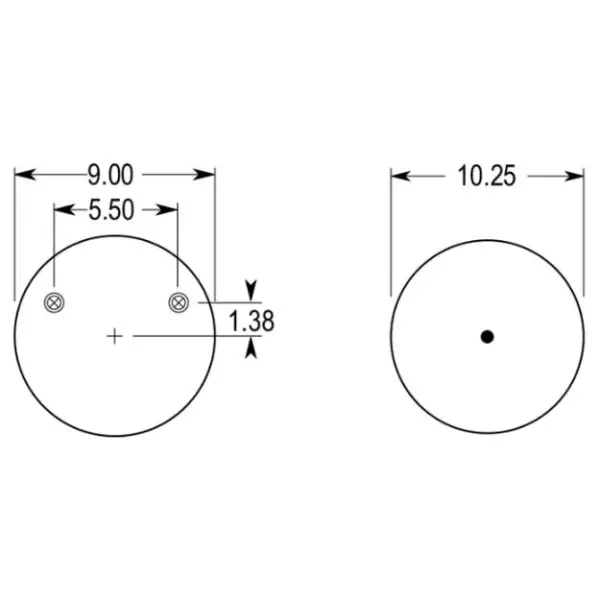

Top Plate Width: | 9.00" |
Piston Width: | 10.25" |
Weight: | 14.50 lbs |
Longest Side | 14.17 in. |
Median Side | 10.43 in. |
Shortest Side | 10.43 in. |
Weight | 15.27 lbs. |
