Trailer Air Spring
| Automann: | AB1DK28C-8617 |
| Contitech: | 10 10.5AV-12 P 513, 10 10.5C-13 P 1226, 64220, 75741, 77963, 10 10B-13 S 513 |
| Firestone: | 8729, W013588729, W01-358-8729 |
| Goodyear: | 1R13130, 1R13-130, 1R13261, 1R13-261 |
| Meritor: | 202796 |
| Neway: | G2298729200 |
| Paccar: | RL87290 |
| Triangle: | AS-8568 |

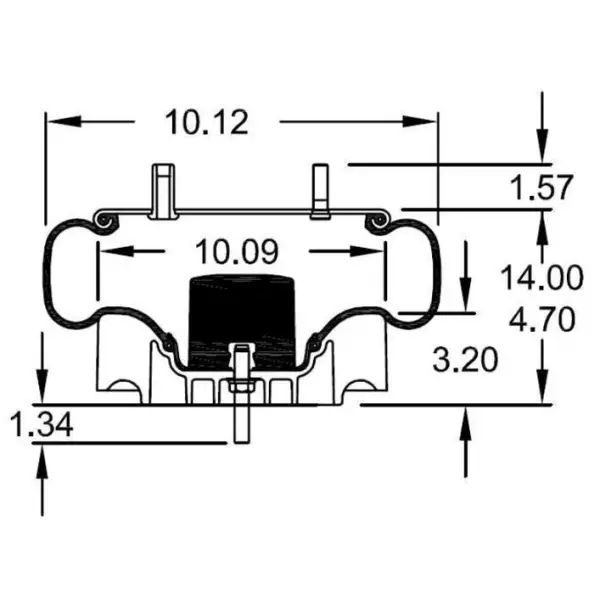

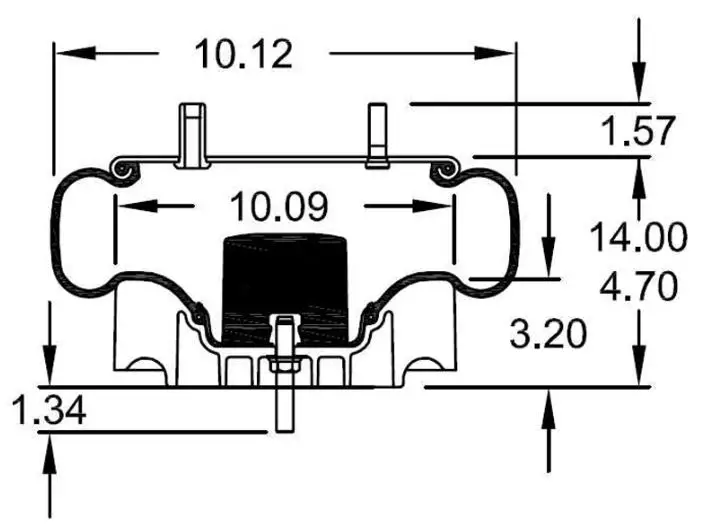

| Extended Height: | 14.00" |
| Compressed Height: | 4.70" |

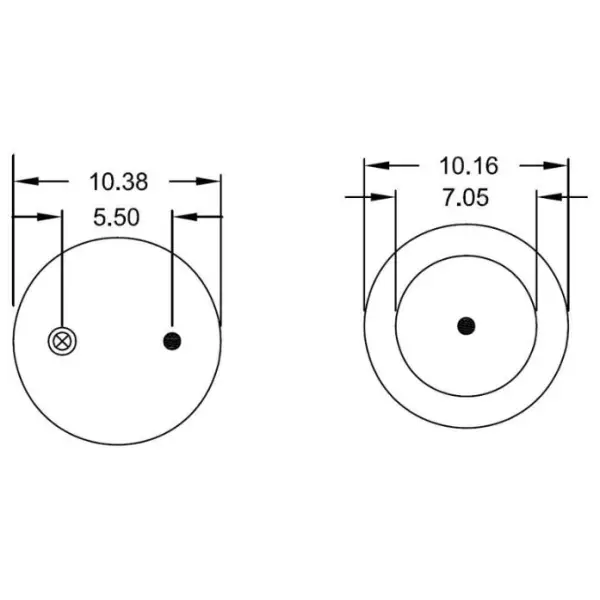

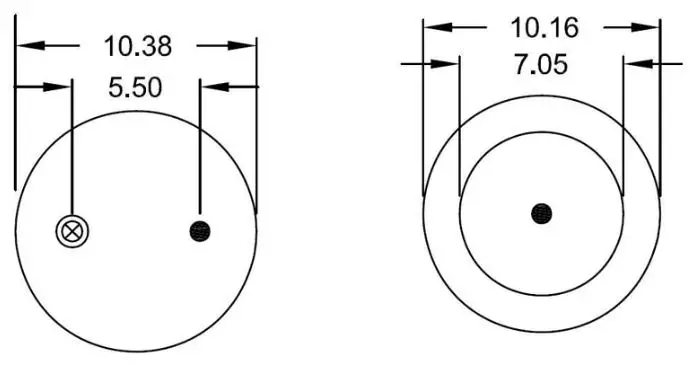

| Top Plate Width: | 10.38" |
| Piston Width: | 10.16" |
| Weight: | 13.0 lbs |
| Longest Side | 11.22 in. |
| Median Side | 11.22 in. |
| Shortest Side | 10.83 in. |
| Weight | 13.44 lbs. |
