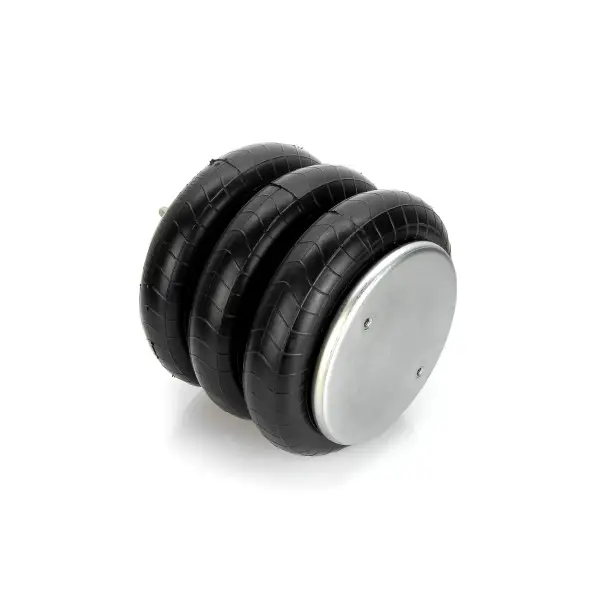

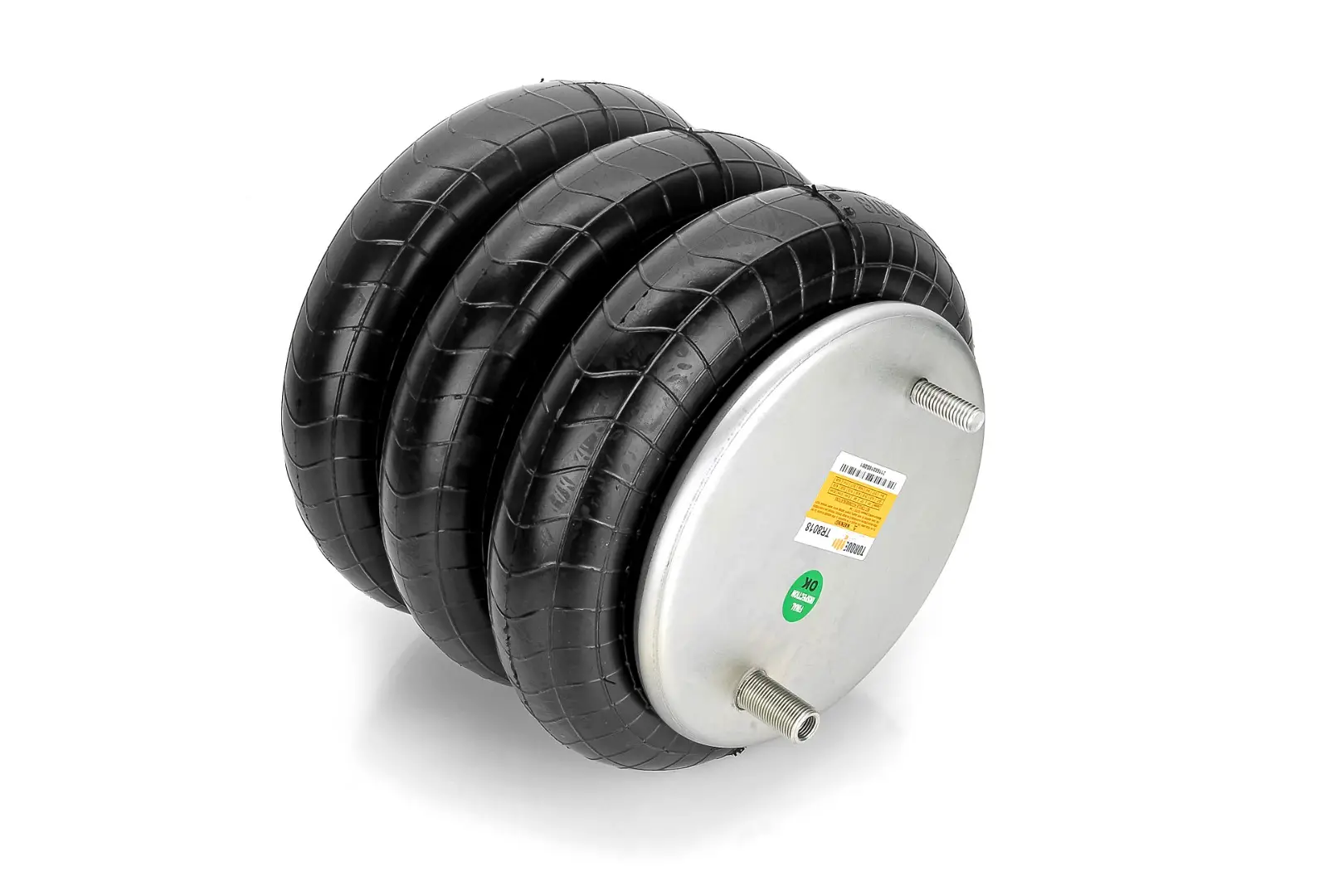

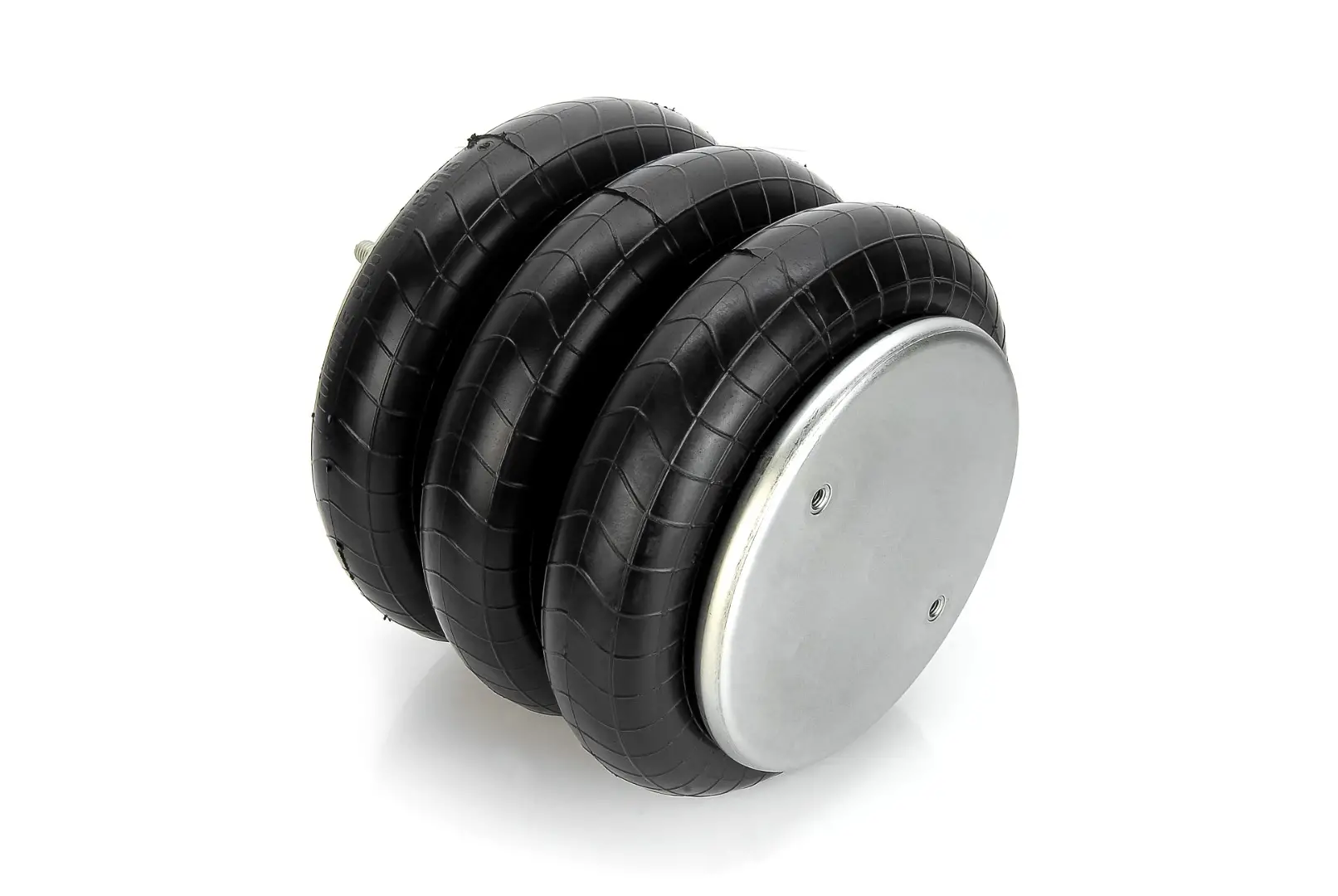

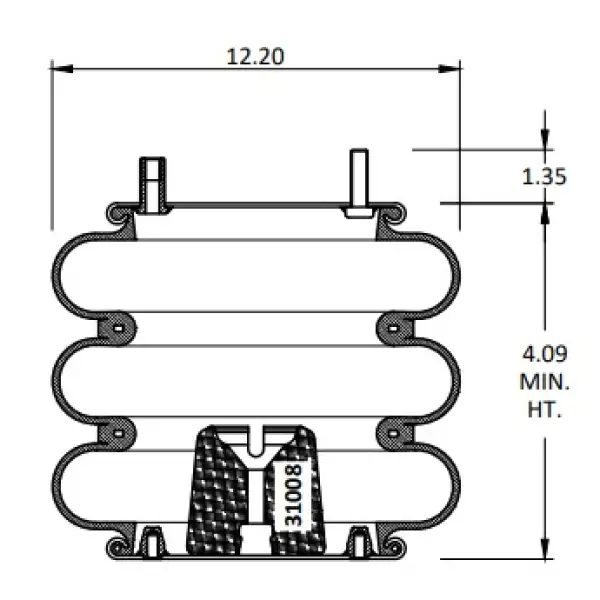

Convoluted Air Spring
| Automann: | ABSP3B22R-8027 |
| Contitech: | 64285, FT 330-29 434 |
| Firestone: | 8018, 8039, W01-358-8018 |
| Goodyear: | 3B12303, 3B12-303 |
| Reyco: | 93AR |
| Suspensions Inc: | 202394 |
| Triangle: | 4434, AS-4434, AS-4466 |

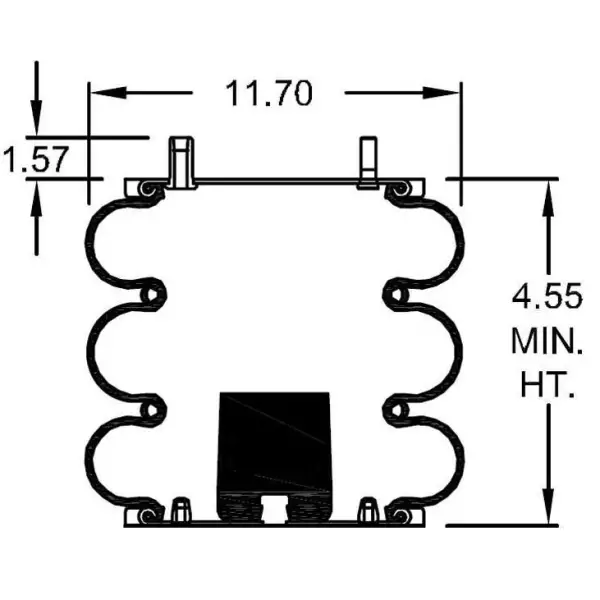

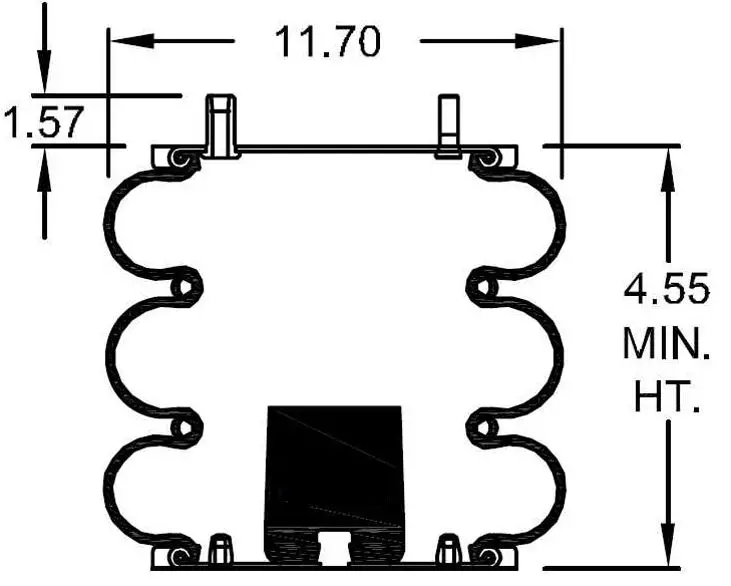

| Compressed Height: | 4.55" |

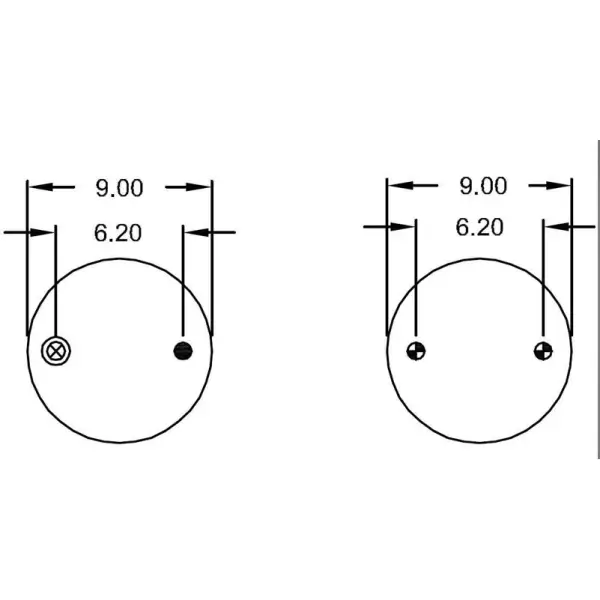

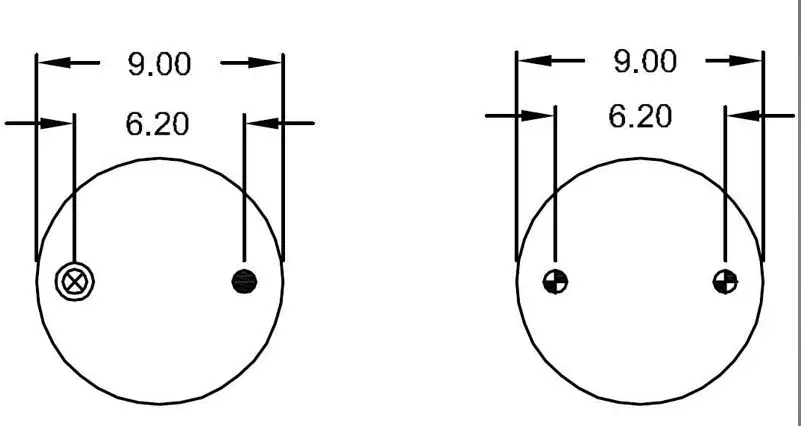

| Top Plate Width: | 9.00" |
| Piston Width: | 9.00" |
| Weight: | 15.4 lbs |
| Longest Side | 12.20 in. |
| Median Side | 12.20 in. |
| Shortest Side | 6.10 in. |
| Weight | 15.56 lbs. |
